Brand Name: | Yaskawa |
Model Number: | SGMDH-32A2A-YR13 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | in box |
Delivery Time: | 3-5days |
Payment Terms: | D/P, T/T, Western Union |
Supply Ability: | 100 |
Product Name: | Industrial Servo Motor SGM-A5A3G46 | Product: | Servo Motor |
---|---|---|---|
Model Number: | SGM-A5A3G46 | Efficiency: | 50W |
Current: | 0.6A | Ins: | B |
Speed: | 3000RPM | Ac Voltage: | 200V |

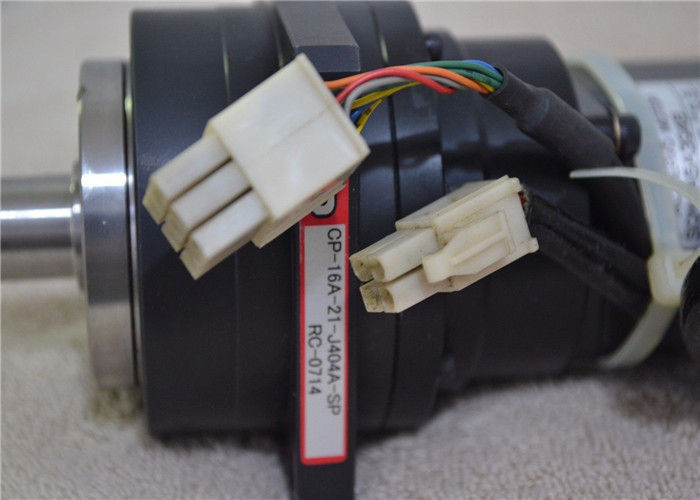

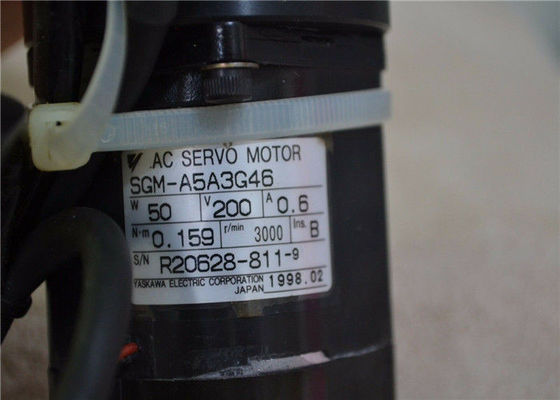

SGM-A5A3G46 Yaskawa Electric New and original 200V 3000rpm 0.6A 1 year warranty
QUICK DETAILS
Current: 0.6A
Volatge: 200V
Power : 50W
Rated Torque: 0.159N-m
Max speed: 3000rpm
Encoder: 17bit Absolute encoder
Load Inertia JL kg¡m2¢ 10−4: 0.026
Shaft: straight without key
100V Industrial Servo Motor
System Voltage |
Model Number SGMPH- |
Rated Output |
Rated Torque* |
Instantaneous Peak Torque* |
Continuous Rated Current |
Maximum Peak Current |
Rated Angular Acceleration |
||
W (hp) | oz • in | N • m | oz • in | N • m | ARMS | ARMS | rad/s2 | ||
100VAC | 01B | 100 (0.13) | 45.1 | 0.318 | 135 | 0.96 | 2.2 | 7.1 | 64800 |
02B | 200 (0.27) | 90.1 | 0.637 | 270 | 1.91 | 2.7 | 8.4 | 33000 | |
04A** | 400 (0.54) | 180 | 1.27 | 542 | 3.82 | 2.6 | 8 | 38500 |
The SGMPH Industrial Servo Motor series is a legacy product and no longer promoted in the Americas. It had an internal permanent magnet (IPM) design which reduced rotor inertia. This servo motor was well suited for highly dynamic, high power applications such as hydraulic system replacement. There were 5 sizes from 22 kW to 55 kW providing up to 6,120 lb-in (700 Nm) of peak torque. 400 volt windings were available with rated speeds of 1,500 rpm and maximum speeds of 2,000 rpm. A 131,072 ppr incremental serial encoder was standard.
