Place of Origin: | Japan |
Brand Name: | Mitsubishi |
Certification: | CE |
Model Number: | HG-SR202BJ |
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact us |
Packaging Details: | New Original Box |
Delivery Time: | 3-5days |
Payment Terms: | T/T |
Supply Ability: | 50 |
Model: | HG-SR202BJ | Brand: | Mitsubishi |
---|---|---|---|
Category: | Industiral Servo Motor | Rated Output Capacity: | 2KW |
Rated Rotation Speed: | 2000r/min | Input: | 3AC 150V 9.6A |

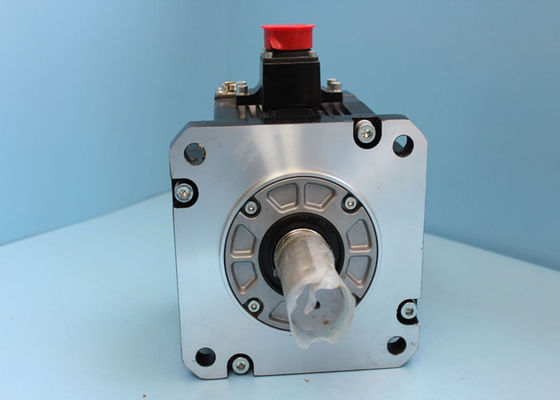

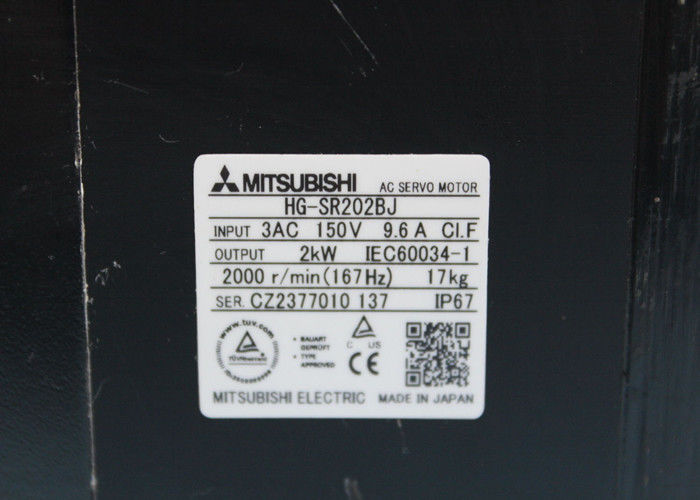

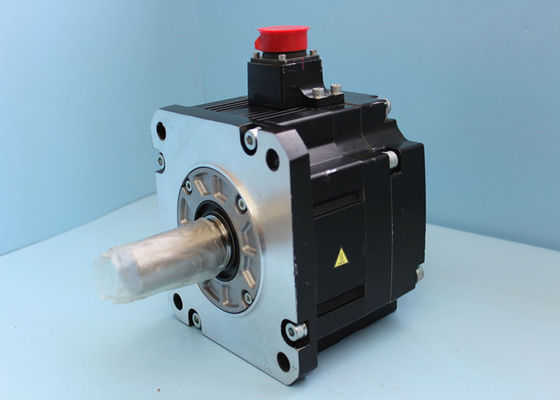

MITSUBISHI New Indutrial AC Servo Motor HG-SR202BJ 2KW Motors 3AC 9.6A 150V in Stock
Description:
HG-SR202BJ
Output :2.0 KW
Maximum torque :28.6 Nm
Rated Speed :2000 1/min
Max speed :3000 1/min
Rotor inertia Standard:0.00468-0.00565 kg.m²
Rated Current :9.6 A
Max. Current :31 A
Voltage :200 V
Related items
HG-SR202B
HG-SR202
HG-SR202K
HG-SR202BJ
HG-SR202BJK
HG-SR202JK
HG-SR202BK
HG-SR202BG1
HG-SR202BG1H
HG-SR Series AC servo motor
HG-SR52
HG-SR102
HG-SR152
HG-SR202
HG-SR352
HG-SR502
HG-SR702
Description
The MELSERVO MR-J4 series of servo amplifiers and the associated positioning units, simple motion modules and high-end motion control systems from Mitsubishi Electric enable machine builders and end customers to increase production safety and improve productivity.
The MR-J4 amplifier series has been developed for the automation requirements of tomorrow. Mitsubishi Electric has incorporated numerous innovative and user-friendly functions to minimise the time-consuming and elaborate matching of mechanical and electronic systems.
The absolute encoder which is fitted as standard has a resolution of 22 bits. This corresponds to more than 4 million pulses/revolution. The result is excellent true-running characteristics and a maximum positioning accuracy and processing speed which more than satisfy the performance requirements of modern high-end machines.
Highlights
* Single, dual and triple-axis amplifiers for improved economy, energy efficiency and cabinet space
* Operation of rotary motors, linear motors and direct drive motors with a single unit
* Safety at all times – STO (Safe Torque Off) and SS1 (Safe Stop 1) in accordance with EN 61800-5-2. SS2/SOS/SLS/SBC and SSM options available
Flexible motor selection
Another highlight of functionality and flexibility is the possibility of connecting different motors to the MR-J4 amplifier. The servo amplifier can be conveniently and easily used with rotary motors, linear motors and also direct drive motors.
User-friendly software
The MR Configurator2 programming tool allows convenient commissioning and diagnostics. Calibration, monitoring, diagnostics, reading and writing of parameters and test operation can be carried out easily on a standard PC. MR Configurator2 ensures a stable machine system, optimum control and short set-up times.
MR-J2S-10A/B + HC-KFS13/MFS13/UFS13
MR-J2S-20A + HC-KFS23/MFS23/UFS23
MR-J2S-40A + HC-KFS43/MFS43/UFS43
MR-J2S-60A + HC-SFS52
MR-J2S-70A + HC-KFS73/MFS73/UFS73
MR-J2S-100A + HC-SFS102
MR-J2S-200A + HC-SFS152
MR-J2S-350A + HC-SFS352
MR-J2S-500A + HC-SFS502
MR-J2S-700A + HC-SFS702
MR-J3-10A + HF-KP13/MP13
MR-J3-20A + HF-KP23/MP23
MR-J3-40A + HF-KP43
MR-J3-60A + HF-SP51/SP52
MR-J3-70A + HF-KP73/MP73
MR-J3-100A + HF-SP102
MR-J3-200A + HF-SP121/SP152/SP201
MR-J3-350A + HF-SP352
MR-J3-500A + HF-SP502
MR-J3-700A + HF-SP702
HC-KFS13G1 - Mitsubishi - Motors-AC Servo
HC-KFS13G1D - Mitsubishi - Motors-AC Servo
HC-KFS13G1K - Mitsubishi - Motors-AC Servo
HC-KFS13G2 - Mitsubishi - Motors-AC Servo
HC-KFS13G2D - Mitsubishi - Motors-AC Servo
HC-KFS13G2K - Mitsubishi - Motors-AC Servo
What is Details of Our Mitsubishi Parts?
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Drives and Motors.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
Liability:
WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is
compliance to their machinery.
