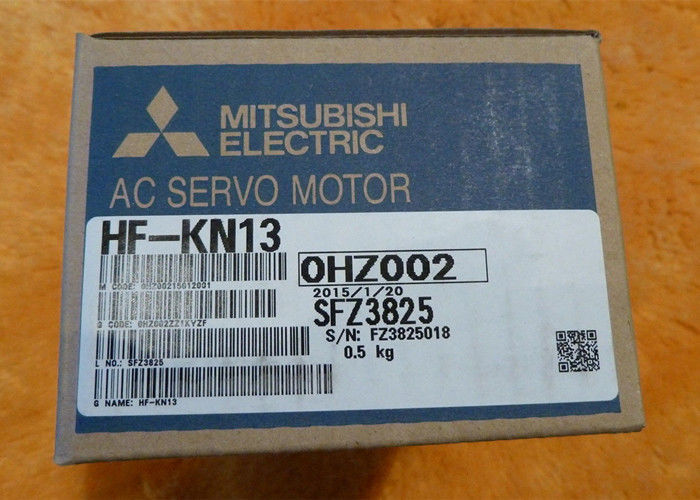

Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake

Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake

  • Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake
  • Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake
Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake
Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: HF-KN13
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: HF-KN13 Brand: Mitsubishi
Category: Industiral Servo Motor Series: HF-KN Series
Rated Output Power: 100W Rated Speed: 3000r/min

Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake



Introduction of Industrial Servo Motors





The servo motor with an electromagnetic brake can be used to prevent a drop in vertical lift applications or to ensure double safety at an emergency stop, for example. When operating the servo motor, supply power to the electromagnetic brake to release the brake. Switching power off enables the brake.

Though the brake lining may rattle during operation, it poses no functional problem. If braking sounds, it may be improved by setting the machine resonance suppression filter in the servo amplifier parameters. For details, refer to each servo amplifier instruction manual.

In addition to the straight shaft, the key shaft and D cut shaft are available as the servo motor shafts. The key shaft and D cut shaft cannot be used in very frequent start/stop applications. Since we cannot warrant the servo motor against fracture and similar accidents attributable to a loose key, use a friction coupling, etc. when coupling the shaft with a machine. The shaft shape of the standard servo motor changes depending on the series and capacity. Refer to the chapter of the servo motor series.







Models of HC-KFS Series Servo motors



HC-KFS053(B) HC-KFS053(B)G2 1/29 HC-KFS13(B)G5 1/11 HC-KFS053(B)G7 1/45
HC-KFS13(B) HC-KFS13(B)G2 1/5 HC-KFS13(B)G5 1/21 HC-KFS13(B)G7 1/5
HC-KFS23(B) HC-KFS13(B)G2 1/9 HC-KFS13(B)G5 1/33 HC-KFS13(B)G7 1/11
HC-KFS43(B) HC-KFS13(B)G2 1/20 HC-KFS13(B)G5 1/45 HC-KFS13(B)G7 1/21
HC-KFS73(B) HC-KFS13(B)G2 1/29 HC-KFS23(B)G5 1/5 HC-KFS13(B)G7 1/33
HC-KFS053(B)G1 1/5 HC-KFS23(B)G2 1/5 HC-KFS23(B)G5 1/11 HC-KFS13(B)G7 1/45
HC-KFS053(B)G1 1/12 HC-KFS23(B)G2 1/9 HC-KFS23(B)G5 1/21 HC-KFS23(B)G7 1/5
HC-KFS053(B)G1 1/20 HC-KFS23(B)G2 1/20 HC-KFS23(B)G5 1/33 HC-KFS23(B)G7 1/11
HC-KFS13(B)G1 1/5 HC-KFS23(B)G2 1/29 HC-KFS23(B)G5 1/45 HC-KFS23(B)G7 1/21
HC-KFS13(B)G1 1/12 HC-KFS43(B)G2 1/5 HC-KFS43(B)G5 1/5 HC-KFS23(B)G7 1/33
HC-KFS13(B)G1 1/20 HC-KFS43(B)G2 1/9 HC-KFS43(B)G5 1/11 HC-KFS23(B)G7 1/45
HC-KFS23(B)G1 1/5 HC-KFS43(B)G2 1/20 HC-KFS43(B)G5 1/21 HC-KFS43(B)G7 1/5
HC-KFS23(B)G1 1/12 HC-KFS43(B)G2 1/29 HC-KFS43(B)G5 1/33 HC-KFS43(B)G7 1/11
HC-KFS23(B)G1 1/20 HC-KFS73(B)G2 1/5 HC-KFS43(B)G5 1/45 HC-KFS43(B)G7 1/21
HC-KFS43(B)G1 1/5 HC-KFS73(B)G2 1/9 HC-KFS73(B)G5 1/5 HC-KFS43(B)G7 1/33
HC-KFS43(B)G1 1/12 HC-KFS73(B)G2 1/20 HC-KFS73(B)G5 1/11 HC-KFS43(B)G7 1/45
HC-KFS43(B)G1 1/20 HC-KFS73(B)G2 1/29 HC-KFS73(B)G5 1/21 HC-KFS73(B)G7 1/5
HC-KFS73(B)G1 1/5 HC-KFS053(B)G5 1/5 HC-KFS73(B)G5 1/33 HC-KFS73(B)G7 1/11
HC-KFS73(B)G1 1/12 HC-KFS053(B)G5 1/11 HC-KFS73(B)G5 1/45 HC-KFS73(B)G7 1/21
HC-KFS73(B)G1 1/20 HC-KFS053(B)G5 1/21 HC-KFS053(B)G7 1/5 HC-KFS73(B)G7 1/33
HC-KFS053(B)G2 1/5 HC-KFS053(B)G5 1/33 HC-KFS053(B)G7 1/11 HC-KFS73(B)G7 1/45
HC-KFS053(B)G2 1/9 HC-KFS053(B)G5 1/45 HC-KFS053(B)G7 1/21 HC-KFS46
HC-KFS053(B)G2 1/20 HC-KFS13(B)G5 1/5 HC-KFS053(B)G7 1/33 HC-KFS410







Model designation

Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake 0

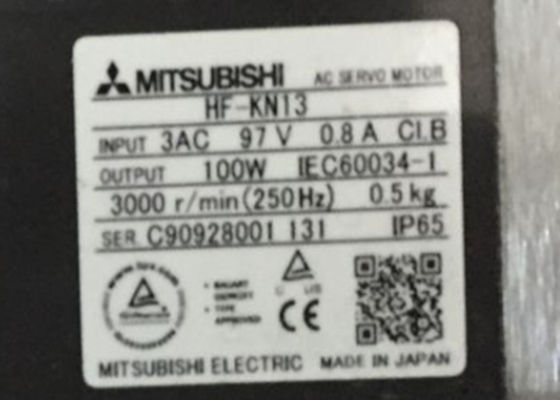

Rating Plate

Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake 1

Parts identification
Mitsubishi Electric Industrial Servo motor HF-KN13 100W 3AV 0.8A No electromagnetic brake 2
