Place of Origin: | Japan |
Brand Name: | OMRON |
Model Number: | R7D-BP02HH |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1 |

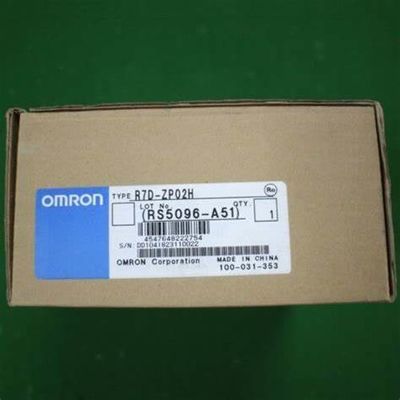

Packaging Details: | New in original boxRockwell Automation |
Delivery Time: | 5-8 work daysRockwell Automation |
Payment Terms: | T/T |
Supply Ability: | 1 |
Condition: | New | Rated Torque: | 1.3 Nm |
---|---|---|---|
Peak Torque: | 3.65 Nm | Warranty: | 1 Year |
Encoder Resolution: | 200 W | Flange Size Square (LC): | 80 Mm |
Shaft Diameter: | 14 Mm | Drive Supply Voltage: | Servo AC |

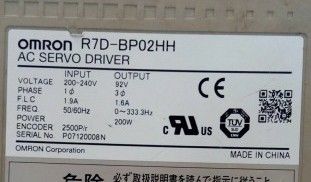

OMRON R7D-BP02HH Servo AC 200VAC Supply 1.6A 200V Load 200 W Chassis Mount
Product information OMRON R88D-GT01H :
• On-line Auto-tuning and Easy set up
• Ultra-compact size. The footprint is only 48% that of the SmartStep series
• Two torque limits
• Electronic gear, four internal speed settings and wide range of pulse settings
• Adaptive filters for suppresion of vibration and resonance
• Configuration and commissioning using CX Drivesoftware
Another module:
Same series of R88 - :
R88D-GN04H-ML2 : G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W
R88M-G40030H-BS2 : G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake
R88M-G40030H-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector
R88M-G40030T-BS2: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake
R88M-G40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
R88M-GP40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
Details:
Similar Model Products:
Specifications | Model | |
---|---|---|
Power Model Supply Voltage | Applicable Servomotor Capacity | |
Single-phase 100 VAC |
50 W | R88D-KTA5L |
100 W | R88D-KT01L | |
200 W | R88D-KT02L | |
400 W | R88D-KT04L | |
Single-phase/three-phase 200 VAC |
100 W | R88D-KT01H |
200 W | R88D-KT02H | |
400 W | R88D-KT04H | |
750 W | R88D-KT08H | |
1 kW | R88D-KT10H | |
1.5 kW | R88D-KT15H | |
Three-phase 200 VAC |
2 kW | R88D-KT20H |
3 kW | R88D-KT30H | |
5 kW | R88D-KT50H | |
7.5 kW | R88D-KT75H | |
15 kW | R88D-KT150H | |
Three-phase 400 VAC |
600 W | R88D-KT06F |
1 kW | R88D-KT10F | |
1.5 kW | R88D-KT15F | |
2 kW | R88D-KT20F | |
3 kW | R88D-KT30F | |
5 kW | R88D-KT50F | |
7.5 kW | R88D-KT75F | |
15 kW | R88D-KT150F |
Motor capacity | Gear Ratio | Model (Straight shaft) |
---|---|---|
50 W | 1/5 | R88G-HPG11B05100B |
1/9 | R88G-HPG11B09050B | |
1/21 | R88G-HPG14A21100B | |
1/33 | R88G-HPG14A33050B | |
1/45 | R88G-HPG14A45050B | |
100 W | 1/5 | R88G-HPG11B05100B |
1/11 | R88G-HPG14A11100B | |
1/21 | R88G-HPG14A21100B | |
1/33 | R88G-HPG20A33100B | |
1/45 | R88G-HPG20A45100B | |
200 W | 1/5 | R88G-HPG14A05200B |
1/11 | R88G-HPG14A11200B | |
1/21 | R88G-HPG20A21200B | |
1/33 | R88G-HPG20A31400B | |
1/45 | R88G-HPG20A45200B | |
400 W | 1/5 | R88G-HPG14A05400B |
1/11 | R88G-HPG20A11400B | |
1/21 | R88G-HPG20A21400B | |
1/33 | R88G-HPG32A33400B | |
1/45 | R88G-HPG32A45400B | |
750 W (200 V) |
1/5 | R88G-HPG20A05750B |
1/11 | R88G-HPG20A11750B | |
1/21 | R88G-HPG32A21750B | |
1/33 | R88G-HPG32A33750B | |
1/45 | R88G-HPG32A45750B | |
750 W (400 V) |
1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG32A211K5B | |
1/33 | R88G-HPG32A33600SB | |
1/45 | R88G-HPG50A451K5B | |
1 kW | 1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG32A211K5B | |
1/33 | R88G-HPG50A314K0B | |
1/45 | R88G-HPG50A451K5B | |
1.5 kW | 1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG32A211K5B | |
1/33 | R88G-HPG50A314K0B | |
1/45 | R88G-HPG50A451K5B | |
2 kW | 1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG50A212K0B | |
1/33 | R88G-HPG50A314K0B | |
3 kW | 1/5 | R88G-HPG32A053K0B |
1/11 | R88G-HPG50A113K0B | |
1/21 | R88G-HPG50A213K0B | |
4 kW | 1/5 | R88G-HPG32A054K0B |
1/11 | R88G-HPG50A115K0B | |
5 kW | 1/5 | R88G-HPG50A055K0B |
1/11 | R88G-HPG50A115K0B |
