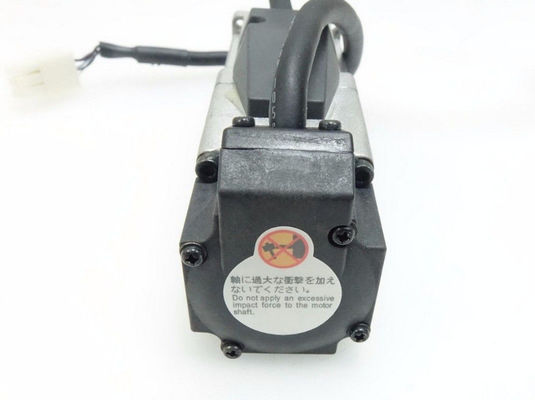

Name: MUMA012P1T PANASONIC Minas E 1.89 inch Incremental servo motor 100W
Brand: PANASONIC
SKU: MUMA012P1T
Rating: 4.8 (115 reviews)

Home Products Industrial Servo Motor

MUMA012P1T PANASONIC Minas E 1.89 inch Incremental servo motor 100W

Product Details:

Place of Origin:	Japam
Brand Name:	PANASONIC
Model Number:	MUMA012P1T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	D/P, T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Product Name:	Industrial Servo Motor MUMA012P1T	Product:	Servo Motor
Model Number:	MUMA012P1T	Efficiency:	400W
Current:	2.6A	Ins:	B
Speed:	3000RMP	Ac Voltage:	200V

MUMA012P1T PANASONIC Minas E 1.89 inch Incremental servo motor 100W

QUICK DETAILS OF Industrial Servo Motor

Part Number MUMA012P1T

Product Servo Motor

Product name MINAS E series Servo Motor

Features Compact Servo Only for Position Control.

Part Number MUMA012P1T

Type Ultra low inertia

Enclosure IP65

About Enclosure Except rotating portion of output shaft and leadwire end.

Environmental Conditions For more details, please refer to the instruction manual.

Voltage specifications 200 V

Rated output 100 W

Rated current (A (rms)) 1.0

Holding brake with

Mass (kg) 0.70

Oil seal without

Shaft Key-way, center tap

Rated torque (N ⋅ m) 0.32

Momentary Max. peak torque (N ⋅ m) 0.95

Regenerative brake frequency (times/min) Without option :No limit

With option :No limit

Option (External regenerative resistor) Part No. : DV0P2891

About regenerative brake frequency Note) 1. Regenerative brake frequency represents the frequency of the motor's stops from the rated speed with deceleration without load.

⋅ If the load is connected, frequency will be defined as 1/( m + 1 ), where m = ( load moment of inertia ) / ( rotor moment of inertia ).

⋅ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to the square of ( running speed / rated speed ).

⋅ Power supply voltage is AC115 V ( at 100 V of the main voltage ). If the supply voltage fluctuates, frequency is in inverse proportion to the square of ( Running supply voltage /115 ) relative to the value in the table.

⋅ When regeneration occurs continuosly such cases as running speed frequently changes or vertical feeding, consult us or a dealer.

Note) 2. If the effective torque is within the rated torque, there is no limit in regenerative brake.

Rated rotational speed (r/min) 3000

Rated rotational Max. speed (r/min) 5000

Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.036

Recommended moment of inertia ratio of the load and the rotor 30 times or less

About recommended moment of inertia ratio of the load and the rotor Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value.

Rotary encoder: specifications 2500 P/r Incremental

Rotary encoder: Resolution 10000

100V Industrial Servo Motor

System Voltage	Model Number SGMPH-	Rated Output	Rated Torque*		Instantaneous Peak Torque*		Continuous Rated Current	Maximum Peak Current	Rated Angular Acceleration
		W (hp)	oz • in	N • m	oz • in	N • m	ARMS	ARMS	rad/s2
100VAC	01B	100 (0.13)	45.1	0.318	135	0.96	2.2	7.1	64800
	02B	200 (0.27)	90.1	0.637	270	1.91	2.7	8.4	33000
	04A**	400 (0.54)	180	1.27	542	3.82	2.6	8	38500

■Adaptive filter
●Makes the notch filter frequency automatically follow the machine resonance frequency.
●Suppression of "Judder" noise of the machine can be expected which is caused by variation of the machines or resonance frequency due to aging.
■2-channel notch filters
●2-channel notch filters are equipped in the driver independent from adaptive filter.
●You can set up both frequency and width for each of 2 filters, and set up frequency in unit of 1Hz.
●Suppression of "Judder" noise of the machine .
