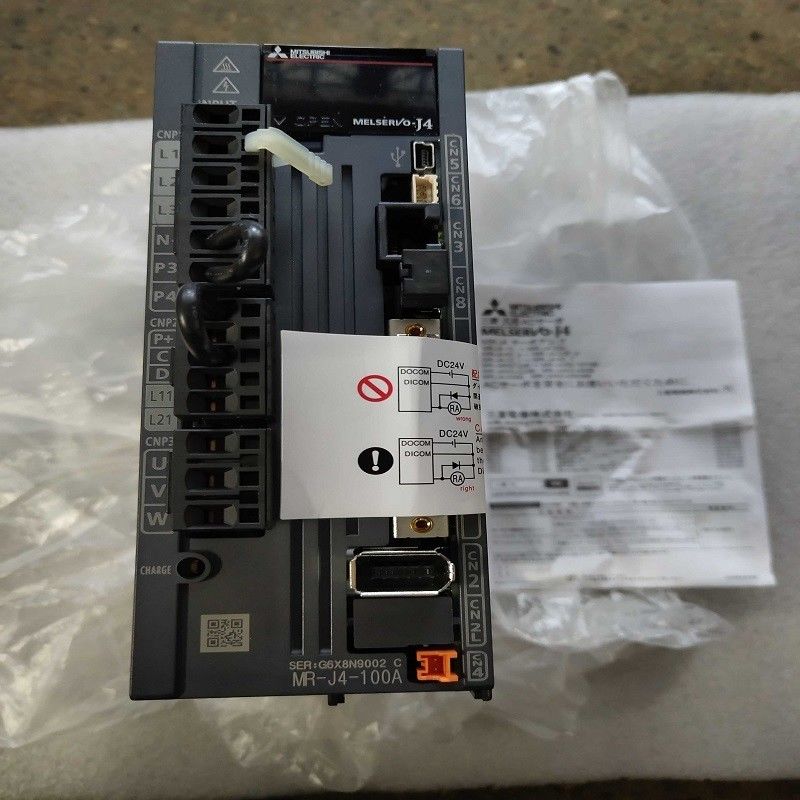

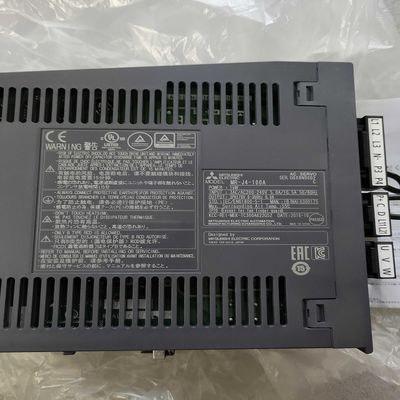

AC220V Industrial Servo Drives 0.75KW MR-J4-100A 50Hz Mitsubishi Servo Amplifier

Mitsubishi Servo Amplifier MR-J4-100A Industrial Servo Drives AC200 V ~ 240 V, 50 Hz / 60 Hz

Product Specifications:

• Series name : MELSERVO-J4 series

• Command interface : General-purpose interface

• Voltage class : 200V

• Motor rated output [KW] : 0.75

• Servo amplifier form name : MR-J4-70A

• Rated current [A] : 5.8

• Voltage and frequency (Note 1) : Three-phase or single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz

• Rated current (Note 14) [A] : 3.8

• Allowable voltage fluctuation : Three-phase or single-phase AC170 V ~ 264 V

• Allowable frequency fluctuation : Within ± 5%

• Voltage and frequency : Single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz

• Rated current [A] : 0.2

• Allowable voltage fluctuation : Single-phase AC170 V ~ 264 V

Environmental condition :

Ambient temperature : Operation: 0 ° C ~ 55 ° C (no freezing), storage: -20 ° C ~ 65 ° C (no freezing)

Ambient humidity : Operation / storage: 90% RH or less (non-condensing)

Atmosphere : Indoors (no direct sunlight), that there is no corrosive gas, flammable gas, oil mist, dust and dirt

elevation : Above sea level 2000 m or less (Note 18)

Vibration resistance : 5.9 m / s 2, 10 Hz ~ 55 Hz (X, Y, Z each direction)

Safe performance :-

Third party certification standards : EN ISO 13849-1 Category 3 PL e, IEC 61508 SIL 3, EN 62061 SIL CL 3, EN 61800-5-2 (Note 20)

Response performance : 8 ms or less (STO input off → energy cut-off)

Test pulse input (STO) (Note 7) : Test pulse interval: 1 Hz ~ 25 Hz, test pulse off time: Up to 1 ms

Expected average dangerous failure time (MTTFd) : MTTFd ≧ 100 [year] (314a)

Diagnostic coverage (DC) : DC = medium (Medium), 97.6 [%]

The average probability of a dangerous failure (PFH) : PFH = 6.4 × 10 -9 [1 / h]

Overseas Compliance : The correspondence to the international standards and laws

Structure (protection grade) :- : A little over cold, open (IP20)
