• Technical Specifications for 1326AB-B515E-21-K5

•

  Manufacturer Rockwell Automation
  Brand Allen-Bradley
  Part Number/Catalog No. 1326AB-B515E-21-K5
  Product Type Servo Motor
  Voltage 460/380V AC
  Frame Diameter 149 mm
  Rated Motor Speed 3000 rpm



  Flange and Shaft Series IEC Metric Flange with Keyway
  Motor Rated Torque 10.4 Nm
  Motor Rated Output 2.3 kW
  System Continuous Torque 10.4 Nm
  System Peak Stall Torque 31.2 Nm
  Standard Option 13.6 Nm Holding Brake w/ 24V DC Coil
  Product Lifecycle Status* Discontinued/Obsolete

•

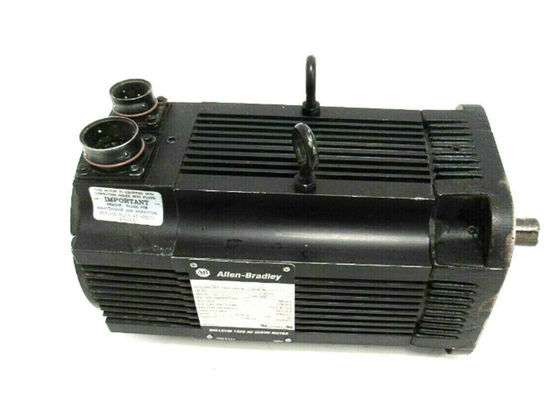

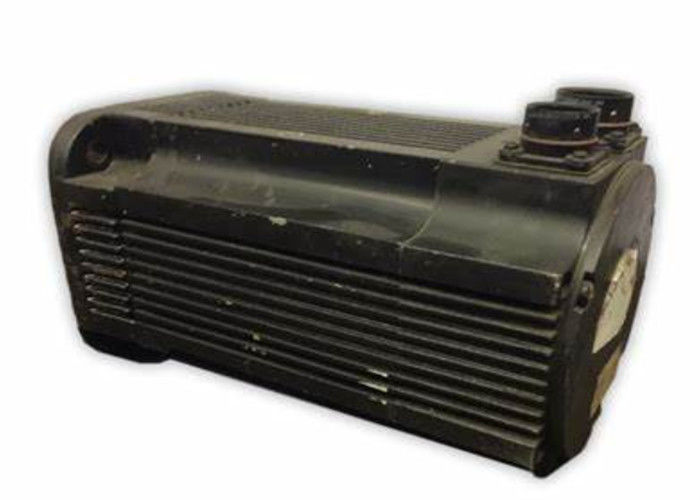

  About 1326AB-B515E-21-K5

•



  The Allen-Bradley 1326AB-B515E-21-K5 is a ferrite AC Servo Motor that comes with a voltage rating of 460V AC, as well as rated speeds of 2500 rpm at 380V AC and 3000 rpm at 460V AC. Both its system and motor rated torques are 92 pounds on the inch or 10.4 N-m and it has a 2.3 kW motor rated output. If connected to a 1394-AM07 axis module, this motor has a 25.6 N-m system peak stall torque, 15 A system peak stall current, 6.1 system continuous stall current, and a 7.7 N-m system continuous torque. But when used with the AM04 axis module, the 1326AB-B515E-21-K5 motor has a 15.4 N-m system peak stall torque, 9 A system peak stall current, and a 4.5 A system continuous stall current.





  This motor also has a frame diameter of 149 mm, a bolt center of 165 mm, and a magnet stack length of 1.5 inches, as well as an IEC metric flange with a keyway for this motor’s shaft and mounting. To mount the 1326AB-B515E-21-K5 motor, make sure that it is mounted vertically and with its shaft either up or down. Also found on this motor is a three-phase sinusoidally-wound stator field capable of transferring the heat from the motor to the ambient temperature and it results in improved operations at low speeds, an enclosure rating of IP65, and a TENV-constructed aluminum housing with fins installed to aid in cooling. The 1326AB-B515E-21-K5 motor is only compatible with 230V AC Digital AC Servo Drives from the 1391 series that have high-performance motions.

•
