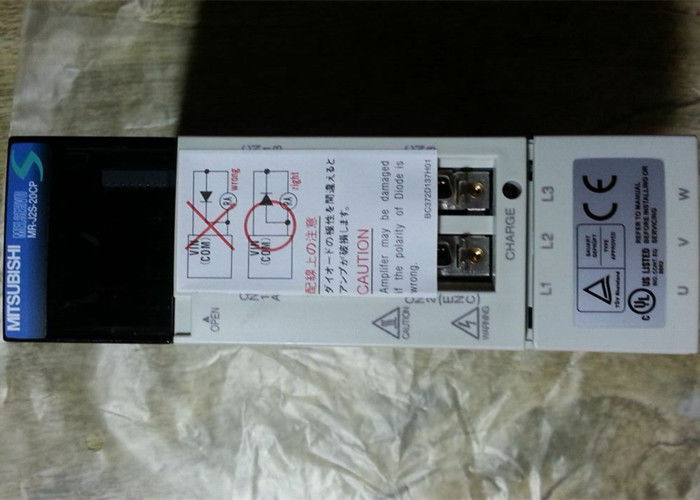

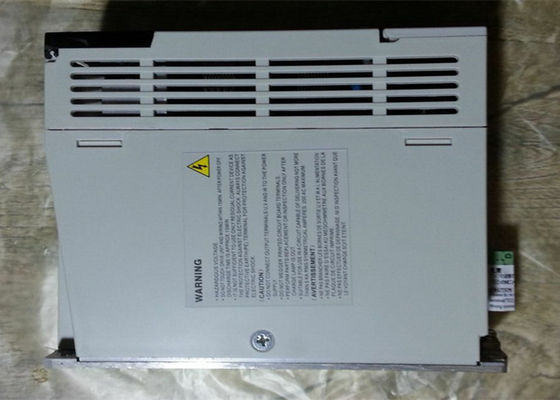

MITSUBISHI 200W Industrial AC Driver MR-J2S-20CP J2-Super Series Servo Amplifier New

Details:

Brand: MITSUBISHI
Name: Built in positioning function servo amplifier
Model: MR-J2S-20CP
MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.2kw.
Built in positioning function.
Voltage: 3 phase AC200VAC or single phase AC230V.
Super function, excellent performance.
High performance CPU integration, greatly improve product responsiveness.
Due to the application of high performance CPU, so that the response can be greatly improved.
Speed loop frequency response increased to more than 550HZ.
MR-J2-Super series is the best device for high speed positioning applications.
Easy adjustment.
Model adaptive control / advanced real time automatic tuning.

Motor series: ultra low inertia, low power.
Rated output power: 0.2kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft keyway: (open slot).
Protection level: IP55 does not include the shaft part and the connector.
Features: ultra low inertia is suitable for high frequency operation.
Application examples: the insertion device, the assembly machine MITSUBISHI MR-J2S-20CP.
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series MR-J2S-20CP

Introduction

The MR-J2S-CP AC servo amplifier with built-in positioning functions is the MR-J2S-A general-purpose AC servo amplifier which incorporate single-axis positioning functions. These functions perform positioning operation by merely setting the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. to point tables as if setting them in parameters. The servo amplifier is the most appropriate to configure a program-free, simple positioning system or to simplify a system, for example. There are 3 points of point tables as standard, and they can be increased up to 31 points by using the MR Configurator (servo configuration software). You can choose a configuration suitable for your purpose, e.g. simple positioning system using external I/O signals (DI/O), operation using DI/O and RS-422 serial communication, or multi drop operation using RS-422 serial communication. All servo motors are equipped with an absolute position encoder as standard. An absolute position detection system can be configured by merely adding a battery to the servo amplifier. Once the home position has been set, home position return is not required at power on, alarm occurrence, etc. The MR-J2S-CP AC servo amplifier with positioning function is made easier to use and higher in function by using it with the MR Configurator (servo configuration software).

• MDS and MR Series AC Servo Drives
• MDS and FR Series AC Spindle Drives
• FR Series General Purpose Inverters and Braking Modules
• HA / HC / HF / HP / HS Series AC Servo Motors
• SJ Series AC Spindle Motors
• CNC Boards
• Power Supplies

Mitsubishi MR-J2S Series Servo Drive

Nameplate





Model







• All the Mitsubishi Parts are new and original with package.
• Warranty time: 180 or 360 days.

Good Service in WTL:

> Please send your RFQ to get the latest price.

> Normally, we will ship the items in 1-2 weeks after receive the payment.

> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
