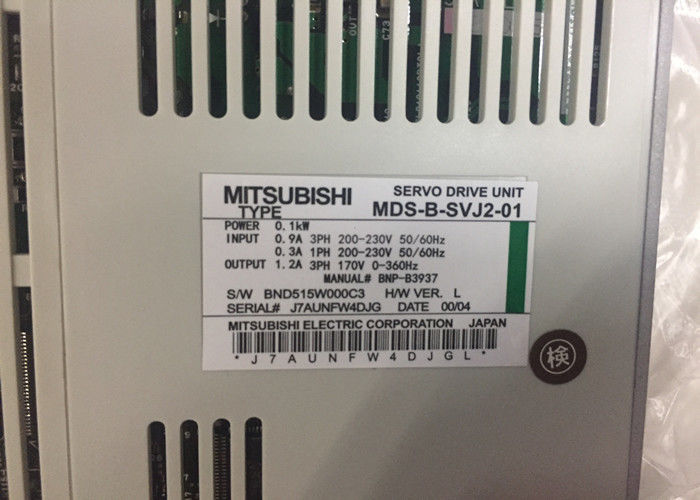

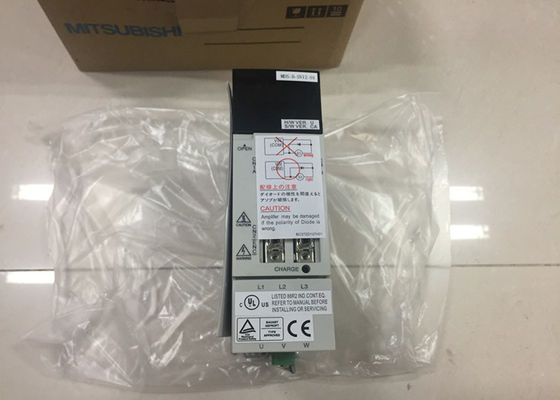

Mitsubishi Electric Drives MDS-B-SVJ2-01 Industrial AC Servo Motor Drive Unit 0.1KW 0.9A

Introduction of Industrial Servo Drive MDS-B-SVJ2

This manual contains points to change and examine when replacing the MDS-A-SVJ Series servo drive unit with the MDS-B-SVJ2 Series servo drive unit. In replacing, also refer to Specifications and Instruction Manual (BNP-B3937).
(Note) The software version of MDS-B-SVJ2 to which this manual (BNP-B2202B) applies is version C0 or later.

Features of Industrial Servo Drive MDS-B-SVJ2

The MDS-B-SVJ2 Series servo drive unit is for NC, which was developed as the successor model to the MDS-A-SVJ Series. It has such features as below compared with SVJ.

1. CE Marking compliant (Compliant to European Safety Standard)
2. Installation convertibility with all the capacities of the SVJ series
3. New model, HC motor supported
4. 100,000 pulse ENC supported (OSA104,OSE104)
5. Standard regenerative resistor is integrated in drive unit (All capacities other than 100W)
6. Possible to integrate the battery for the absolute positioning system (MR-BAT) in drive unit (Battery unit is also possible to use.
7. By wiring the control power supply separately, possible to break the power supply for the main circuit by contactor
8. New functions added (External observer, overshoot compensation, adoptive filter, etc)
9. Motor brake and contactor control sequence output (DO output)
