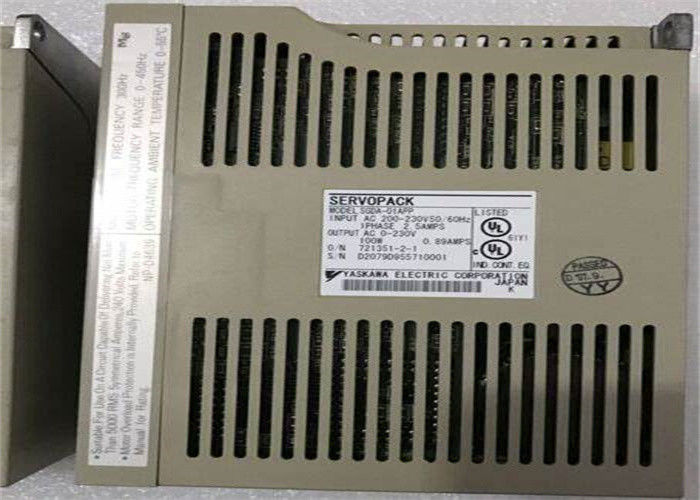

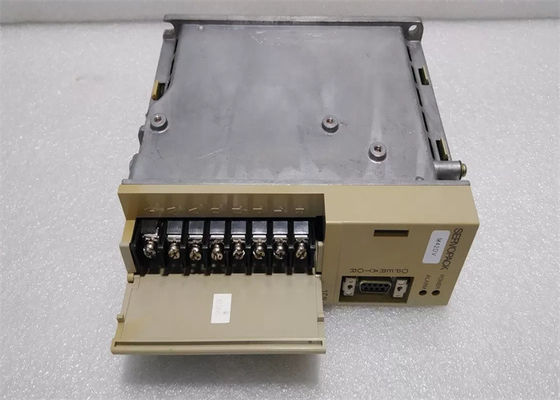

Brand New Yaskawa SGDA-01APP AC SERVO Amplifier In original Box
Description:
Brand: Yaskawa
Model Number: SGDA-01APP
Type: Servo Amplifier
Voltage: 200-230V
Power: 100W
Warranty: 1 Year
| Description |
SGDA-01APP is a Drives-AC Servo produced by Yaskawa |
| Servo Amplifier Type |
SGDA |
| Rated Output |
100W (0.13HP) |
| Supply Voltage |
200V |
| Model |
Position Control (Digital Input) |
| Factory setting of applicable motor type |
SGMP Servomotor |
| Modification type |
None |
Rated torque: M / 17N.
Servo motor outside diameter size: 290mm.
Serial encoder: 20 bit absolute value type (absolute value of 1 circles) (standard).
Design sequence: the size of the outer diameter of the service motor is marked as E model.
Flange specifications: face C, reverse load side (lead).
Optional specifications: no matching.
Under the condition of no speed reducer, the load is directly driven.
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 6 ~ 600N / m, maximum speed: 250 ~ 500r/min).
By using 20 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.
Use example:
Semiconductor manufacturing equipment.
Liquid crystal circuit board manufacturing equipment.
Various inspection and test equipment.
Electronic part packaging machine.
IC information processor.
IC inspection equipment.
A variety of automated machinery.
Robot.
Small capacity ratings and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC200V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: A.
Insulation withhstand voltage: AC1500V 1 minutes SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Protection mode: fully enclosed self cooling type IP42 (except for the rotating part of the output shaft).
The use of environmental humidity: 20 ~ 80%% (not dew) SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation.
