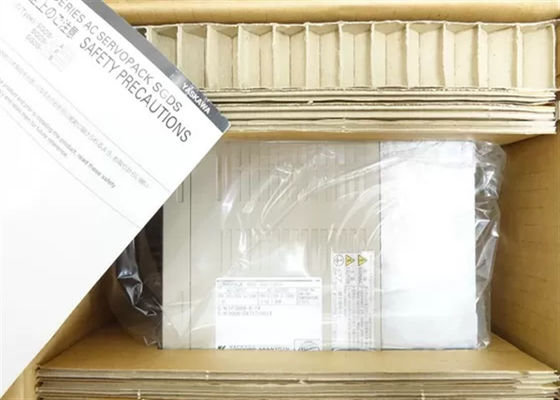

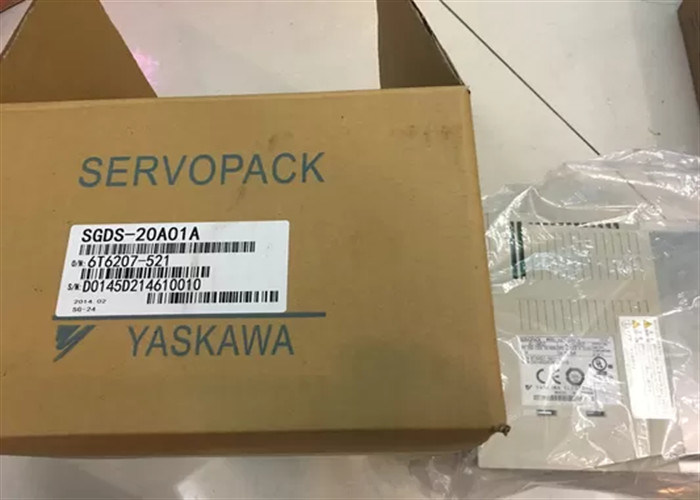

Yaskawa SGDS-20A01A AC Servo Amplifier 230V Voltage In Original
Description:
| Description |
SGDS-20A01A is a Drives-AC Servo produced by Yaskawa |
| Servo Amplifier Type |
SGDS Sigma III |
| Rated Output |
2.0kW |
| Supply Voltage |
200V |
| Interface Specification |
Analog and pulse train (Standard) |
| Designed Order |
A |
| Mounting method |
Blank : Base-mounted |
Descriptions Of SGDS-20A01A
Yaskawa SGDS-20A01A Product information and technical parameters:
Brand: Yaskawa
Name: Servo Amplifier
Model: SGDS-20A01A
Power: 2kw.
Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
In order to achieve a higher production efficiency, SGDS type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance
Servo motor SGMGH type.
Rated speed: 1500r/min
Friction compensation function.
Even when the load fluctuation, the gain can be suppressed without changing the position deviation.
Therefore, the overshoot can be suppressed to ensure the stability of the device.
Feature tracking control.
Even the lower mechanical properties, but also the characteristics of the mechanical recovery,
Make the mechanical properties of the control action, thereby reducing the time to adjust the time Equipped with DeviceNet communication function type servo unit (external power supply drive type)
Maximum applicable motor capacity: 2kw.
Power supply voltage: single phase AC200V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): paint.
Matching (software): standard.
Matching (parameter): standard.
Optional modules: DeviceNet module (external power driver).
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit arre connected through the communication network, the connection is greatly saved SGDS-20A01A
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function SGDS-20A01A.
