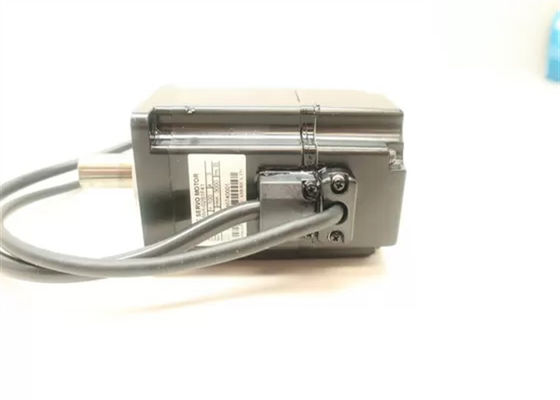

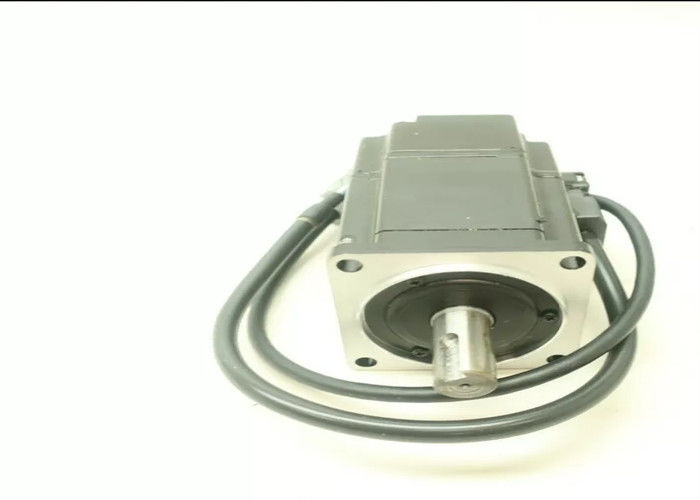

Yaskawa SGMAH-02BBAB1 200V AC Servo Motor Brand New In Original

Yaskawa SGMAH-02BBAB1 200V AC Servo Motor Brand New In Original

Description:

Yaskawa Product information and technical parameters:

Brand: Yaskawa
Name: Servo Motor
Model: SGMAH-02BBAB1
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.2kw.
Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with DC24V brake.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.

Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Servo motor SGMAH type.
Rated speed: 1500r/min.

Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlLarge capacity servo unit SGMAH-02BBAB1

Friction compensation function.
Even when the load fluctuation, the gain can be suppressed without changing the position deviation.
Therefore, the overshoot can be suppressed to ensure the stability of the device.
Feature tracking control.
Even the lower mechanical properties, but also the characteristics of the mechanical recovery,

Make the mechanical properties of the control action, thereby reducing the time to adjust the timeEquipped with DeviceNet communication

Matching (parameter): standard.

Optional modules: DeviceNet module (external power driver).
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.

Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.

Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
