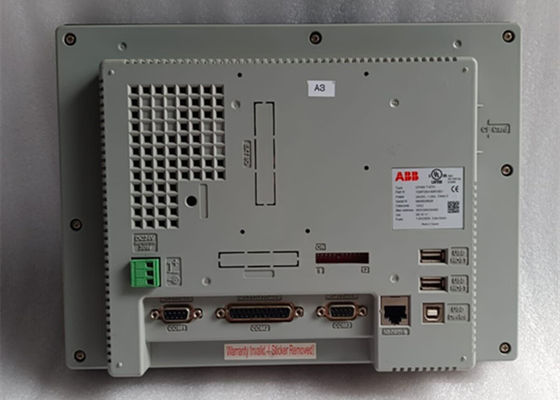

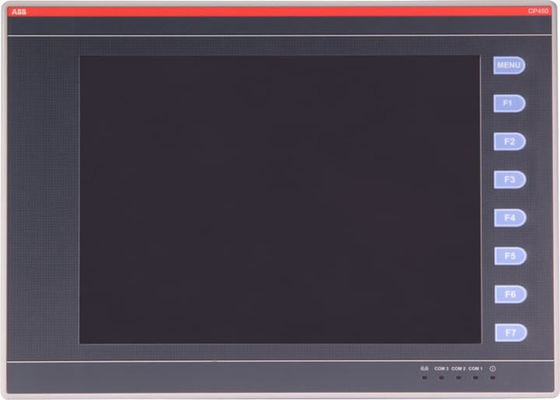

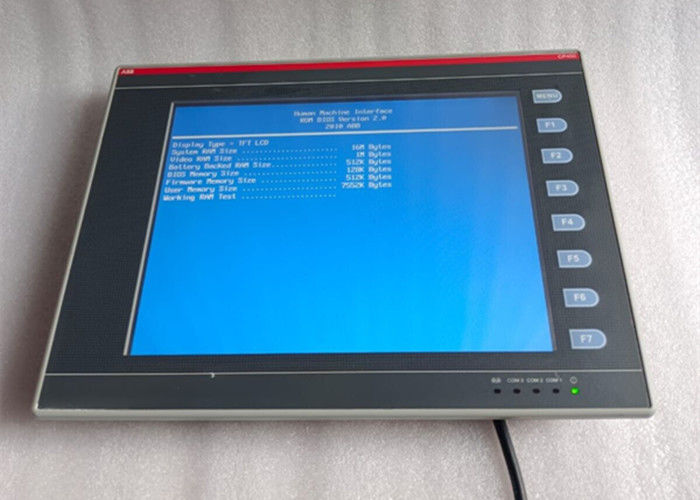

ABB 1SBP260189R1001 CP450 T-ETH Control Panel 10.4” TFT Touch
General Information
|
Extended Product Type:
|
CP450T-ETH
|
|
Product ID:
|
1SBP260189R1001
|
|
ABB Type Designation:
|
CP450T-ETH
|
|
EAN:
|
3471522601896
|
|
Catalog Description:
|
CP450 T-ETH Control Panel 10.4” TFT Touc |
|
Long Description:
|
CP450 T-ETH Control Panel 1 menu 7 defined keys 10.4” TFT Touch screen 64K Colors + Ethernet |
Additional Information
|
ABB Type Designation:
|
CP450T-ETH
|
|
Ambient Air Temperature:
|
Operation 0 ... +50 °C
Storage -10 ... +60 °C
|
|
Battery Type:
|
Portable
|
|
CN8:
|
85381000
|
|
Communication:
|
Depend on Driver
|
|
Communication Interface:
|
Ethernet
|
|
Communication Speed:
|
4.8 ... 187.5 kBd
|
|
Country of Origin:
|
Taiwan, Province Of China (TW)
|
|
Customs Tariff Number:
|
85381000
|
|
Display Type:
|
TFT Touch + keys
|
|
Fieldbus Interface Type:
|
Modbus RTUAC500_ModbusASCIIothers (contact us)
|
|
Frame Size:
|
Undefined
|
|
Fuse Size:
|
3.6 x 10_MMTx
|
|
Fuse Type:
|
SLEEK.36ESr
|
|
Gross Weight:
|
3.12 kg
|
|
Invoice Description:
|
CP450 T-ETH Control Panel 10.4” TFT Touc
|
|
Made To Order:
|
No
|
|
Memory Size User Data:
|
512 kB
|
|
Memory Size User Program:
|
8000 kB
|
|
Memory Type User Data:
|
512 kilobyte RAM
|
|
Memory Type User Program:
|
8 MB ROM
|
|
Minimum Order Quantity:
|
1 piece
|
|
Mounting on DIN Rail:
|
No
|
|
Mounting Position:
|
0 to 135 °
|
|
Mounting Type:
|
Front face
|
|
Number of Characters Per Line:
|
80
|
|
Number of Display Lines:
|
60
|
|
Number of Function Keys:
|
7
|
|
Number of LEDs:
|
0
|
|
Operating Mode:
|
off-lineon-line
|
|
Order Multiple:
|
1 piece
|
|
Power Consumption (@Pcons):
|
30 V·A
|
|
Power Supply:
|
24 V DC
|
|
Product Main Type:
|
CP450
|
|
Product Name:
|
Control Panel
|
|
Product Net Depth / Length:
|
52 mm
|
|
Product Net Height:
|
222 mm
|
|
Product Net Width:
|
297 mm
|
|
Product Net Weight:
|
1.9 kg
|
|
Product Type:
|
PLC-CP400
|
|
Profibus:
|
No
|
|
Programming Software:
|
CP400 Soft
|
|
Real-time Clock:
|
Yes
|
|
Release Type:
|
V10.10.10
|
|
Screen Color:
|
64k colors
|
|
Screen Resolution:
|
640 x 480 pixel
|
|
Screen Size:
|
4:3 screen 10.4 in
|
|
Screen Type:
|
TFT color, CCFL backlight, touch screen
|
|
Security:
|
password protection with 9 user levels
|
|
Serial Port 1 Type:
|
RS232/RS485
|
|
Serial Port 2 Type:
|
RS232/RS422/RS485
|
|
Serial Port 3 Type:
|
RS232RS485
|
|
Service Life:
|
50000 hour
|
|
Short Description:
|
CP450 T Control Panel 10.4” TFT Touch screen 256
|
|
Short-Circuit Protective Devices:
|
gG Type Fuses Integrated
|
|
Software Function:
|
alarm managementrecipe managementtrendsmacro & laddersub-screen
|
|
Stocked At (Warehouses):
|
Menden, Germany
|
|
Supply Voltage:
|
20.4 ... 27.6 V DC
|
|
USB Port 1 Type:
|
2 Host Ver. 2.0
|
|
USB Port 2 Type:
|
1 Device Ver. 2.0
|
|
Viewing Area Height:
|
160.4 mm
|
|
Viewing Area Length:
|
213.2 mm
|
|
WEEE B2C / B2B:
|
Business To Business
|
|
WEEE Category:
|
5. Small Equipment (No External Dimension More Than 50 cm)
|
