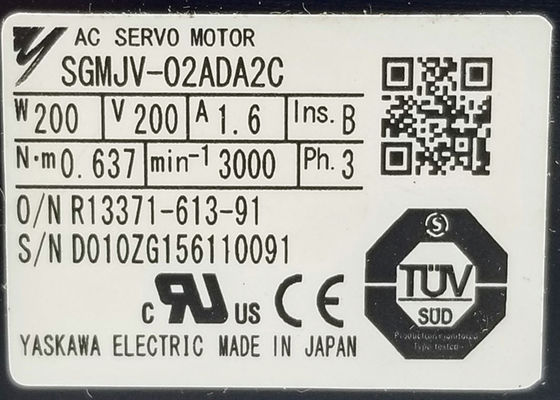

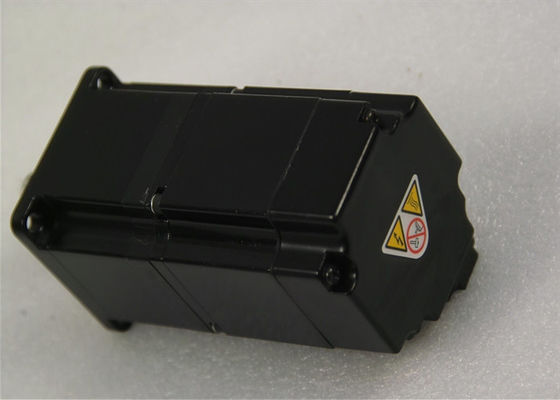

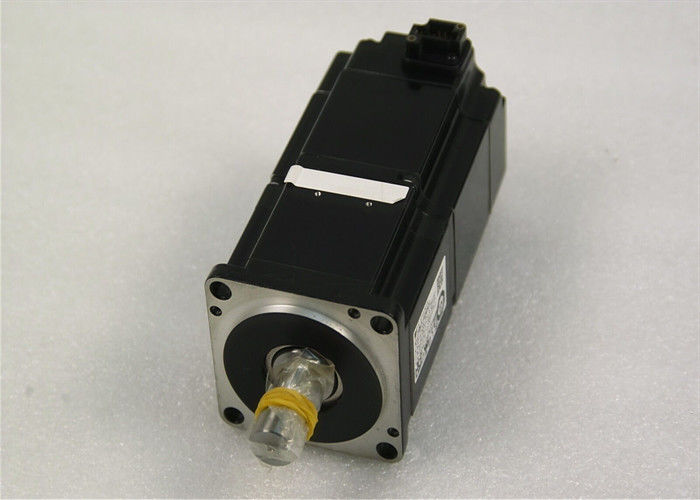

Yaskawa SGMJV-02ADA2C Brand New Servo Motor Industry Original

Yaskawa SGMJV-02ADA2C Brand New Servo Motor Industry Original

Description:

Rated Output : 02 = 150 W
Power Supply Voltage : A = 200 VAC
Serial Encoder : D = 20-bit incremental

Design Revision Order : A = Standard
Shaft End : 2 = Straight without key
Options : c = With holding brake (24 VDC)

KW : 0.2 KiloWatts
Voltage : 200 VAC
Servomotor Type : Rotary

Rated Speed : 3,000 RPM
Max Speed: 6,000 RPM
Mounting Type : Flange Mount

Encoder Type : Incremental
Encoder Bit Resolution : 20 BIT
Constant Torque (Nm) : 0.637
Peak Torque (Nm) : 2.23

Constant Torque (Oz-In) : 90.2
Peak Torque (Oz-In) : 315.8
Constant Torque (Lb-In): 5.637,5
Peak Torque (Lb-In) : 19.7

Brake : Yes
Shaft Seal : No
Inertia : Medium
IP Rating : IP65

Dimensions HxWxD cm : 4.33 in x 2.36 in x 2.87 in
Shipping Weight : 3Kg

SGMJV-02ADA2C Yaskawa AC Servo motor without gears, rotary servomotors, YASKAWA SGMJV series, small capacity brushless servomotor, Σ-V series, sigma 5, 200W, 200VAC, 3000rpm, 20-bit incremental, Straight without key, direct drive, counterclockwise (CCW) with forward run reference when viewed from the load side.

Feature of SGMJV-02ADA2C Yaskawa AC Servo motor:

• Small capacity Medium inertia

• Mounted high-resolution serial encoder: 20 bits

• Maximum speed: 6,000 min-1
