Yaskawa SGMGV-44ADC61 AC Servo Motor Industry Brand New In Box

Yaskawa SGMGV-44ADC61 AC Servo Motor Industry Brand New In Box

Description:

Yaskawa SGMGV-44ADC61 Product information and technical parameters:

Brand: Yaskawa
Name: Rotary servo motor

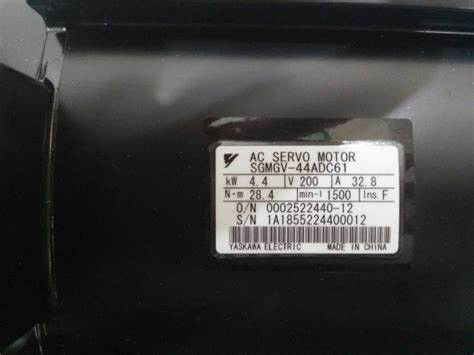

Model: SGMGV-44ADC61
Sigma -V series servo motor SGMGV.

Rated output: 4.4kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).

Design sequence: Standard (bolt for silver).
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.

A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).

Standard using IP67.

Use example:

Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.

Rating and specifications:

Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.

Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).

Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Sigma -V series servo motor SGMGV.

Rated output: 5.5kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.

Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal, with the brake (DC90V).

A variety of mechanical feed shaft drive (high speed feed) Yaskawa SGMGV-44ADC61.
Variety is complete (300W ~ 15kW, with hold brake)
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C Yaskawa SGMGV-44ADC61.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.

Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).

Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationServo motor SGMGH type Yaskawa SGMGV-44ADC61.
Rated speed: 1500r/min.

Power: 0.45kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: taper 1/10, with parallel key.
Optional parts: no brake oil seal.

High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain.
Parameter setting device.
The parameters can be directly entered by the servo drive body.

Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlServo motor SGMGH type.
Rated speed: 1500r/min.
Power: 1.8kw.

Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: high precision machine tool.

Shaft end: straight shaft with screw key.
Optional parts: with oil seal.
