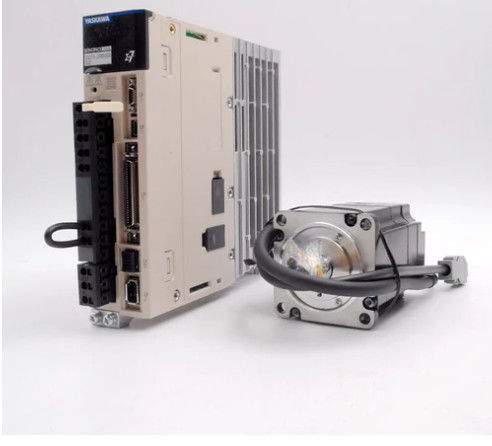

Yaskawa SGMGV-44DDA6C Industry Servo Motor New Original In Box

Yaskawa SGMGV-44DDA6C Industry Servo Motor New Original In Box

Description:

Yaskawa SGMGV-44DDA6C

S5 MTR 4.4KW 400V INC KY TP BK

Sigma -V series servo motor SGMGV.
Rated output: 4.4kw.
Power supply voltage: AC400V.

Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with hold brake (DC24V).

A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.

Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.

Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.

Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.

Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).

Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
