SGMCS-04C3C11 Yaskawa Brand New AC Servo Motor In Original Box

SGMCS-04C3C11 Yaskawa Brand New AC Servo Motor In Original Box

Description:

Brand: Yaskawa

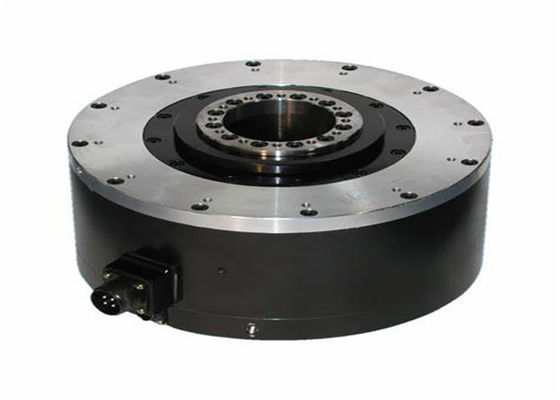

Product name: Direct drive servo motor

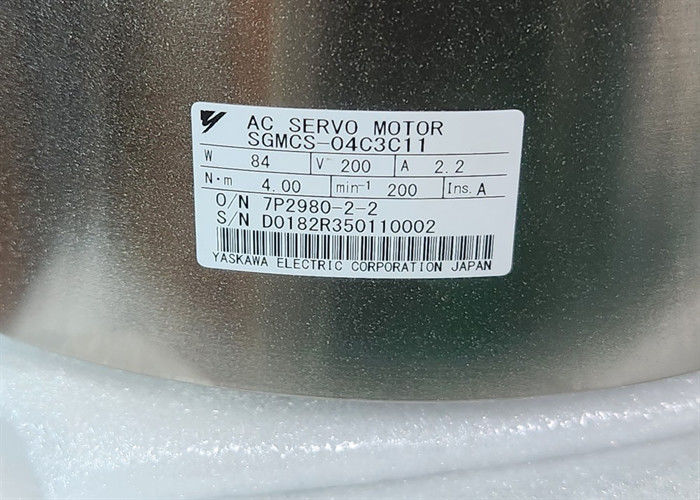

Model :SGMCS-04C3C11
Direct drive servo motor SGMCS small capacity type.

Rated torque :4.0N-m.
External diameter of servo motor :175mm.
Serial encoder: 20-bit alignment type (alignment type within 1 circle)(standard).
Design sequence: servo motor outer diameter size mark B, C, D models.

Flange specification :C face, reverse load side.
Optional specifications: No optional.
Direct drive load without reducer
Powerful smooth operation from low speed to high speed
(Instantaneous torque :6~600N-m, high speed :250~500r/min).

Using a 20-bit high resolution encoder, the division can be performed.
Hollow structure, easy to connect, piping.

Examples of Uses:

Semiconductor manufacturing equipment.
LCD circuit board manufacturing equipment.

Various inspection and test equipment.
Electronic parts sealing machine.
IC information processor.
IC check device.
All kinds of automatic machinery.
A robot.

Small capacity ratings and specifications:

Rated time: continuous.
Vibration level :V15.
Edge resistance :DC500V, more than 10MΩ.

Ambient temperature :0~40°C.
Excitation mode: permanent magnet.
Installation mode: Flange type.
Heat resistance rating :A.
Edge voltage :AC1500V 1 min.

Protection mode: fully enclosed self-cooling IP42(except output shaft rotation gap).
Ambient humidity :20~80%(no condensation).
Connection mode: Direct connection.
Rotation direction: Clockwise (CCW) rotation when viewed from the load side under the forward rotation command.
