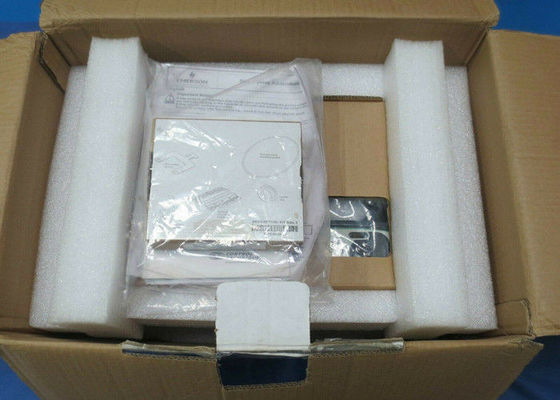

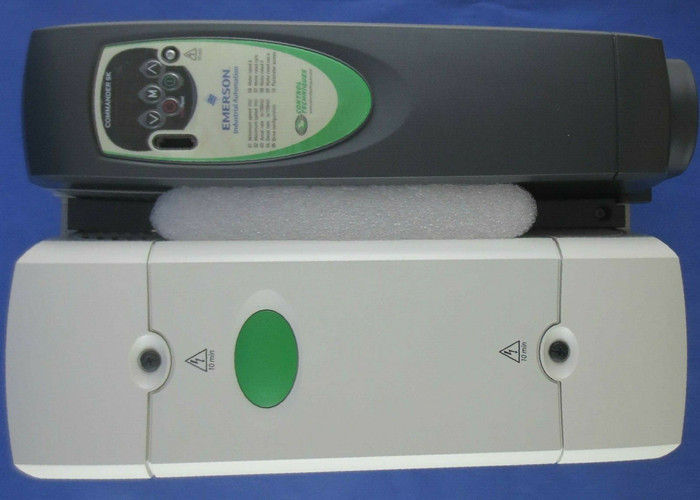

Control Techniques Emerson SK2404 Commander 15kW inverter IP20

Description

Power kW: 15    Power HP :20    Input Voltage :415V
Output Voltage : 0 to input           Input Phases :3
Output Phases: 3                        Output Current :29Amps
Input Current : 27.6Amps
Encl Rating : IP20
Width :155mm                             Height :368mm
Depth :219mm
Frame Size: 2                              Overload :150%
Duty : Heavy

Input Freq : 48-62Hz                   Output Freq :0-550Hz
Max Temp : 40 deg C                  Digital Inputs : 4
Digital Outputs: 1                         Analogue I/Ps : 2
Analogue O/Ps : 1                      Output relay(s) :1



Commander SK and Unidrive SP are transitioning to become legacy products in 2015, which means they can be subject to price and lead time changes as volume production reduces.The legacy period is expected to last for two years and will be followed by the maintenance period. When Commander SK and Unidrive SP enter the maintenance period of their lifecycle, volume production of these products will cease, but contractual obligations regarding warranty, service and repairs will continue. The maintenance period is expected to last ten years subject to raw material and component availability. Updates will be issued to customers throughout the lifecycle period. Local sales representatives are always available to answer any customer queries.
Control Techniques Commander SK Series AC Inverter for 7.5kW (10HP) 400V 3 Ph motor in VxF or Sensorless Vector control to 16.5A. Converts fixed frequency three phase 400V input to variable frequency three phase 400V for a standard AC Induction motor.
From October 2017 the CT Commander SK series is no longer available. The manufacturer recommends that customers upgrade to the Unidrive M200. See linked products below for M200 of equivalent rating and mounting adapter plate.
Specifications

New Type:


Unidrive M: compatibility with Commander SK and Unidrive SP
Mechanical
• Compatible physical dimensions, weights and surface mount footprint.
• When retrofitting surface mount drives, existing mounting holes can be reused-negating the need for additional drilling. Mounting holes are in the same place or retrofit kits are available.
Electrical
• Power and control wiring adopt the same philosophy as Commander SK and Unidrive SP.
