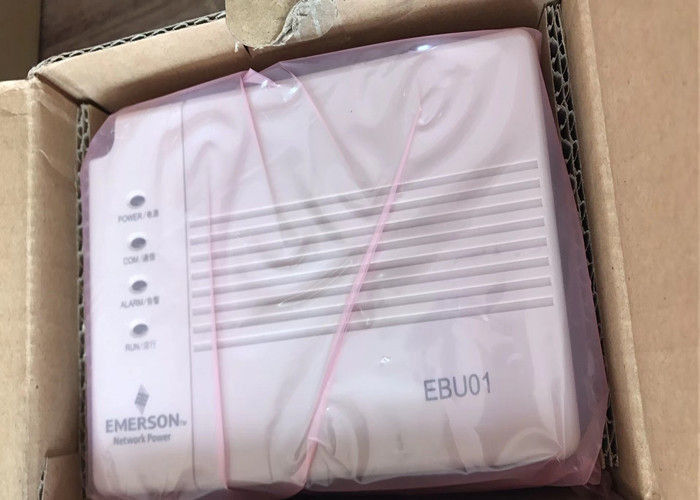

Name: Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING Unit
Brand: Wisdomlong Technology CO.，LTD
SKU: EBU01
Price: 1.00 USD
Availability: InStock

Home Products Industrial Servo Drives

Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING Unit

Product Details:

Place of Origin:	China
Brand Name:	Emerson CONTROL TECHNIQUES
Certification:	CE
Model Number:	EBU01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	EBU01	Brand:	Emerson CONTROL TECHNIQUES
Type:	Battery Detector	Power Consumption:	80~320Vdc
Ambient Temperature:	-10 ~ +50°C	Weight:	2 Kg

Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING Unit

Description

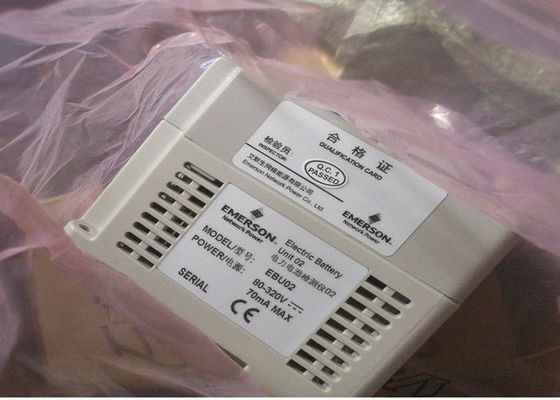

The Emerson battery detector is applicable to detecting batteries in power plants and transformer substation. It has two models: EBU01 and EBU02. The small size makes it suitable to be installed in a small space of electric cabinets.

Functions of EBU01 battery detector

1. EBU01 can detect temperature of two routes, current of one route, voltage of 24 battery cells. EBU02 can detect voltage of 19 battery cells.

2. The battery detector can adjust the measurement levels (2V, 6V, 12V) automatically according to the battery cell voltage, so as to improve the measurement accuracy.

3. Upon battery detector start, if the voltage of any detecting channel exceeds approximately 36V, the battery detector will shut down all the channels and stop the test. The alarm indicator will flash. The test will resume only when the power is cut off and the fault is cleared.

4. During the test process, if the voltage of any detection channel exceeds approximately 16.7V, the battery detector will shut down all the channels, stop the measurement and reset itself automatically. If the measurement voltage exceeds 16.7V after the reset, the preceding process will repeat. The alarm indicator will flash during the reset process. The battery detector will resume automatically after the overvoltage is removed.

Specification of EBU01 (EBU02 )battery detector

The specification of BD is shown in the following table.

DB specification

Parameter	Range	Error	Remark
Input voltage range	80 ~ 320Vdc
Power consumption	<15W
Ambient temperature	-10 ~ +50°C
Relative humidity	10%RH ~ 90%RH
Atmospere	70 ~ 106kPa
Dimensions	135mm%90mm%75mm
Weight	About 2kg
Communication baud rate	9600bps
Battery string voltage	80 ~ 320V	± 0.3%	The sum of all battery cells voltages
One route of battery current	-4 ~ 4V, Hall sensor measurement range -3000 ~ 3000A	± 0.5%	For EBU01
Two routes of battery temperature	-25 ~ 75℃	± 1℃
Voltage of battery cells 1 ~ 24	0.100 ~ 16.500V	± 0.2%
Voltage of battery cells 1 ~ 19	0.100 ~ 16.500V	± 0.2%	For EBU02
