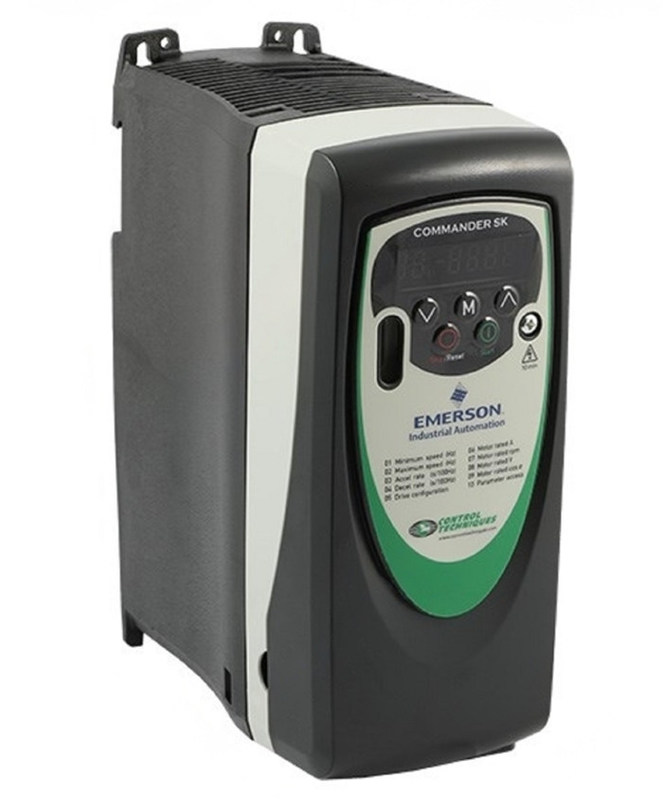

SKB3400075 Emerson AC Drive Control Techniques Commander SK Series

SKB3400075 Emerson AC Drive Control Techniques Commander SK Series

The Control Techniques Commander SK AC Drive has been designed as a simple, compact, cost effective AC Drive frequency inverter controller that delivers performance with simplicity and ease of use. With all the parameters you need for 90% of applications printed on the front of the drive, Commander SK AC Drive ensures installation and commissioning are straight forward.

• Power: 0.75kW

• Amps: 2.1

• Supply: Three Phase 400v

• Model: SKB3400075 0.75kW

• Filter: Built-In

• Performance: Mid Range

• Torque: Constant Torque General Purpose

Type: Control Techniques SKB3400075 0.75kW is a simple compact senseless vector AC Drive frequency inverter

However, for more demanding applications, Commander SK AC Drive frequency inverter can deliver the benchmark functionality of its larger Solutions Platform products and at no extra cost on the base drive itself. Plug-in options, dynamic performance, PLC functionality and other benchmark features ensure that in more complex applications the Control Techniques Commander SK can deliver more than the average general purpose drive – giving you lower cost solutions and better productivity in your motor control applications.

Key Features

• Easy to set-up – all the parameters you need (90% of typical applications) are printed on the front

• Easy installation – choose between simple panel mounting and DIN-rail mounting (up to 1.5kW)

• Simple connections – easy access terminals with clear marking

• Simple start-up – easy push button set-up – no need for complex programming

• Communications – the popular global fieldbus options are available PROFIBUS-DP, INTERBUS, DeviceNet, CANopen, Ethernet

• Functionality – LogicStick and IEC61131-3 ladder and function block programming

• Wide range of I/O – extra I/O options available including Real Time Clock

• Performance – inherits the torque linearity and speed torque performance from the Solution Platform products

• Open loop vector control

• Speed or torque control

• Speed reference input: 0-10 V, 0-20 mA, 4-20 mA, (-10 to +10 V SM-I/O Lite option)

• 4 digital inputs

• Switching frequency: 3 (default) – 6 – 12 – 18 kHz

• Output frequency 0 to 1500 Hz

• Accel and Decel ramps (linear and S type)

• Positive logic control

• Serial communication

• DC injection braking as standard

• Dynamic braking transistor as standard

• Dynamic motor flux V/Hz for energy saving

• Quadratic motor flux V/Hz for fan and pump optimisation

• Undervoltage, Supply and DC Link overvoltage, Phase loss, Drive overload, Instantaneous overcurrent, Short circuit

• Ground fault, Drive thermal, Watchdog, Motor thermal

• Maximum overload 150% of rated current for 60s

• Intelligent Thermal Management (ITM) optimises switching frequency

• 8 preset speeds

• Flying start

• Mains dip ride through

• Automatic no-spin autotune for fast performance optimisation

• Keypad access to all parameters for more demanding set-ups

NIDEC EMERSON SKB3400037 CONTROL TECHNIQUES Commander SK 0.37kW 3ph AC Inverter Drive

• Manufacturer:Emerson

• Product Number:SKB3400075

• Product Type: AC Drive

• Range: Commander SK

• Range type: Variable Speed Drive

• Application: Simple / HVAC Fan & Pump

• Input Phase: Three Phase

• Input Supply Voltage: 380 - 415V AC

• Amp Rating (Constant Torque): 2.1

• Power KW (Constant Torque): 0.75

• Logic (PNP/NPN) Positive (PNP)

• Loop: Open

• Relay Outputs: 1

• No Analog Outputs: 1

• No. Digital Outputs (dedicated) 1

• No Analog Inputs: 2

• No Digital Inputs:4

• IP Rating: IP20

• Dimensions:(7.6 cm x 20.3 cm x 15.2 cm)

• Weight: 1.2 kg (2 lbs)
