MR-J3-11KT4 3 PHASE MR-J4-200A Advanced Servo Motor for Industrial Applications
Product Description:

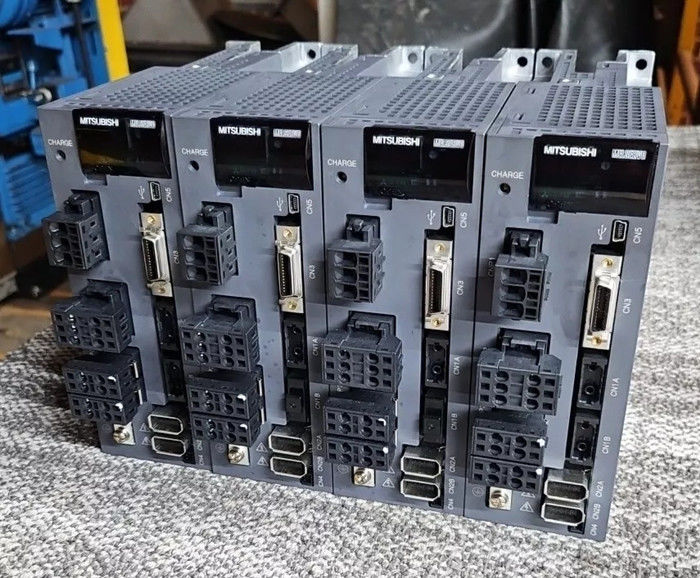

MITSUBISHI MR-J3-11KT4 AC Servo Amplifier with CC-Link Communication Driver
The MELSERVO-J3 series is a universal AC servo amplifier from MITSUBISHI, which includes the MR-J3-11KT4 model.
- Brand: MITSUBISHI
- Name: CC-Link communication driver
- Model: MR-J3-11KT4
- Rated output: 11.0kw
- Interface type: CC-Link communication type (built-in positioning function)
- Power specification: three phase AC400V
The servo amplifier has a built-in positioning function that allows for positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller. The CC-Link communication can be used to complete the setting of the position and speed of the positioning table, as well as the start and stop operation.
The MR-J3-D01 extension IO unit can be used to enable the DI/O instruction to select and locate the table, but CC-Link cannot be used for MR-J3-D01 communications.
The servo amplifier can also be set through CC-Link communications and speed data, corresponding to the CC-Link version: Ver.1.10. The CC-Link communication allows for starting, stopping, monitoring, and other operations, and can reduce wiring when implementing a distributed servo control system.
Optional unit MR-PRU03 can be used for more convenient parameter setting, operation, and monitoring. Additionally, the servo amplifier can be used for speed control operation, and the speed can be set directly by the remote register when the two stations are occupied.
Features:
Servo Motor Series: Low Inertia, Medium/High Power
The Mitsubishi MR-J3-11KT4 servo motor series is designed for medium to high-powered applications with a rated output of 0.5kw. With a rated speed of 3000r/min, this servo motor is ideal for high-speed operation requirements, such as in industrial robotics and CNC machinery.
The MR-J3-11KT4 includes an electromagnetic brake, which provides better control and stability during operation and helps prevent accidents. Additionally, the standard (straight axis) shaft end specification ensures compatibility with a wide range of machines and equipment.
This servo motor operates at a voltage level of 400V, making it suitable for use in applications requiring high energy efficiency. Its low inertia design minimizes energy consumption during acceleration and deceleration, making it ideal for operations that require frequent starts and stops.
The MR-J3-11KT4 servo motor series is also rated IP67, which means it is highly resistant to dust and water ingress, providing long-term durability and reliability.
Applications:
Application examples of HF-SP/HF-JP series servo motor
Food processing machinery and printing machine MR-J3-11KT4
The HF-SP/HF-JP series servo motor is suitable for high frequency positioning and acceleration/deceleration operations in food processing machinery and printing machine MR-J3-11KT4. With a low inertia power servo motor (0.5kW ~ 9kW) and a maximum speed of 6000r/min (rated speed: 3000r/min), it provides excellent performance and stability at low speed due to its high resolution encoder 131072p/rev (17 bit). The motor's protection level is IP67 (except the shaft part).
For medium and large power servo motors (11kW and 15kW), they are low inertia, high power, no cooling fan motor with a maximum speed of 3000r/min (rated speed: 1500r/min). With the non cooling fan design, the motor structure is more compact, and the connection is reduced by using the power source connector. Compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%. It is suitable for high frequency positioning and acceleration/deceleration operations in injection molding machines and large presses MR-J3-11KT4 MITSUBISHI.
Material handling system, industrial robots, and X-Y working table
The HF-SP/HF-JP series servo motor is also suitable for material handling system, industrial robots, and X-Y working table. Its protection level is IP67 (except the shaft part). The medium inertia, medium power servo motor (rated output: 1.5kW, rated speed: 2000r/min) has two types of low speed and high speed, which are suitable for different applications. The motor's shaft end is standard (straight axis), and its IP level is IP67.
Motor capacity selection soft (MRZJW3-MOTSZ111E)
The HF-SP/HF-JP series servo motor comes with the motor capacity selection soft (MRZJW3-MOTSZ111E), which has a friendly interface design. Users only need to input constant and operation mode in the mechanical description window to choose the best servo amplifier, servo motor, and regenerative braking options. Users can also choose linear servo motor and direct drive motor MR-J3-11KT4 in the selection window. The software can display 10 typical mechanical transmission structures to choose from, as well as user defined operating modes (location and speed control). In the selection process, the feed speed and torquue can be displayed in a graphical format, and the calculation process can be displayed. With this free software, users can easily calculate the power of the servo motor.
Packing and Shipping:
Product Packaging
The Industrial Servo Drives product will be packaged securely to ensure its safe delivery to your location. It will be wrapped in bubble wrap to prevent any damage during transportation. The packaging will also include a user manual and any necessary cables or accessories.
Shipping
We offer worldwide shipping for the Industrial Servo Drives product. Shipping costs will vary depending on your location and shipping method. The estimated delivery time will also depend on your location and shipping method selected. Once your order is processed and shipped, you will receive a tracking number to monitor the delivery status of your order.
