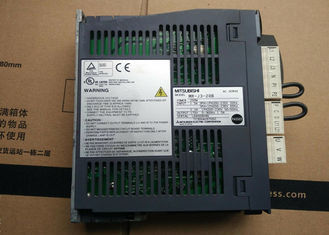

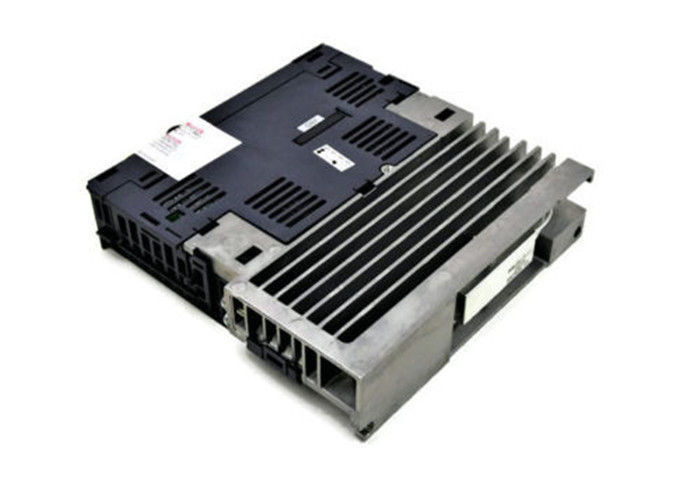

Mitsubishi 200W Amplifier MR-J3-20B-S066 Industrial AC Servo Drive 170V 2.2A Electric Driver



[Features]
· A lineup including rotary servomotors, linear servo motors and direct drive motors from 50W to 220kW.





MITSUBISHI MR-JE-20B Product information and technical parameters:
Brand: MITSUBISHI
Name: amplifier
Model: MR-JE-20B
MITSUBISHI universal AC servo amplifier MELSERVO-JE series.
Rated output: 0.2kw.
Interface: SSCNETIII/H.
Compatible motor: HG-KN23J-S100, HG-KN23BJ-S100.
Superior basic performance and advanced ease of use, to promote the process of equipment servo.
MR-JE-B support servo network.
Advanced performance and ease of use.
In order to allow you to build advanced drive control system,
MITSUBISHI motor will provide you with a full range of servo amplifier, servo motor, programmable controller, positioning module, display, and even advanced solutions.
In the global support system, including the purchase of products to the after-sales service, the performance of MELSERVO-JE will play to the extreme in the world.
Support servo system network SSCNETIII/H.
Can achieve the system of high response speed, multi axis, the performance of the synchronization, the line of the line.
In addition, the encoder can be used as an absolute position encoder in a servo motor.
The absolute position detection system.
At the same time, the high performance of the equipment can be realized by the simple movement module, such as the mark detection, the electronic cam, the advanced synchronization control function and so on.





Manufacturer : MITSUBISHI

Country Of Origin : JAPAN

Model Number :MR-J3-20B-S066

Power:200W
INPUT:1.5A 3PH+1PH200-230V 50Hz
3PH+1PH200-230V 60Hz
2.2A 1PH200-230V 50/60Hz
OUTPUT:170V 0-360Hz 1.5A







Description



Features

• High-speed Controllers for Ultra-short Positioning Times
• High-resolution Encoders for Maximum Speed Constancy
• Minimum Wiring Overheads
• Advanced Vibration Suppression





MR-J3-10A	MR-J3-20A	MR-J3-40A	MR-J3-60A	MR-J3-70A	MR-J3-1000A
MR-J3-200A	MR-J3-350A	MR-J3-500A	MR-J3-700A	MR-J3-10B	MR-J3-20B
MR-J3-40B	MR-J3-60B	MR-J3-70B	MR-J3-100B	MR-J3-200B	MR-J3-350B
MR-J3-500B	MR-J3-700B	MR-J3-10A1	MR-J3-20A1	MR-J3-40A1	MR-J3-60A1





Description of Mitsubishi AC Servo Amplifier



• High-speed controllers for ultra-short positioning times; average speed frequency response 2100Hz

• High-resolution encoders for maximum speed constancy (18 bits 262,144 P/rev)

• Advanced vibration suppression for outstanding adaptation to machine requirements

• Auto tuning for extremely fast setup and installation

• Optimum cost/benefit ratio

• Absolute position encoder included as standard equipment

• Minimum wiring overheads thanks to Plug & Play configuration and automatic motor identification

• Supports global standards

• Shipping Weight: 2.5 kg
