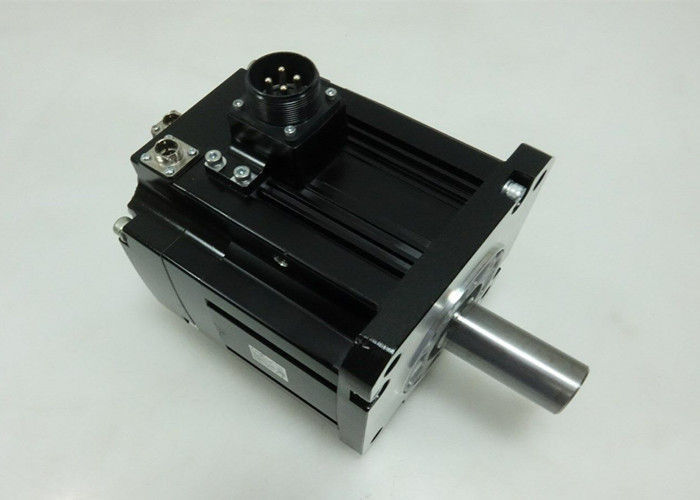

Mitsubishi HG-SR502B Torque DC Servo Motor IP67 Protection Class

Mitsubishi HG-SR502B Torque DC Servo Motor IP67 Protection Class

The MELSERVO-J4 series is an advanced type of motor produced by Mitsubishi Electric. Its type is HG-SR, and its rated capacity is 5 kW. It is designed to deliver a rated torque of 23.9 Nm and a maximum torque of 71.6 Nm. The motor boasts a rated speed of 2000 rpm and a maximum speed of 3000 rpm. The HG-SR type has an inertia of 109 kg*cm2. Additionally, this motor has a built-in brake for added safety, and has a straight shaft design for ease of use. Its protection class is IP67, meaning it is safe for use near water and dust.

This motor requires a power supply of 200 volts AC and its current type is AC. The encoder type used in this motor is 22-BIT with an encoder resolution of 4194304 p/rev. Overall, this motor has a medium inertia and can be employed in a variety of applications.

Features:

The dimensions and weight of the item are as follows:

• Width: 176mm
• Height: 228.9mm
• Depth: 307mm
• Weight: 26kg

These measurements should be taken into consideration when planning for storage and transportation.

It is important to note that these values may have a slight variance due to manufacturing processes.

Overall, the item is compact but heavy, and should be handled with care.

Technical Parameters:

The product in question has not exceeded the limit for REACH compliance.

The product is not classified as a dangerous good.

The product is RoHS compliant.

The product is intended for use in business-to-business (B2B) environments and complies with the Waste Electrical and Electronic Equipment (WEEE) directive.

The product does not have a dangerous goods identifier.

Applications:

It has been determined that the REACH Limit has not been exceeded. Additionally, it has been determined that there is no classification for Dangerous Goods. Moreover, it has been established that this product is fully RoHS compliant.

With regards to WEEE regulations, this product is classified as B2B. Please note that there is no identifier for Dangerous Goods associated with this product.
