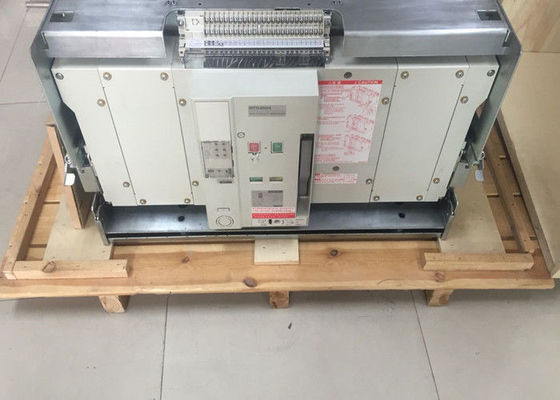

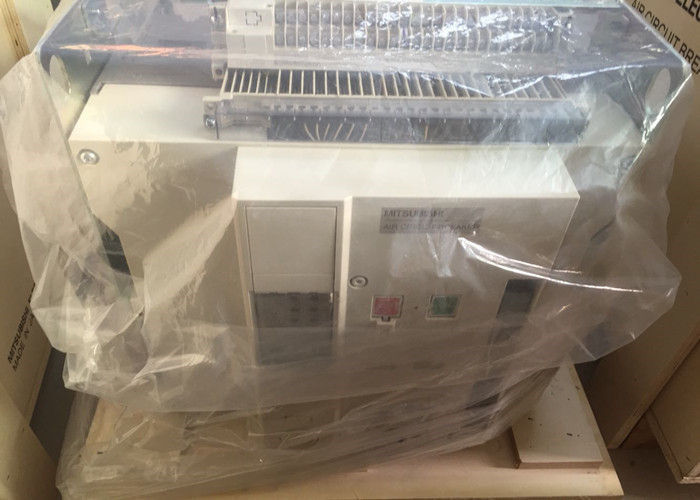

MITSUBISHI ACB AE1250-SS AE1250-SW 1250A Low-Voltage Air Circuit Breakers

MITSUBISHI ACB AE1250-SS AE1250-SW 1250A Low-Voltage Air Circuit Breakers

  • MITSUBISHI ACB AE1250-SS AE1250-SW 1250A Low-Voltage Air Circuit Breakers
  • MITSUBISHI ACB AE1250-SS AE1250-SW 1250A Low-Voltage Air Circuit Breakers
MITSUBISHI ACB AE1250-SS AE1250-SW 1250A Low-Voltage Air Circuit Breakers
Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: AE4000-SWA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: AE4000-SWA Brand: Mitsubishi
Category: AIR CIRCUIT BREAKER Current: 4000A
Voltage: Low-Voltage Pole: 3P



Japan MITSUBISHI 4000A ACB Air Circuit Breaker AE4000-SWA Draw-out type Low-Voltage New



FA-ACB: Air Circuit Breaker

Series AE-SW SERIES
Type DRAWOUT TYPE
Current Range Ir (A) 2000-4000
Current Type AC
Rated Voltage (V) 690
Number of Poles 3
Cycles with Rated Current 500
Cycles without Rated Current 20000
Frame Size 4000
Breaking Capacity at 500V (kA) 85
No of Auxiliary Contacts NO 5
No of Auxiliary Contacts NC 5
Internal Power Supply (V) 100-240 AC 100-125 DC



Product Dimensions & Weight

Width (mm) 439
Height (mm) 430
Depth (mm) 368
Weight (kg) 108

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,CCS,DNV,GL,LR,NK
UKCA COMPLIANT

Product Packaging

Cardboard (g) 4500
Other paper (g) 0
Aluminum (g) 0
Steel (g) 348
Styrofoam (g) 0
Other plastic (g) 0
Wood (g) 8300
Glass (g) 0
Others (g) 0



Environmental

REACH Limit Exceeded NO
Dangerous Goods Class NO
RoHS Compliance COMPLIANT
WEEE B2B





Company Introduction
