Yokogawa Conductivity Sensor SC42-TC26-20 316 SS Glass filled epoxy resin Easy installation

Yokogawa Conductivity Sensor SC42-TC26-20 316 SS Glass filled epoxy resin Easy installation

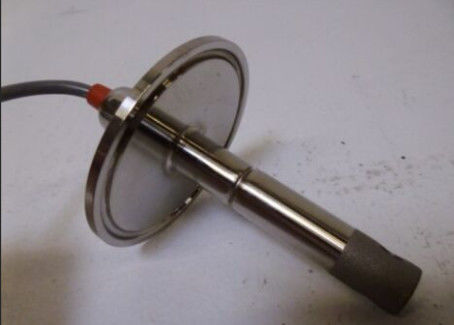

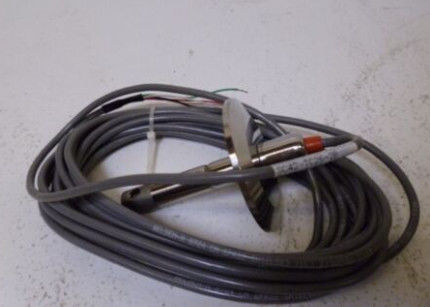

The SC42 Small-Bore conductivity sensors have rugged stainless steel bodies, integral cables, and a variety of process connections available. The direct insertion sensors come with a ¾” MNPT Polypropylene adapter. A 316 Stainless Steel adapter is also available as an option for applications at higher temperatures or pressures. The sanitary sensors are compatible with 2.0”, 1.5”, or 1.0” Tri-clover sanitary fittings. All of the sensors come complete with Pt1000 temperature elements for accurate temperature compensation.

FEATURES:

• Rugged 316 Stainless Steel construction

• ¾” Direct Insertion with Polypropylene or 316SS adapters

• Sanitary options compatible with 1”, 1.5”, or 2” Tri-clover fittings

• Integral Cable • Platinum 1000 Temperature compensation

APPLICATIONS

• Automatic boiler blowdown control

• Condensate monitoring

• Leak detection on heat exchangers

• Steam purity tracking

Plug-in flow sensors (PTFE and PVDF) PTFE or PVDF shielded glass-platinum cells for 2- and 4-electrode type with cell constant 10 cm-1.

These conductivity sensors are excellent suited for measurement in aggressive media. The (protection) body consists of PVDF (Kynar) or PTFE (Teflon with 25% glass filling). The cell itself is made from highly resistant glass with platinum electrodes. The electrodes surfaces of the 2-electrode cells (SC42-P04) are further enhanced by gold plating to minimize the polarisation effects. The internal sealing between the glass measuring cell and the PTFE/PVDF body (not visible in drawing) is by a KALREZ O-ring (high quality with excellent chemical resistance). A VITON Oring is supplied with the sensors for sealing the cell in the fitting (visible in drawing). For measurements in strongly oxidizing acids an optional KALREZ O-ring is recommended.

Typical applications

PTFE-cell : Concentrated mineral acids such as: oleum, nitric acid, hydrochloric acid, etc.

PVDF-cell : All aggressive media with the exception of strongly oxidizing agents. Note: See the chemical resistance list in table 1.
