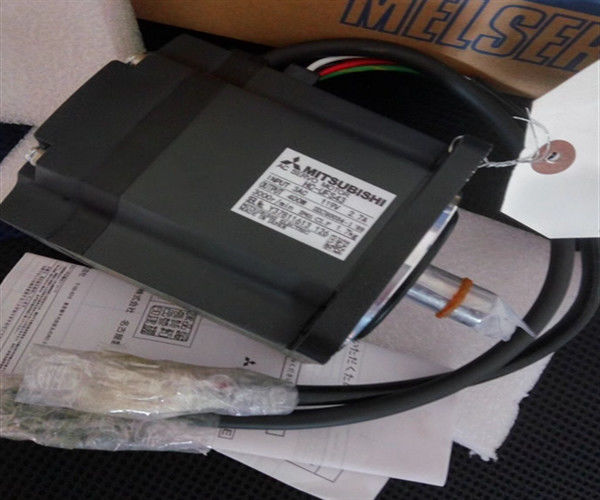

The HC-UF43 By Mitsubishi Servo Motor 200V AC Power Supply

The HC-UF43 By Mitsubishi Servo Motor 200V AC Power Supply

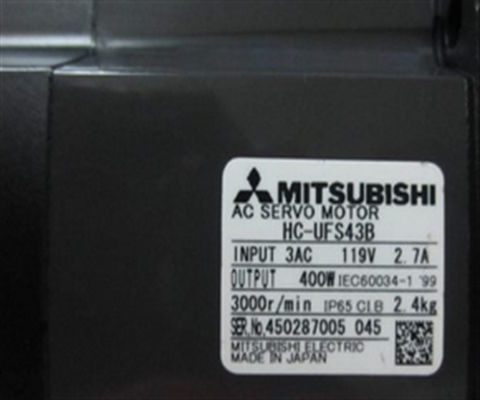

Description of Mitsubishi HC-UFS43B

The Mitsubishi HC-UFS43B is a cutting-edge AC servo motor engineered for high-precision industrial applications. As part of Mitsubishi's HC-UF series, it provides high performance and dependability, making it an excellent choice for various automation applications. This servo motor is designed to work effectively in harsh situations, assuring maximum performance and longevity.

The HC-UF43 by Mitsubishi is a servo motor designed for 200V AC power supply. It features a rated current of 2.8A and a maximum current rating of 9.24A, producing a 0.4 KW rated power output and 1.3 Nm torque. With a top speed of 4500 rev/min and a rated speed of 3000 rev/min, it operates within an ambient air temperature range of 0 to 40 °C. The IP65-rated flange-type mounting makes it suitable for demanding conditions.

Technical Specifications of HC-UFS43:

The HC-UFS43B AC servo motor has a rated output of 0.4 kW and a rated torque of 1.3 Nm, which is enough power for various industrial applications. The motor's maximum torque is 3.8 Nm, allowing it to manage brief periods of increased load without sacrificing performance.

This servo motor has a rated rotation speed of 3000 r/min and a maximum speed of 4500 r/min. Its maximum instantaneous rotation speed is 5175 r/min, ideal for applications requiring quick acceleration and deceleration.

The motor's rated current is 2.8 A, and the maximum is 9.24 A. This ensures the motor can handle massive current demands during peak hours. The power rate at continuous rated torque is 47.7 kW/s, indicating engine efficiency under a steady load.

With a moment of inertia of 0.191 x 10^-4 kg.m^2, the motor responds swiftly and precisely. Standard HC-UFS43Bs weigh 5.0 kg (11.0 lb), but the electromagnetic brake type weighs 6.2 kg (13.7 lb). This weight range lets the motor fit into numerous systems without major adjustments.

Technical Specifications for HC-UFS43

Power Specifications:

The energy-efficient HC-UFS43B requires 0.9 kVA of power facility capacity for industrial applications. This power demand conserves energy and optimises performance. The design allows the motor to work efficiently with this power capacity, minimising operational costs without losing output or functionality.

The HC-UFS43B's power supply is designed to work consistently under input fluctuations. Industrial situations with unstable power supplies require this feature for constant functioning. The motor's flexibility with various power supplies makes it adaptable to numerous industrial environments without significant adjustments.

Safety Specifications:

HC-UFS43B is designed for safety and reliability in specified environments. Operation temperatures are 0 to 40°C (32 to 104°F), while storage temperatures are -15 to 70°C (5 to 158°F). This wide temperature range ensures the motor works reliably in all weather.

The motor can be kept at up to 90% RH and operate at 80% RH (non-condensing). This specification prevents moisture damage and prolongs motor life. Indoor use is recommended for the HC-UFS43B, away from direct sunlight, corrosive gasses, flammable gases, oil mist, and dust. Safe operating conditions prevent dangers that could damage the motor or affect its performance.

Mitsubishi HC-UFS43B servo motors work 1000 meters or less above sea level. They are excellent for industrial environments with heavy movement and vibration, as they can withstand up to 24.5 m/s² on the X and Y axes and 49 m/s² on the Z axis.
