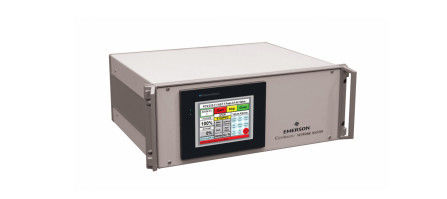

Emerson ControlInc Network Control SE300 M2CP 320A for Industrial

Product Description:

Capable of controlling up to 250 valve actuators, providing built-in redundant safety for uninterrupted operation.

characteristic:
The universal valve actuator control function can be pre configured to monitor and control valves from LCD panels or hosts
Supports Modbus network ports for networking with DCS SCADA or PLC to achieve overall factory control
Supports Controlinc network, including a ring topology with up to 250 valve actuators per master device

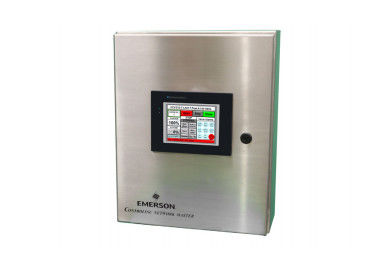

Encapsulated in a compact 316 stainless steel casing, NEMA/EEMAC 4X type IEC IP66 wall mounting is achieved through sealed mounting holes or brackets
Networking multiple M250 master devices with the host to automate thousands of actuators and tens of thousands of auxiliary discrete and analog I/O points
The main device supports exception reporting (RBE) for all executing agencies on the network, significantly improving response speed

Specifications:
Product type attachments
Certification: This product is only applicable to large fixed installations exempted from Directive 2011/65/EU (RoHS 2) on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Control type on/off
Valve types: ball valve, butterfly valve, plug valve, triple eccentric valve
