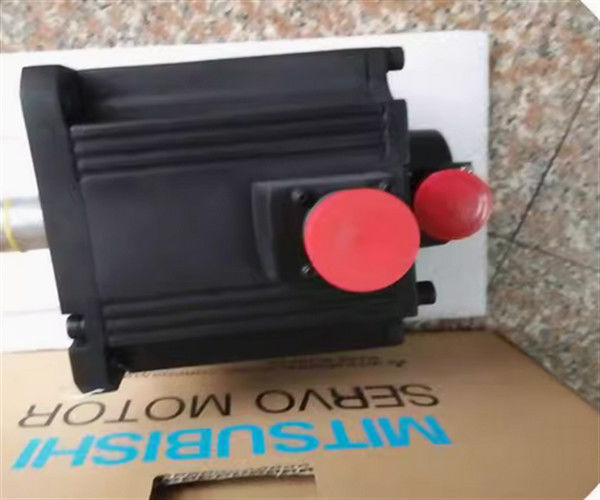

MITSUBISHI HC-SFS502 AC Servomotor 2000rpm 133V 26A 5kW
Product Descriptions OF HC-SFS502
| Primary brand |
Mitsubishi Electric |
| Main function |
AC servo motor |
| Product series / family name |
MELSERVO J2S series |
| Sub-range name |
HC-SF series |
| Functions |
AC brushless rotary servo motor |
| Design |
straight shaftbuilt-in absolute feedback encod. (17-bit)oil sealmedium inertia / medium power capacity |
| Supply voltage (AC) |
200Vac class |
| Rated current |
26A |
| Rated active power (kW) |
5000W / 5kW |
| Rotational speed |
2000rpm2000rpm (maximum) |
| Torque |
23.9Nm nominal |
| Maximum torque |
71.6Nm |
| Moment of inertia |
0.0101kg.m2 (101kg.cm2) |
| Net Height (mm) |
230 mm |
| Net Width (mm) |
176 mm |
| Net Depth (mm) |
287 mm |
| Mounting mode |
176x176mm flange mounting |
| Resolution |
17-bit (equivalent to 131072ppr) feedback |
| Degree of protection |
IP65 |
| Dimensions |
H230mm x W176mm x D287mm |
| Ambient air temperature for operation |
0…+40 °C |
| Ambient air temperature for storage |
-15°C…+70 °C |
| Maximum current |
84 A |
| Order code / Manufacturer SKU |
HC-SFS502 |
Product Details OF HC-SFS502
- Melservo HC Servo Motor 5KW (HCSFS502)
- Manufacturer: Mitsubishi
- Series: MELSERVO HC
MITSUBISHI HC-SFS502 Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS502
Motor series: medium inertia, medium power.
Rated output power: 5.0kw.
Rated speed: 2000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
Cable length: 0.5M.
Amplifier CC-Link interface unit cable.
For MR-J2S-11KA (4) MR-J2S-22KA to (4).
Amplifier and CC-Link interface unit using 0.5 m (1.64 ft) or shorter cables. 1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series.
Rated output: 11.0kw.
Interface: SSCNET III /H MITSUBISHI HC-SFS502.
Power supply: three phase AC200V.
Servo amplifier supporting SSCNET III /H HC-SFS502
Complete synchronization system capable of using high speed serial optical communication.
Can be combined with the servo system controller to maximize the performance of the servo system.
Improve mechanical properties by high performance motor.
By improving the resolution and processing speed of the encoder,
The rotating servo motor has higher precision and better performance of rotation MITSUBISHI HC-SFS502.
Only open a key type of adjustment function, can be carried out including mechanical resonance filter, high end seismic control II, low pass filter servo gain adjustment.
Easily start advanced seismic function, it can maximize the mechanical properties.
It can automatically adjust the required response settings automatically MITSUBISHI HC-SFS502. The length of the line: 2M.
IP level: IP65.
Direct type.
Bending life: standard.
Connector kit for motor electromagnetic brake.
Cable for electromagnetic brake, for HF-KP/HF-MP series (motor shaft with side extraction). Servo motor series: low inertia, medium / high power.
Rated output: 0.5kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connnection is reduced by using the power source connector HC-SFS502.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses HC-SFS502.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
