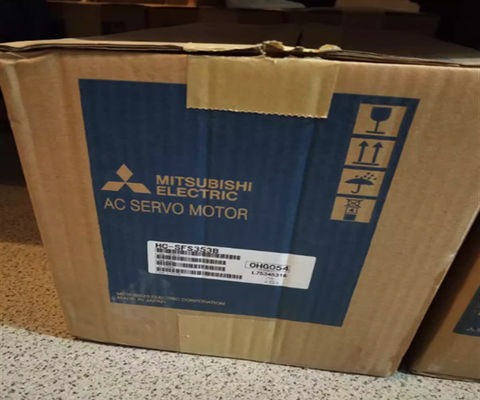

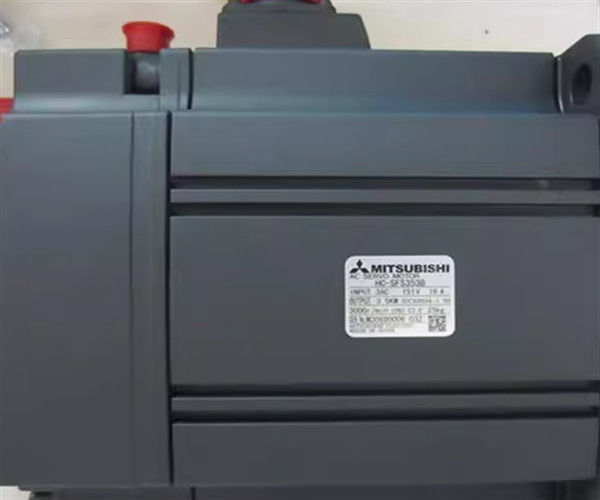

Mitsubishi Servo Motor HC-SFS353 Transmission Machinery, Robots
Description of HC-SFS353
| Primary brand |
Mitsubishi Electric |
| Main function |
AC servo motor |
| Product series / family name |
MELSERVO J2S series |
| Sub-range name |
HC-SF series |
| Functions |
AC brushless rotary servo motor |
| Design |
straight shaftbuilt-in absolute feedback encod. (17-bit)oil sealmedium inertia / medium power capacity |
| Supply voltage (AC) |
200Vac class |
| Rated current |
16.4A |
| Rated active power (kW) |
3500W / 3.5kW |
| Rotational speed |
3000rpm3000rpm (maximum) |
| Torque |
11.1Nm nominal |
| Maximum torque |
33.4Nm |
| Moment of inertia |
0.00820kg.m2 (82kg.cm2) |
| Net Height (mm) |
230 mm |
| Net Width (mm) |
176 mm |
| Net Depth (mm) |
266 mm |
| Mounting mode |
176x176mm flange mounting |
| Resolution |
17-bit (equivalent to 131072ppr) feedback |
| Degree of protection |
IP65 |
| Dimensions |
H230mm x W176mm x D266mm |
| Ambient air temperature for operation |
0…+40 °C |
| Ambient air temperature for storage |
-15°C…+70 °C |
| Maximum current |
49.2 A |
| Order code / Manufacturer SKU |
HC-SFS353 |
Specification of HC-SFS353
- Mounting method : Flange mounting
- Mounting direction : In any directions
- Output shaft rotating direction : Same as the servo motor output shaft direction.
- Permissible load inertia moment ratio : 10 times or less
- Reduction gear efficiency : 77 to 92%
| Description |
HC-SFS353 is a Motors-AC Servo produced by Mitsubishi |
|
| Servomotor Type |
HC-SFS Series; Medium inertia,medium capacity,high resolution |
| Rated Output |
3.5kW |
| Rated speed |
3000 rpm |
| Voltage |
200V |
| Electromagnetic brake |
none |
| Reduction Gear |
Without |
| Shaft type |
Standard (straight shaft) |
Features of HC-SFS353:
Medium inertia from low speed to high speed three modes for selection, suitable for different applications.
The encoder with high resolution ensures excellent performance and stability at low speed.
Application examples:
Transmission machinery, robots, X-Y working platform.
All motor dimensions are the same as before and all are compatible with the wiring.
Motor series: medium inertia, medium power.
Rated output power: 3.5kw.
Rated speed: 3000r/min
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
