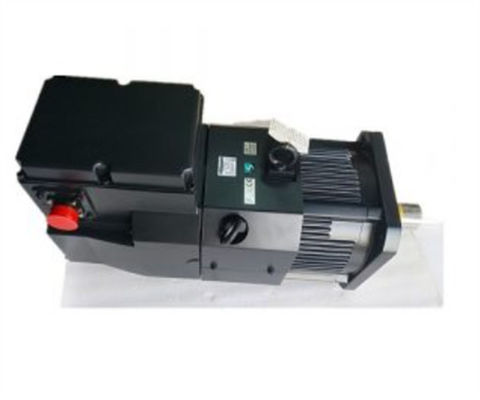

Mitsubishi HA-LFS15K2 AC Servo Motor 77A 130V 15KW 2000RPM NEW

MITSUBISHI HA-LFS15K2 Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia medium power motor
Model: HA-LFS15K2
Motor series: low inertia, medium power.
Rated output power: 15.0kw.
Rated speed: 2000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).

Features: low inertia from low speed to high speed, three modes can be selected, suitable for different application range. As a standard port, 30KW or greater power is suitable for flange (type) installation and support foot mounting.
Application example: injection molding machine, semiconductor manufacturing equipment, large conveyor machinery.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

The length of the line: 10M.
IP level: IP65.
Direct type.
The cable is not shielded.
Bending life: high bending life.
Connector kit for motor electromagnetic brake.

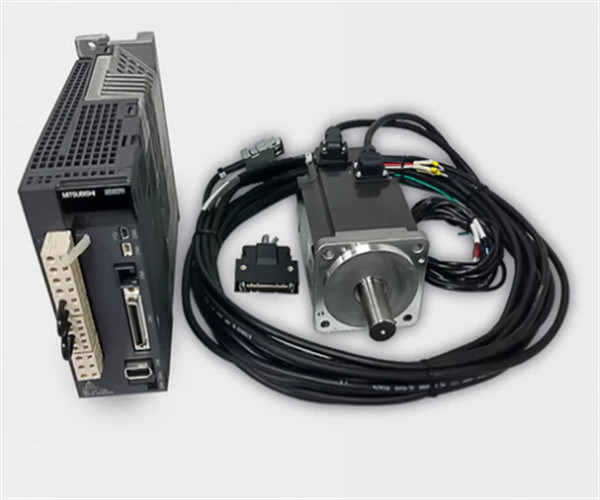

Cable for electromagnetic brake, for HF-KP/HF-MP series (motor shaft with side extraction). MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series MITSUBISHI HA-LFS15K2.
Rated output: 5.0kw.
Interface type: SSCNET type III fiber communication HA-LFS15K2
Full closed loop control.
Power specification: three phase AC400V.

High precision and high response location control.
Full closed loop control can be realized by double feedback control method.
Dual feedback control can be performed between the servo motor encoder and the load side encoder.
MR-J3-B-RJ006 can be used in conjunction with a number of manufacturers of linear encoder,
Users can build the system according to their own accuracy requirements MITSUBISHI HA-LFS15K2. ABS type linear encoder using serial interface,
No need to install the battery on the servo amplifier can easily build the absolute position detection system.
Flexible system configuration.
Can achieve higher load side positioning accuracy!The length of the line: 10M MITSUBISHI HA-LFS15K2.

IP level: IP65.
Cable lead out direction: motor shaft different side.
Bending life: standard.
The cable is not shielded.
Encoder with cable (motor side); for HF-KP/HF-MP series (motor shaft with side extraction). Cable length: 30m.
For MR-J2S-700A (4) /CP/CL or less.
Encoder for HC-SFS; HC-LFS; HC-RFS; 2000r/min HA-LFS; HC-UFS servo motor.
-H products have a long flex life.

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.75kw.
Interface type: SSCNET type III fiber communication.
Full closed loop control.
Power specification: single phase AC200V.
High precision and high response location control.
Full closed loop control can be realized by double feedback control method.
Dual feedback control can be performed between the servo motor encoder and the load side encoder.
MR-J3-B-RJ006 caan be used in conjunction with a number of manufacturers of linear encoder,
Users can build the system according to their own accuracy requirements HA-LFS15K2. ABS type linear encoder using serial interface,
No need to install the battery on the serrvo amplifier can easily build the absolute position detection system HA-LFS15K2.
Flexible system configuration.
Can achieve higher load side positioning accuracy!

Specifications Of HA-LFS15K2
