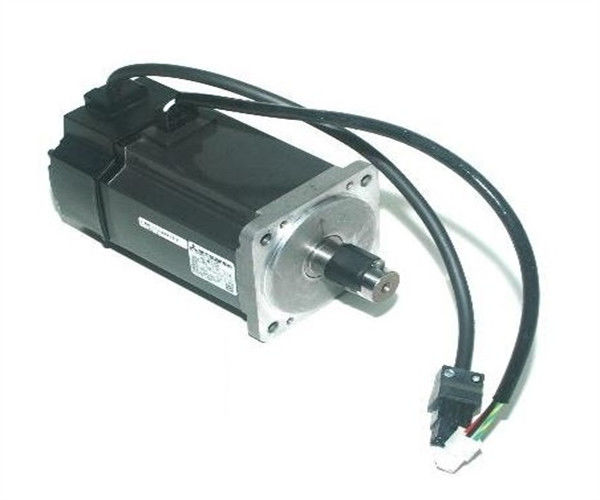

Name: HC-KFS13B | Mitsubishi Electric | MELSERVO-J2-Super Servo Motor 200V
Brand: Wisdomlong Technology CO.，LTD
SKU: HC-MFS/KFS13B
Price: 1.00 USD
Availability: InStock

Home Products AC Servo Amplifier

HC-KFS13B | Mitsubishi Electric | MELSERVO-J2-Super Servo Motor 200V

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	HC-MFS/KFS13B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Mitsubishi	Product Type:	Industrial Servo Drives
Part Number:	HC-MFS/KFS13B	Place Of Origin:	Japan
Frequency:	200-230 VAC	Power:	200W

HC-KFS13B | Mitsubishi Electric | MELSERVO-J2-Super Servo Motor 200V

Descriptions of HC-KFS13B

Primary brand	Mitsubishi Electric
Main function	AC servo motor
Product series / family name	MELSERVO J2S series
Sub-range name	HC-KF series
Functions	AC brushless rotary servo motor
Design	straight shaftbuilt-in absolute feedback encod. (17-bit)low inertia / small power capacityfan cooling
Supply voltage (AC)	200Vac class
Rated current	0.71A
Rated active power (kW)	100W / 0.1kW
Rotational speed	3000rpm4500rpm (maximum)
Torque	0.32Nm nominal
Maximum torque	0.95Nm
Moment of inertia	0.0000084kg.m2 (0.084kg.cm2)
Net Height (mm)	55.7 mm
Net Width (mm)	42 mm
Net Depth (mm)	121.5 mm
Mounting mode	40x40mm flange mounting
Resolution	17-bit (equivalent to 131072ppr) feedback
Degree of protection	IP55
Dimensions	H55.7mm x W42mm x D121.5mm
Ambient air temperature for operation	0…+40 °C
Ambient air temperature for storage	-15°C…+70 °C
Maximum current	2.5 A
Order code / Manufacturer SKU	HC-KFS13

Detail of HC-KFS13B

Estimated Lead Time : Usually ships in 1 - 10 working days.

Manufacturer : Mitsubishi Electric

Product No. : HC-KFS13B

Product type : MELSERVO-J2-Super Servo Motor 200V

Motor series : HC-KFS = Low inertia, small capacity

Rated output (kW) : 1 = 0.1

Rated speed (r/min) : 3 = 3000

Electromagnetic brake : B = Installed

Shaft end : None = Standard (Straight shaft)

Servo-amp model (Note 9) MR-J2S : 10A (1)/B (1)/CP (1)/CL (1)

Power facility capacity (Note 2) (kVA) : 0.3

Rated current (A) : 0.71

Weight : 0.89 Kg

Shipping weight : 2 Kg

Models of Mitsubishi drive

Servo amplifier	Servo motor with functional safety
MR-J4-10GF-RJ MR-J4-10B-RJ MR-J4-10A-RJ	HG-KR053(B)W0C, 13(B)W0C
MR-J4-20GF-RJ MR-J4-20B-RJ MR-J4-20A-RJ	HG-KR23(B)W0C
MR-J4-40GF-RJ MR-J4-40B-RJ MR-J4-40A-RJ	HG-KR43(B)W0C
MR-J4-60GF-RJ MR-J4-60B-RJ MR-J4-60A-RJ	HG-SR51(B)W0C, 52(B)W0C HG-JR53(B)W0C.
MR-J4-70GF-RJ MR-J4-70B-RJ MR-J4-70A-RJ	HG-KR73(B)W0C HG-JR73(B)W0C
MR-J4-100GF-RJ MR-J4-100B-RJ MR-J4-100A-RJ	HG-SR81(B)W0C, 102(B)W0C HG-JR53(B)W0C (Note 1, 3), 103(B)W0C
MR-J4-200GF-RJ MR-J4-200B-RJ MR-J4-200A-RJ	HG-SR121(B)W0C, 201(B)W0C, 152(B)W0C, 202(B)W0C HG-JR73(B)W0C (Note 1, 3), 103(B)W0C (Note 1, 3), 153(B)W0C, 203(B)W0C
MR-J4-350GF-RJ MR-J4-350B-RJ MR-J4-350A-RJ	HG-SR301(B)W0C, 352(B)W0C HG-JR153(B)W0C (Note 1), 203(B)W0C (Note 1), 353(B)W0C
MR-J4-500GF-RJ MR-J4-500B-RJ MR-J4-500A-RJ	HG-SR421(B)W0C, 502(B)W0C HG-JR353(B)W0C (Note 1), 503(B)W0C
MR-J4-700GF-RJ MR-J4-700B-RJ MR-J4-700A-RJ	HG-SR702(B)W0C HG-JR503(B)W0C (Note 1), 703(B)W0C, 701M(B)W0C
MR-J4-11KGF-RJ MR-J4-11KB-RJ MR-J4-11KA-RJ	HG-JR903(B)W0C, 11K1M(B)W0C
MR-J4-15KGF-RJ MR-J4-15KB-RJ MR-J4-15KA-RJ	HG-JR15K1M(B)W0C
MR-J4-22KGF-RJ MR-J4-22KB-RJ MR-J4-22KA-RJ	HG-JR22K1MW0C

MDS series Servo Drive

MDS-D-V1-20	MDS-D-V1-40	MDS-D-V1-80	MDS-D-V1-160	MDS-D-V1-160W
MDS-D-V1-320W	MDS-D-V2-2020	MDS-D-V2-4020	MDS-D-V2-4040	MDS-D-V2-8040
MDS-D-V1-320	MDS-D-V2-8080	MDSD-V2-16080	MDS-D-V2-160160	MDS-D-V2-160160W
MDS-DM-V3-202020	MDS-DM-V3-404040	MDS-D-SP-20	MDS-D-SP-40	MDS-D-SP-80
MDS-D-SP-160	MDS-D-SP-200	MDS-D-SP-240	MDS-D-SP-320	MDS-D-SP-400
MDS-D-SP-640	MDS-D-SP2-2020	MDS-D-SP2-4020	MDS-D-SP2-4040S	MDS-D-SP2-8040
MDS-D-SP2-8080	MDS-D-SP2-16080S	MDS-D-CV-37	MDS-D-CV-75	MDS-D-CV-110
MDS-D-CV-185	MDS-D-CV-300	MDS-D-CV-370	MDS-D-CV-450	MDS-D-CV-550

Models of Mitsubishi AC SERVO MOTOR

HF-MP053	HF-MP13	HF-MP13	HF-MP23	HF-MP43
HF-MP73	HF-KP053	HF-KP13	HF-KP23	HF-KP43
HF-KP73	HF-MP053B	HF-MP13B	HF-MP23B	HF-MP43B
HF-MP73B	HF-KP053B	HF-KP13B	HF-KP23B	HF-KP43B
HF-KP73B	HF-SP52	HF-SP102	HF-SP152	HF-SP202
HF-SP352	HF-SP502	HF-SP702	HF-SP52B	HF-SP102B
HF-SP152B	HF-SP202B	HF-SP352B	HF-SP502B	HF-SP702B
HF-SP51	HF-SP81	HF-SP121	HF-SP201	HF-SP51B
HF-SP81B	HF-SP121B	HF-SP201B	HG-SR352BK	HG-SR352BJ

Similer item we can supply:

MR-J2S-10B-S149	MR-J2S-20B-S149	MR-J2S-40B-EE085
MR-J2S-40B-EE006	MR-J2S-40B-S009U528	MR-J2S-40CP-S186
MR-J2S-40CP-S084	MR-J2S-40A-PY091	MR-J2S-40B-PY096
MR-J2S-40B-PY135	MR-J2S-40B-S210	MR-J2S-40A-PF
NR-J2S-60A-PF	MR-J2S-40A-PQ108T022	MR-J2S-40B-PY096T018
MR-J2S-60B-S041U638	MR-J2S-60B-S134	MR-J2S-40B-PY135
MR-J2S-60B-FH168	MR-J2S-40B1-EH018	MR-J2S-40B1-QA112
MR-J2S-40CP1	MR-J2S-60B-S030	MR-J2S-40B-QT0009U625
MR-J2S-40CP-EG	MR-J2S-10CP1	MR-J2S-40A-S004
MR-J2S-20CP1	MR-J2S-10A1-S017	MR-J2S-70A-S011
MR-J2S-20A-S011	MR-J2S-40A-S011	MR-J2S-100A-S011
MR-J2S-40A-EG055	MR-J2S-40A-EG011	MR-J2S-20CP-S011
MR-J2S-70CP-S011	MR-J2S-200B-S126	MR-J2S-70CP-S259
MR-J2S-70B-T004	MR-J2S-350CP-S186	MDS-B-SVJ2-07
MR-J2S-70B-RT	MR-J2S-350CP-S084	MDS-D-SVJ3-01NA
MR-J2S-100B-T004	MR-J2S-350B-EG	MDS-D-SVJ3-02NA
MR-J2S-100B-RT	MR-J2S-350B-EG117	MDS-D-SVJ3-07NA
MR-J2S-70A-PM070	MDS-B-SVJ2-01	MDS-D-SVJ3-10NA
MR-J2S-200A-EJ012	MDS-B-SVJ2-03	MDS-D-SVJ3-20NA
MR-J2S-200B-T004	MDS-B-SVJ2-04	MR-J2S-100CP-S084
MR-J2S-200A-S007	MDS-B-SVJ2-06	MR-J2S-100CP-S186
MR-J2S-200B-S009V613	MDS-B-SVJ2-10	MR-J2S-70B-PY135U504
MR-J2S-200B-RS238	MDS-B-SVJ2-20	MR-J2S-40B-PY135U504
