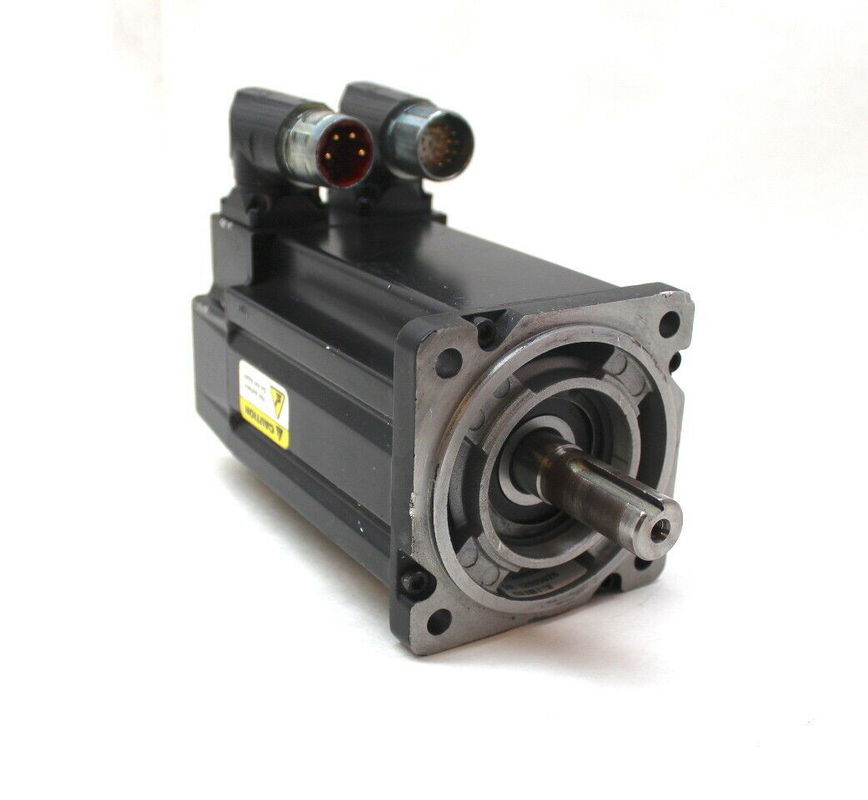

ALLEN-BRADLEY MPM-B320P-MJ72AA MP-Series MPL 480V AC Rotary Servo Motor

Product Description:MPM-B320P-MJ72AA

The MPM-B320P-MJ72AA is a high-performance PMSM designed for applications demanding high torque, high efficiency, and precise speed and position control. It is well-suited for systems requiring both dynamic performance and energy savings in a compact and reliable design.

Key Features:

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)
• Frame Size: 320 (typically indicating the motor's physical size and power class)
• Power Rating: Typically between 5 kW to 10 kW, depending on configuration and application needs
• Feedback System: Integrated encoder for precise position, speed, and torque feedback
• Rated Voltage: Usually available in different voltage configurations such as 230V, 400V, or 480V
• Compatibility: Works with Allen-Bradley Kinetix or PowerFlex drives for optimized control and performance

Features:MPM-B320P-MJ72AA

• Permanent Magnet Rotor Design:

  • The MPM-B320P-MJ72AA motor uses permanent magnets in the rotor, providing high torque density and high efficiency. This design results in more torque output with less power input, improving system energy efficiency.

• Smooth and Quiet Operation:

  • The motor is designed for low cogging, which reduces mechanical vibration and noise. This is particularly important in precision automation tasks or applications that require smooth, low-vibration movement.

• High Efficiency:

  • The MPM-B320P-MJ72AA is engineered to provide superior energy efficiency, reducing the need for excessive energy consumption in high-power applications. This makes the motor an excellent choice for applications that require continuous operation or need to optimize energy costs.

• Precise Motion Control:

  • Integrated with feedback systems (typically encoders), the motor enables closed-loop control to monitor and adjust its position, speed, and torque in real time. This ensures that the motor performs with high precision and reliability.

• High Torque at Low Speeds:

  • The permanent magnet synchronous motor design allows for high torque even at low speeds, which is critical in applications such as robotic arms, CNC machines, and other automation tasks requiring precise movements at low speeds.

• Compact and Robust Design:

  • The motor offers a compact form factor while delivering high torque and efficiency, making it suitable for space-constrained applications without compromising on performance.
  • The robust design ensures the motor performs reliably in harsh industrial environments, including areas with dust, moisture, and temperature fluctuations.

• Seamless Integration with Allen-Bradley Systems:

  • The motor is fully compatible with Allen-Bradley’s Kinetix or PowerFlex drives, which provide advanced motion control, feedback, and diagnostic features. These drives allow for seamless integration, ensuring optimal motor performance, smooth operation, and real-time adjustments.

Technical Parameters:MPM-B320P-MJ72AA

Applications:MPM-B320P-MJ72AA

1. Robotics:

   • Ideal for use in industrial robots and robotic arms that require precise control over positioning and high torque for tasks such as pick-and-place, welding, material handling, and assembly.

2. CNC Machines:

   • Widely used in CNC machining centers for milling, turning, drilling, and engraving operations, where high torque and precision are critical to maintaining part quality and machining accuracy.

3. Material Handling:

   • In automated material handling systems, the motor is used in conveyors, automated guided vehicles (AGVs), and sorting systems to move materials efficiently while maintaining precise control.

4. Packaging and Assembly:

   • Used in automated packaging systems, such as filling, capping, labeling, and sealing machinery, the motor ensures reliable operation and precision in packaging tasks.

5. Printing and Converting:

   • In printing presses, labeling systems, and paper converting, the motor enables high-speed performance while maintaining accuracy for tasks such as cutting, printing, and packaging.

6. Medical Equipment:

   • The motor is employed in medical automation systems like robotic surgery tools, diagnostic equipment, and lab automation systems, where precise control and reliable performance are critical for safety and efficiency.

7. Test and Measurement:

   • In test equipment and inspection systems, the motor provides smooth, accurate motion control to move test fixtures, measurement equipment, or product samples during testing and inspection.

8. Aerospace and Automotive:

   • The motor is used in aerospace assembly lines, automated car manufacturing, and testing stations for precise assembly and high-efficiency operation.

Customization:MPM-B320P-MJ72AA

1. Voltage and Power Configurations:

   • The motor can be customized to support different voltages (230V, 400V, 480V) and power outputs (5 kW to 10 kW) to meet specific application needs.

2. Feedback and Encoder Types:

   • Choose from incremental or absolute encoders based on application requirements for position, speed, and torque feedback.

3. Cooling Options:

   • While the standard motor is typically air-cooled, custom configurations with liquid cooling are available for high-power applications or environments that require enhanced thermal management.

4. IP Ratings:

   • If used in environments with exposure to dust or water, the motor can be configured with a higher IP rating (e.g., IP67) for increased protection against environmental factors.

5. Drive and Communication Integration:

   • The motor can be integrated with Allen-Bradley Kinetix or PowerFlex drives for optimized performance. Communication protocols like Ethernet/IP, Modbus, or CANopen can be selected to ensure seamless integration into existing motion control systems.

6. Mounting and Shaft Configurations:

   • Custom mounting options and shaft configurations (e.g., keyed, flanged, or hollow shaft) can be specified for ease of installation and system integration.
