Mitsubishi Servo Motor HF-KP43 AC Servo Amplifier

Product Descriptions  OF  HF-KP43

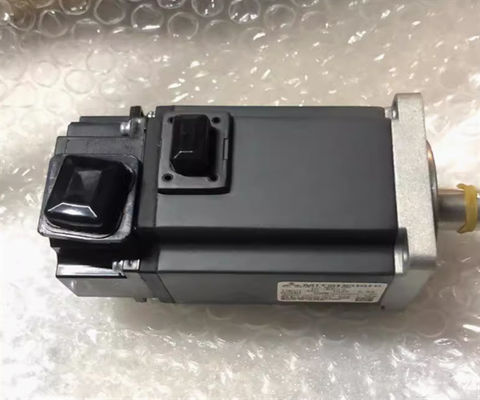

Mitsubishi Electric developed the HF-KP43, an AC brushless rotary servo motor part of the HF-KP series. This motor has a low inertia and a small capacity, making it ideal for applications requiring precise motion control. The HF-KP43 servo motor has a rated power output of 0.4 kilowatts (400 watts), which is sufficient for a variety of industrial automation jobs. It has a rated torque of 1.3 Nm and a maximum torque of 3.8 Nm, so it can easily manage variable load circumstances. The motor's rated rotational speed is 3000 RPM, while its maximum rotational speed rating is 6000 RPM. The low inertia ratings of the HF-KP43 motor allow it to function with quick responses and efficient control. The motor has a rated current of 2.7 amps and a maximum current rating of 8.1 amps, providing enough current for demanding applications. The HF-KP43 servo motor is built to run continuously at its rated torque. The motor's power rate at continuous rated torque is 38.6 kW/s, suggesting its capacity to sustain high power output while retaining consistent performance. The motor lacks an electromagnetic brake and a shaft keyway. It has a standard straight shaft that is compatible with a variety of mechanical systems. The HF-KP43, with an IP65 rating, is resistant to dust and moderate amounts of water, making it suitable for severe use. This level of protection ensures motor reliability and lifetime in extreme industrial applications. This AC servo motor provides a good mix of power, speed, and inertia, making it suited for industrial applications requiring precise and flexible motion control.

The HF-KP43 is an AC servo motor manufactured by Mitsubishi Electric, and it is part of the HF-KP series. This motor is a low-inertia and small-capacity motor that is suitable for applications that require precise motion control. With a rated power output of 0.4 kW, the HF-KP43 servo motor provides sufficient power for various industrial automation tasks. It has a rated torque of 1.3 Nm and a maximum torque of 3.8 Nm, allowing it to handle varying load conditions with ease. The rated speed of the motor is 3000 RPM, and the motor’s maximum speed rating is 6000 RPM. The HF-KP43 motor’s low inertia ratings enable it to operate with quick responses and efficient control. The motor operates at a rated current of 2.7A, and with a maximum current rating of 8.1A, ensuring sufficient current for demanding applications. The HF-KP43 servo motor is designed for continuous operation at its rated torque. The power rate of the motor at the continuous rated torque is specified as 38.6 kW/s, indicating its ability to sustain high-power output while maintaining stable performance. The motor does not include an electromagnetic brake or a shaft keyway. It features a standard straight shaft, which is compatible with a wide range of mechanical systems. With its IP65 protection rating, the HF-KP43 is resistant to dust and moderate amounts of water, making it suitable for operation in harsh environments. This level of protection ensures motor reliability and longevity in applications in demanding industrial settings. In summary, the Mitsubishi HF-KP43 AC servo motor offers a balance of power, speed, and low inertia, making it suitable for industrial applications that require precise and flexible motion control.
