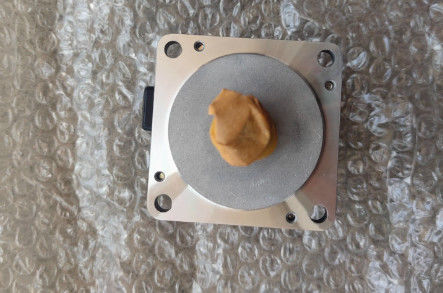

Mitsubishi HF-KP73B Servo Motor HFKP73B With Brake 750W

Product Descriptions   of   HF-KP73B

The HF-KP73B is a HF-KP series servo motor from Mitsubishi Electric. Its output power rating is 750 watts. Motors from the Mitsubishi HF-KP series, such as the HF-KP73B servo motor, are low inertia motors with small capacity ratings. The rated speed of the motor is 3000 RPM, and the maximum speed that the motor can support for specific applications is 6000 RPM. It also supports an instantaneous permitted speed of 6900 RPM. The HF-KP73B motor is equipped with an electromagnetic brake. In order to operate, the HF-KP73B servo motor must be connected to and controlled by a servo drive or servo amplifier. Mitsubishi servo amplifiers that can be used with the HF-KP73B motor include several servo amplifiers from the MR-J3 series. The continuous torque output rating of the motor is 2.4 Nm. The maximum torque output rating of the motor is 7.2 Nm. The power rating at the continuous rated torque is 39.9 kilowatts per second. The moment of inertia rating for the HF-KP73B servo motor is 1.43 kg m2. The recommended ratio of load inertia moment to servo motor shaft inertia moment is 15 times or less. The rated current output of the motor is 5.2 Amps, and the maximum current output is 15.6 Amps. The HF-KP73B motor has an enclosure with an IP65 protection rating and it cools via natural convection. The HF-KP73B motor’s ambient temperature rating for normal operation is 32 to 104 degrees Fahrenheit. The motor can be stored at ambient temperatures between 5 and 158 degrees Fahrenheit. The mass of the HF-KP73B servo motor is 3.9 kilograms or 8.6 pounds.

Technical Specifications for HF-KP73B

Technical Specifications of HF-KP73B

Part Number: HF-KP73B (HFKP73B)
Module Type: Servo Motor with Brake
5.2 AMP
106VAC
CIB 3.5KG
RPM: 3000r/min
Output Wattage: 750W
Weight: 8.6lbs (3.9kg)
