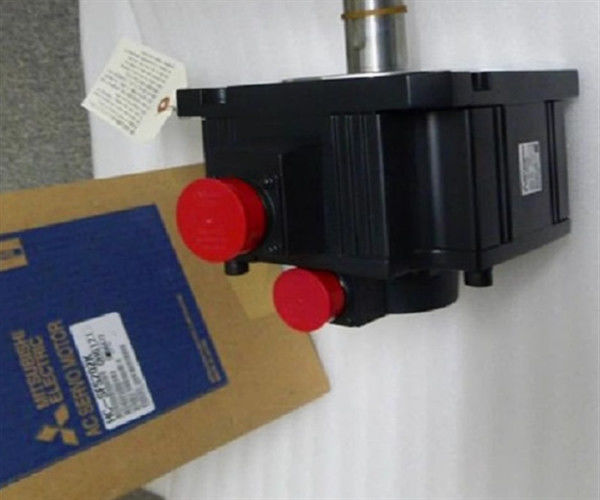

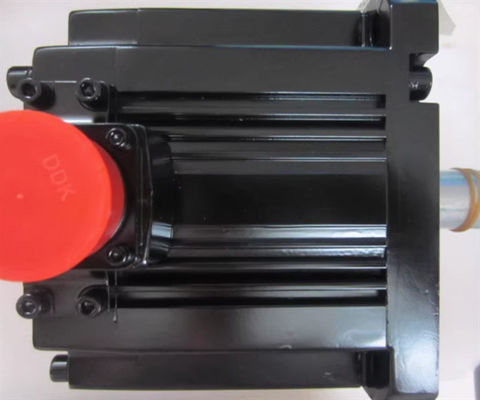

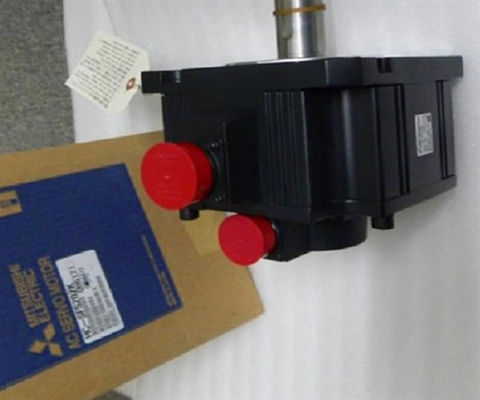

Mitsubishi Servo Motor HF-SP352 AC Servo Amplifier

Product Descriptions of  HF-SP352

The Mitsubishi HF-SP352 is a medium inertia power servo motor designed for industrial applications that require precise control and reliable performance. This servo motor series features a rated output of 3.5 kW and operates at a rated speed of 2000 r/min while the maximum achievable speed is 3000 r/min, making it suitable for medium-power applications. It has a rated torque of 16.7 Nm and the maximum torque reaches 50.1 Nm. The current shows a rated value of 16 Amperes and 48 Ampere maximum value. It comes without an electromagnetic brake and has a standard straight-axis shaft end specification. With an IP level of IP67, the HF-SP352 offers excellent protection against dust and water ingress, making it suitable for use in challenging environments. The servo motor supports ten typical mechanical transmission structures and allows user-defined operating modes, providing flexibility in different applications. The HF-SP352 is designed for flange mounting and can be mounted in any direction, offering ease of installation. It utilizes grease lubrication for smooth operation. The output shaft rotates in the opposite direction to the servo motor shaft. It features a backlash of 40 minutes to 2 times at the reduction gear output shaft, ensuring precise and responsive movements. The servo motor allows a permissible load inertia moment ratio of 4 times or less, ensuring stability in various load conditions. With an efficiency of 85 to 94% in the reduction gear, the HF-SP352 delivers reliable and powerful performance. It does not have a Universal Product Code (UPC) assigned to it, making it a versatile and customizable solution for various industrial applications.

The Mitsubishi HF-SP352 medium inertia servo motor provides accurate motion control in automation systems. It runs smoothly without braking due to no electromagnetic brake. A straight axis and standard shaft end specification make the servo motor versatile for mechanical connections and applications. The HF-SP352 can be used in severe situations because of its IP67 dust and water resistance.
