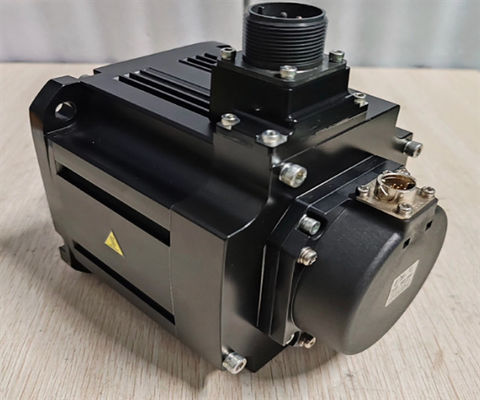

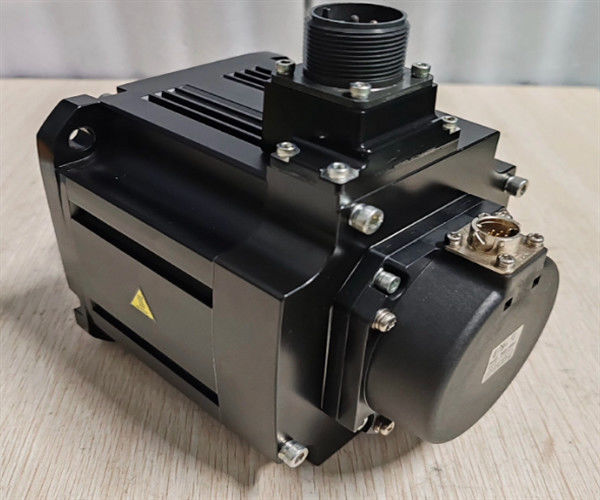

Mitsubishi HF-SP702 Rotary AC Servo Motor HF-SP702B 7 kW

Product Descriptions  of  HF-SP702

Mitsubishi’s HF-SP702B rotary servo motor is engineered for reliability in various applications requiring moderate capacity. It has a rated current of 33A and delivers an output power of 7 kW, making it suitable for demanding tasks. The motor runs primarily at a rotational speed of 2000 rpm and can achieve speeds up to 3000 rpm when necessary.

The nominal torque output of the HF-SP702B stands at 33.4 Nm, while it can handle peak conditions with a maximum torque of 100 Nm. Its medium inertia rating makes it responsive, offering smooth operation across different settings. This unit also includes an electromagnetic brake, enhancing control during dynamic movements.

Constructed with a straight shaft configuration, this motor aligns with standard mechanical systems for straightforward installation. The device is classified under the 200VAC voltage category, ensuring it integrates well with existing electrical systems.

The HF-SP702 B's operating temperature range is between 32 and 104 degrees Fahrenheit, while its storage capabilities extend from 5 to 158 degrees Fahrenheit, providing versatility across multiple environments. It is designed with an IP67 protection rating, offering robust safety against dust and water ingress, ideal for challenging industrial environments.

The Mitsubishi HF-SP702B rotary servo motor offers solid performance for medium-capacity applications. It provides an output power of 7 kW and operates efficiently at a rated current of 33A, achieving a nominal torque of 33.4 Nm.
