Product Descriptions  OF  HF-SP81

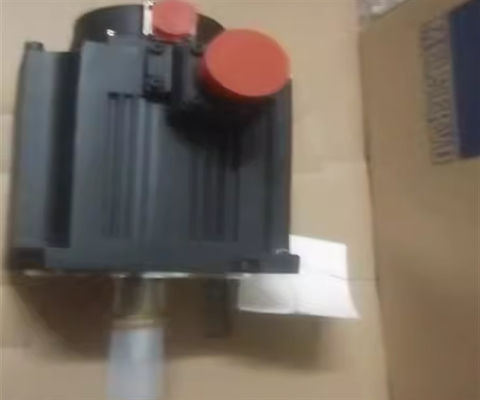

Part of the HF Series by Mitsubishi, the HF-SP81 brushless servo motor offers substantial performance in a compact design. The motor operates with rated dimensions of 177.5 mm in height, 130 mm in width, and 217.5 mm in depth. It generates an output of 0.85 kilowatts, achieving a rotational speed of 1,000 RPM. When handling loads, it maintains a standard torque rating of 8.12 Newton-meters, with the ability to peak at 24.4 Newton-meters, giving it the versatility needed for varied operations.

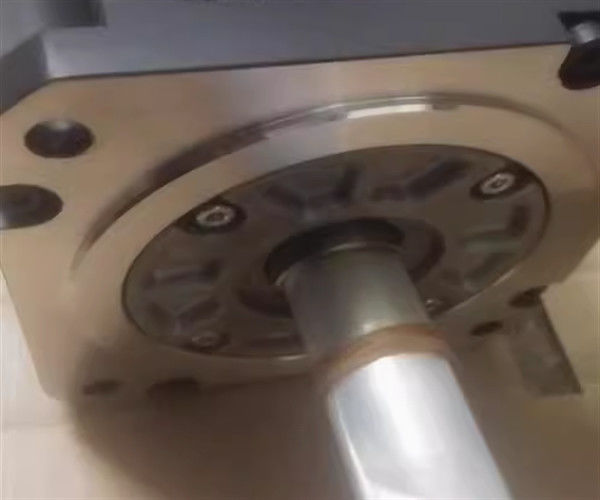

The HF-SP81 is designed with a straight shaft configuration, classified under medium capacity operations. It offers a current rating of 4.5 Amps but can manage up to 13.5 Amps at maximum capacity. This servo motor is built to handle environmental stressors with an IP67 enclosure rating, providing robust protection against dust and water ingress. With operational limits that allow for a temperature range of 0 to 40 degrees Celsius during use, it can also withstand storage temperatures from -15 to 70 degrees Celsius, making it suitable for diverse conditions. Additionally, this motor operates at a voltage of 200VAC, further emphasizing its adaptability in various industrial tasks.

The Mitsubishi HF-SP81 is a brushless servo motor that operates within the HF Series. With a noteworthy output rating of 0.85 kilowatts, it reaches speeds of 1,000 RPM while providing dependable torque performance.
