IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier

IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier

  • IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier
  • IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier
  • IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier
  • IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier
IC200CHS002J Redundant Power Supply Module 24VoltGE Box Style I /O Carrier
Product Details:
Place of Origin: USA
Brand Name: GE
Model Number: IC200CHS002J
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negitiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: Redundant Power Supply Module IC200CHS002J Product: Redundant Power Supply Module
Model: IC200CHS002J Brand: GE
Voltage: 24Volt Redundant: 12
Input Channels: 32 Country Of Origin: USA
High Light:

IC200CHS002J Redundant Power Supply Module

,

Redundant Power Supply Module 24Volt

,

analog interface module 32 channels

Redundant Power Supply Module IC200CHS002J GE Box-Style I/O Carrier







Redundant Power Supply Module Quick Details

Brand GE Fanuc
Series Versamax
Manufacturer GE Intelligent Platforms (Former); Emerson Automation (Current)
Part Number IC200CHS002
Series VersaMax
Part Number IC200CHS002
Product Type Box-style terminal I/O carrier
Box-Style Terminals 36
Product Description I/O Carrier Module
Carrier module style Box style
Dimensions Height: 133.4 mm (5.25 in) Length: 66.80 mm (2.63 in)
Single Copper Wire Size 2.1 mm2 to 0.36 mm2
Field Termination type Integrated
Dual Copper Wire Size up to 0.86 mm2
No. of Terminals 36 terminal
Terminal Torque 0.37 to 0.45 pounds on a foot
Compatible wire size AWG # 14 to AWG #22 for single wire connection; AWG #18 for Two (2) wire connection
Per Power/Ground Current 8 Amps
Voltage rating 0-264 VAC
Per Point Current 2 Amps
Current rating, per point 2 Amperes
Current rating per ground and power segment 8 Amperes
Transient Voltage rating up to 300 VAC
Mounting DIN Rail
Mounting orientation Horizontal
Mounting clearance Top and bottom: 2 inches (5.1cm) Side:1 inch (2.54cm)






OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-







Product Description of Redundant Power Supply Module

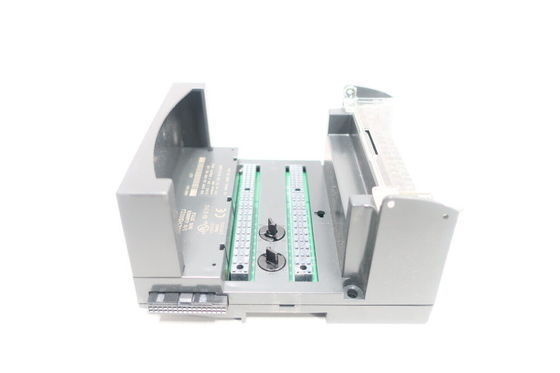

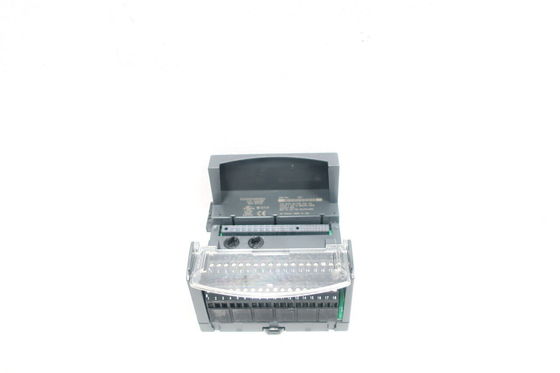

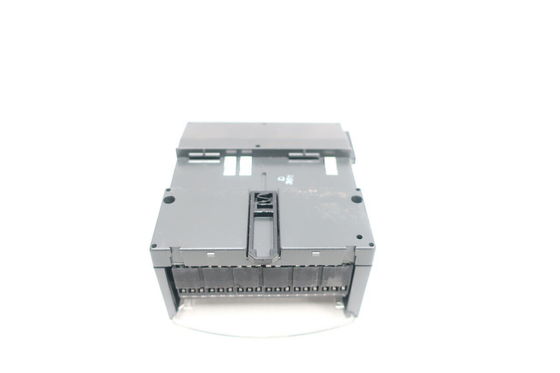

IC200CHS002 is a Box-Style I/O Carrier manufactured by Ge Fanuc for its VersaMax series. This carrier is comprised of 36 IEC box-style terminals. The IC200CHS002 provides backplane communications, mounting, and field wiring for one input-output module.

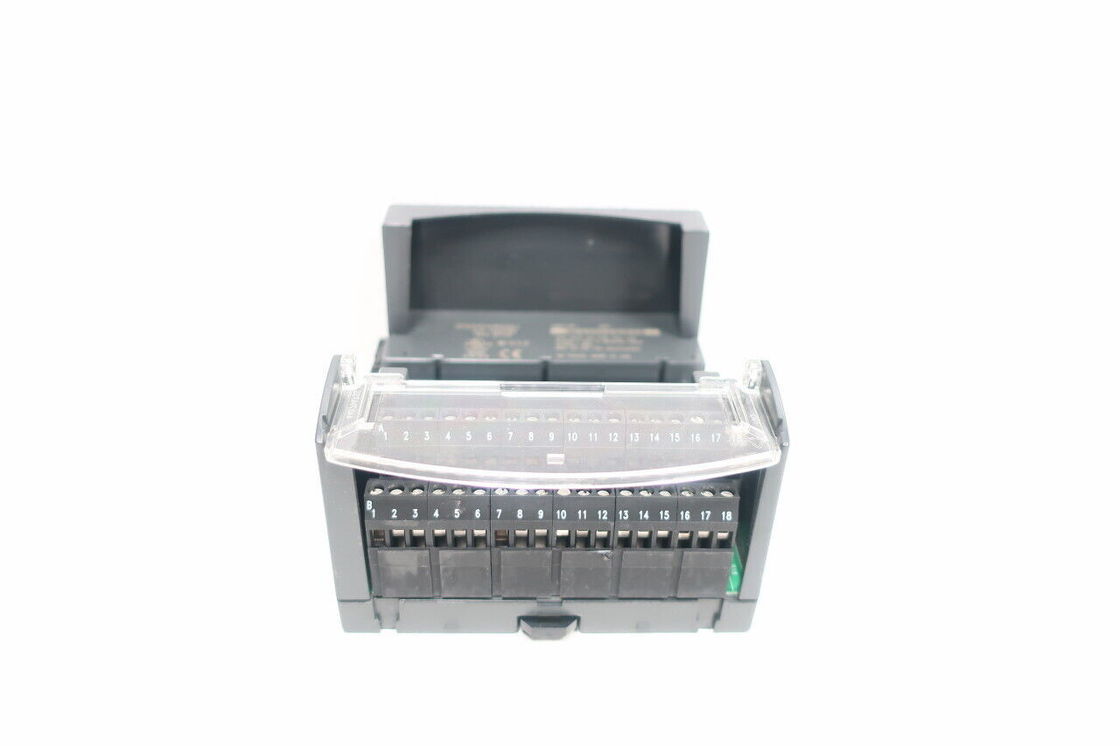

The IC200CHS002 has many features including its ability to support wiring for a maximum of 32 input output points plus 4 shared power connections. The carrier is equipped with a set of easily set keying controls to ensure proper installation of the correct module type. Keys are set to match the keying at the basement of the module, and carrier-to-carrier male/female connectors facilitate quick installation of connections at the backplane without the need of additional cables or tools. A module latch hole is used to secure the module to the carrier, and a transparent protective hinged door covers the wiring terminals. An auxiliary input output terminal strip allows the use of additional bussed connection points.



During mounting, the IC200CHS002 easily snaps onto a 7.5 mm x 35 mm DIN rail. It is important to electrically ground the DIN rail to provide EMC protection. The rail must have a conductive corrosion-resistant finish, preferably unpainted. For those applications that require maximum resistance to mechanical vibration and shock, the IC200CHS002 must be panel-mounted. During field wiring, each terminal should accommodate one solid /stranded AWG of 14 to AWG of 22 or two wires up to AWG of 18.









Similar Products OF  Redundant Power Supply Module
IC670ALG230 Analog Input Current 8 Pt. Grouped
IC670ALG240 Analog Input Current 16 Channel
IC670ALG620 RTD 4 Channel Isolated 3 wire
IC670ALG630 TC 8 Channel
IC670ALG310 Analog Output Voltage, 8 Channel, +/-10V, 0 to 10V
IC670ALG320 Analog Output Current/Voltage 4 Pt. Grouped
IC670ALG330 Analog Output Current, 8 Channel
IC670GBI002 Genius Bus Interface Unit (BIU)
IC670GBI102 120Vac/125Vdc Powered Genius Bus Interface Unit
IC670PBI001 Profibus Bus Interface Unit, DP 12M Baud
IC670CBL002 21" I/O Expansion Cable
IC670CBL003 Cable for Connector Style I/O Base (IC670CHS003), 2 Meter, 18 AWG, Connector on One End
IC670CBL004 Cable for Connector Style I/O Base (IC670CHS003) to TC Cold Junction Compensation Base (IC670CHS004), 1 Meter, Mating Connector on Both Ends
IC670MDL233 120VAC 8 PT Isolated Input
IC670MDL240 120VAC Input 16 Pt. Grouped
IC670MDL241 240VAC Input 16 pt, 2 groups of 8
IC670MDL640 24VDC Pos./Neg. Logic Input 16 Pt. Grouped
IC670MDL641 48VDC Pos./Neg. Logic Input 16 Pt. Grouped
IC670MDL642 125VDC Pos./Neg. Logic Input 16 Pt. Grouped
IC670MDL643 5/12Vdc Pos./Neg. Logic Input 16pt Grouped
IC670MDL644 24VDC Pos./Neg. Logic Fast Input 16pt Grouped







OTHER SUPERIOR PRODUCTS

NTPL01 PLC Programmable Logic Controlle TERMINATION UNIT no longer availabl 0





FAQ



Q1. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.



Q2. Do you have any MOQ limit of Industrial Servo Drives?

A: Low MOQ, 1pc is available.



Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
