VE3007 MX KJ2005X1-BA1 Emerson Power Supply Module Controller

VE3007 MX KJ2005X1-BA1 Emerson Power Supply Module Controller

  • VE3007 MX KJ2005X1-BA1 Emerson Power Supply Module Controller
  • VE3007 MX KJ2005X1-BA1 Emerson Power Supply Module Controller
VE3007 MX KJ2005X1-BA1 Emerson Power Supply Module Controller
Product Details:
Place of Origin: U.S.A / Thailand / UK
Brand Name: Emerson
Certification: CE
Model Number: KJ2005X1-BA1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: KJ2005X1-BA1 Brand: Emerson DeltaV
Condition: NEW ORIGINAL TYPE: Terminal Block
Category: Redundant Power Supply Module System: Fisher-Rosemount System
High Light:

VE3007 emerson power supply module

,

KJ2005X1-BA1 emerson power supply module

,

KJ2005X1-BA1

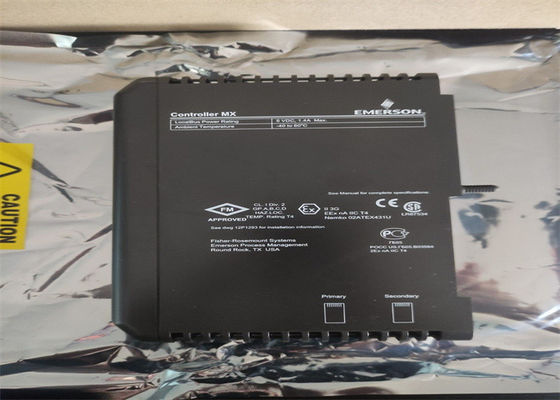

VE3007 | DeltaV | MX Controller KJ2005X1-BA1 Supply Module Emerson Controller



  • Manufacturer : DeltaV
  • Product No. : VE3007
  • Product Type : MX Controller
  • Power requirement : Supplied by System Power Supply through 2-wide Power/ Controller Carrier
  • Fuse protection : 3.0 A, non-replaceable fuses
  • Power dissipation : 5.0 W typical, 7.0 W maximum
  • Mounting On right slot of power/controller carrier.
  • User Memory : 96 MB
  • Shipping weight : 5 Kg

Other Emerson products

KJ2003X1-BB1 12P3439X012
KJ1501X1-BC3
KJ2201X1-BA1 12P3162X102
KJ3202X1-BA1
KJ3222X1-BA1
KJ3243X1-BA1
KJ3002X1-BG1
KJ3002X1-BB1
KJ3001X1-BB1
KJ3002X1-BC1
KJ3002X1-BF1
KJ3001X1-BJ1
KJ2002X1-BA1
KJ3004X1-BA1
KJ1501X1-BB1
KJ4001X1-CA1
KJ4001X1-CC1
KJ4001X1-CG1
KJ4001X1-CH1
KJ3004X1-EA1
KJ4001X1-BA2
KJ4001X1-BE1 12P0818X072
KJ4001X1-CB1
KJ2005X1-MQ1
KJ3221X1-BA1
KJ4001X1-BA3
KJ1501X1-BA1



Hazardous Atmosphere

II 3 G Nemko No. 02ATEX431U EEx nA IIC T4



Power Specifications

LocalBus power rating +5 VDC at 1.4 A



Environmental Specifications

Ambient Temperature -40 to 60° C Shock 10 G ½-sinewave for 11 ms Vibration 1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz Airborne Contaminants ISA-S71.04 –1985 Airborne Contaminants Class G3 Relative Humidity 5% to 95% non-condensing Note: See product label for serial number and location and date of manufacture. Warning: This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV ™ Scalable Process System Zone 2 Installation Instructions". Other installation instructions are available in the "Installing Your DeltaV Automation System" manual. The communications network connected to the DeltaV Controller must not be connected to a source that generates or contains under normal conditions a potential in excess of 60 VAC or 75 VDC.



Removal and Insertion

This unit cannot be removed or inserted with system power energized.



Maintenance and Adjustment

This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.







Certifications



The following certifications are available on the MX controller. „ CE: EMC- EN 61326-1 „ FM: FM 3600 FM 3611 „ CSA: CSA C22.2 No. 213 CSA C22.2 No. 61010-1 „ ATEX: EN 60079-0 EN 60079-7 „ IEC Ex: IEC60079-0 IEC60079-7 „ Marine Certifications: IACS E10 ABS Certificate of Design Assessment DNV-GL Type Approval Certificate „ Wurldtech: Achilles Communications Certification Level 1 (v12.3and v13.3.1) Achilles Communications Certification Level 2 (v14.3.1 pending)
