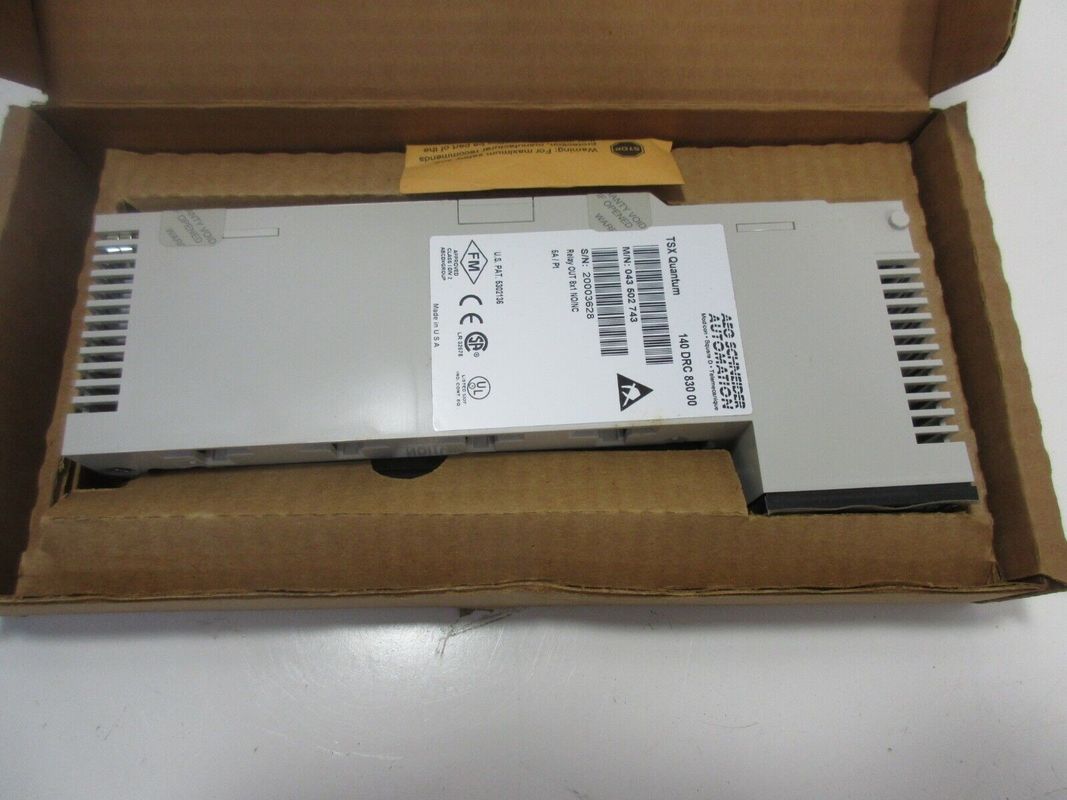

140DRC83000 Redundant Power Supply Module Schndier Modicon Quantum I / O

140DRC83000 Redundant Power Supply Module Schndier Modicon Quantum I / O

  • 140DRC83000  Redundant Power Supply Module Schndier Modicon Quantum I / O
  • 140DRC83000  Redundant Power Supply Module Schndier Modicon Quantum I / O
  • 140DRC83000  Redundant Power Supply Module Schndier Modicon Quantum I / O
140DRC83000  Redundant Power Supply Module Schndier Modicon Quantum I / O
Product Details:
Place of Origin: France
Brand Name: Schndier
Model Number: 140DRC83000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negitiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: Redundant Power Supply Module 140DRC83000 Product: Redundant Power Supply Module
Model: 140DRC83000 Brand: Modicon
Addressing Requirement:: 0.5output Word Redundant: 12
Discrete Output Number:: 8 Country Of Origin: France
High Light:

Redundant Power Supply Module Quantum I

,

Redundant Power Supply Module Schndier

,

140DRC83000

Redundant Power Supply Module 140DRC83000 Schndier Modicon Quantum I/O





Product Description of Redundant Power Supply Module 140DRC83000

The Quantum 140DRC83000 Relay Output Module provides 8x1 Normally Open/Normally Closed Relay outputs. A Quantum removable terminal strip allows for easy maintenance. Quantum backplanes (ordered separate ly) come in 2,3,4,6,10, and 16 slot versions. Any Quantum module can be used in any slot. A Quantum power supply is required in each rack. The power supply provides logic power to all modules on the bus. All Quantum I/O modules are optically isolated from the bus, ensuring safe and trouble-free operation. Optionally, you can inse rt mechanical keys between the I/O module and the terminal strip to ensure that the field wiring and the module type are properly matched. Key codes are unique for each module type. Key kits are shipped with each I/O module. As an option, modules can be ordered with a conformal coating applied to protect the internal circuitry from corrosive gases su ch as Chlorine, Nitric Oxide, Hydrogen Sulfide and Sulfur Dioxide.





OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-




Specifications OF Redundant Power Supply Module  140DRC83000

Manufacturer: Modicon Quantum
Series: Quantum I/O
Weight: 2 lb
Product or component type: Relay discrete output module
Discrete output number: 8
Contacts type and composition: 1 NO/NC
Contact form: Form C
Discrete output voltage: 20...250 V AC
30...150 V DC
5...30 V DC
Addressing requirement: 0.5 output word
Maximum load current: 100 mA 30...50 V DC L/R = 10 ms
2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4
3 A 250/30 V AC/DC
300 mA 30...50 V DC resistive
5 A 250/30 V AC/DC resistive at 60 °C
Surge current: <= 20 A for 10 ms capacitive
Switching frequency: 30 Hz resistive
F = 0.5/I²L inductive
Switching capacity in VA: 1250 VA resistive
Response time on input opening: <= 10 ms at state 0 to state 1
<= 20 ms at state 1 to state 0
Mechanical durability: 10000000 cycles
Electrical durability: 100000 cycles 100 mA 30...150 V DC L/R = 10 ms
100000 cycles 30...150 V DC interposing relay
100000 cycles 300 mA 30...150 V DC resistive
100000 cycles 5 A 30 V DC resistive
200000 cycles 5 A 250 V AC resistive
50000 cycles 500 mA 30...150 V DC resistive
Output overvoltage protection: Internal by varistor, 275 V
Isolation between channels: 1780 Vrms AC for 1 minute
2500 V DC
Isolation between channels and bus: 1780 Vrms AC for 1 minute
2500 V DC for 1 minute
Power dissipation: 2.75 W + (0.5 x the number of points on)
Marking: CE
Local signalling: 1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
8 LEDs green input status
Bus current requirement: 560 mA
Module format: Standard




Similar Products OF  Redundant Power Supply Module
IC670ALG230 Analog Input Current 8 Pt. Grouped
IC670ALG240 Analog Input Current 16 Channel
IC670ALG620 RTD 4 Channel Isolated 3 wire
IC670ALG630 TC 8 Channel
IC670ALG310 Analog Output Voltage, 8 Channel, +/-10V, 0 to 10V
IC670ALG320 Analog Output Current/Voltage 4 Pt. Grouped
IC670ALG330 Analog Output Current, 8 Channel
IC670GBI002 Genius Bus Interface Unit (BIU)
IC670GBI102 120Vac/125Vdc Powered Genius Bus Interface Unit
IC670PBI001 Profibus Bus Interface Unit, DP 12M Baud
IC670CBL002 21" I/O Expansion Cable
IC670CBL003 Cable for Connector Style I/O Base (IC670CHS003), 2 Meter, 18 AWG, Connector on One End
IC670CBL004 Cable for Connector Style I/O Base (IC670CHS003) to TC Cold Junction Compensation Base (IC670CHS004), 1 Meter, Mating Connector on Both Ends
IC670MDL233 120VAC 8 PT Isolated Input
IC670MDL240 120VAC Input 16 Pt. Grouped
IC670MDL241 240VAC Input 16 pt, 2 groups of 8
IC670MDL640 24VDC Pos./Neg. Logic Input 16 Pt. Grouped
IC670MDL641 48VDC Pos./Neg. Logic Input 16 Pt. Grouped
IC670MDL642 125VDC Pos./Neg. Logic Input 16 Pt. Grouped
IC670MDL643 5/12Vdc Pos./Neg. Logic Input 16pt Grouped
IC670MDL644 24VDC Pos./Neg. Logic Fast Input 16pt Grouped





NTPL01 PLC Programmable Logic Controlle TERMINATION UNIT no longer availabl 0



Frequenty Asked Questions of Redundant Power Supply Module 140DRC83000


What makes Industrial Trading the best source for the SCHNEIDER ELECTRIC 140DRC83000?
Industrial Trading is a service of WTL , an ISO 9001:2015-certified company that specializes in selling parts that are obsolete or hard to find. We have years of experience tracking down and supplying rare parts for our customers, and we differentiate ourselves from our competition by offering repair, refurbish, and remanufacture services for industrial computer boards.


Is the SCHNEIDER ELECTRIC 140DRC83000 rare?
Some of the parts on WTL can be very difficult to find. Many are no longer in production and have reached end-of-life status. Once your quote request has been received, WTLwill begin the process of locating for the 140DRC83000. The pricing will be better if no one stirs up the market.


What does "stirring up the market" mean, and why should it be avoided?
Stirring up the market is what happens when many different suppliers are all contacted regarding the same part. It makes other suppliers believe the part is in much higher demand than it might actually be, resulting in raised prices and lower availability. In order to prevent this costly outcome,WTL highly recommends limiting the number of potential suppliers you reach out to for rare parts.


What happens after I receive the quote for the 140DRC83000?
Review the quote to make sure it meets your needs. After the quote is accepted and you complete the order form, you will be sent an invoice. It is important that you remit payment immediately after receiving your invoice as any delay could result in the 140DRC83000 being sold to another customer.


What forms of payment are accepted?
We accept all major credit cards (Visa, MasterCard, American Express, and Discover). We also accept wire transfers and PayPal. Checks will only be accepted from customers in the USA. For large orders from repeat customers, terms may be granted pending qualification.


How will the 140DRC83000 be shipped to me?
We generally ship via FedEx, UPS, DHL, and USPS, and we are more than happy to use your preferred carrier or account. We do ship to international (non-USA) customers, as well.


What is the estimated lead time for receiving the 140DRC83000?
The primary factor in lead time for the 140DRC83000 is availability. If we do not currently have the 140DRC83000 in our inventory, we will check with our trusted suppliers for stock. Services such as repair or refurbishment could affect lead time, as well.
