Place of Origin: | Singapore |
Brand Name: | ROSEMOUNT |
Certification: | Does not supply |
Model Number: | 3051L2AA0D21AAF1 |
Minimum Order Quantity: | 1 ea |
---|---|
Price: | Negotiate |
Packaging Details: | Nos |
Delivery Time: | 4-6WEEKS |
Payment Terms: | T/T,PAYONEER |
Supply Ability: | 50EA,8weeks |
BRAND: | EMERSON ROSEMOUNT | MODEL: | 3051L2AA0D21AAF1 |
---|---|---|---|
CATEGORY: | Level Transmitter | SUPPLY: | 4-20mA |
Measurement Type: | No | Delivery Time: | 4-6 Weeks |
Weight: | Nos | ||
Highlight: | 3051L2AA0D21AAF1 rosemount 3051 flow meter,20mA rosemount 3051 flow meter,rosemount level measurement 20mA |

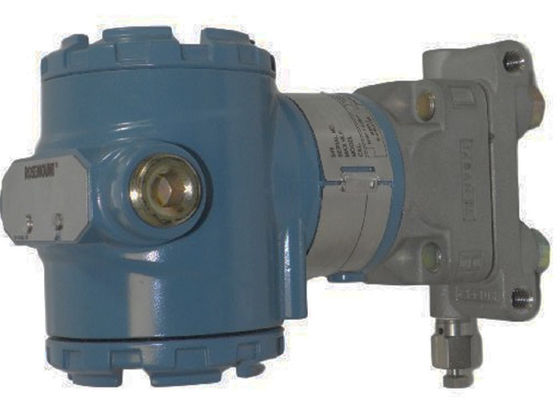

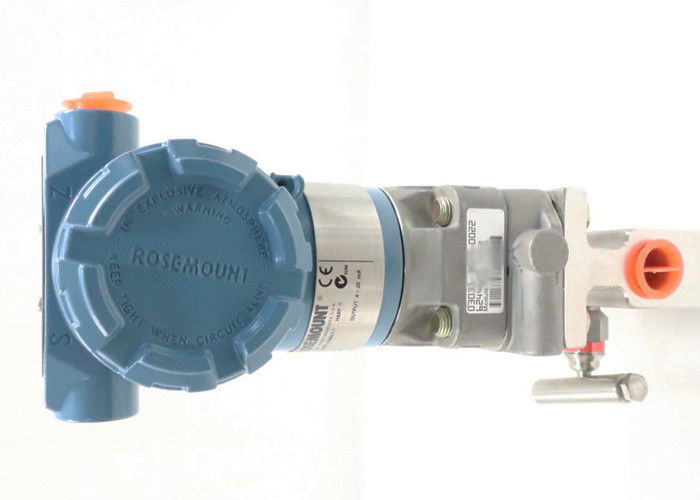

3051L2AA0D21AAF1 Level Transmitter Rosemount 3051L Transmitter
Product Information Of: 3051L2AA0D21AAF1
Brand | 3051L2AA0D21AAF1 |
SUPPLY |
0 to 621,60 mbar |
SIZE | Does not supply |
Weight | 5KG |
(1)Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
(2)Option code M4 - LCD display with LOI required for local addressing and configuration.
(3)Requires wireless options and engineered polymer housing. Available approvals are FM Intrinsically Safe, (option code I5), CSA Intrinsically Safe (option code I6), ATEX Intrinsic Safety (option code I1), IECEx Intrinsic Safety (option code I7), and EAC Intrinsic Safety (option code IM).
(4)Only available with C6, E2, E5, I5, K5, KB, and E8 approval. Not available with GE, GM, SBS, DA0, M4, D4, DZ, QT, HR5, HR7, CR, CS, or CT.
(5)Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
More options :
MR-J2S-10A
MR-J2S-10B
MR-J2S-20A
MR-J2S-20B
MR-J2S-40A
MR-J2S-40B
MR-J2S-60A
MR-J2S-60B
MR-J2S-70A
MR-J2S-70B
MR-J2S-100A
MR-J2S-100B
MR-J2S-200A
MR-J2S-200B
MR-J2S-350A
MR-J2S-350B
MR-J2S-500A
MR-J2S-500B
MR-J2S-700A
MR-J2S-700B
Rosemount 3051L Level Transmitter Information:
Model | Transmitter type | |||
3051L | Level transmitter | |||
Pressure range | ||||
2 | –250 to 250 in H2O (–621,60 to 621,60 mbar) | ★ | ||
3 | –1000 to 1000 in H2O (–2,48 to 2,48 bar) | ★ | ||
4 | –300 to 300 psi (–20,68 to 20,68 bar) | ★ | ||
Transmitter output | ||||
A(1) | 4–20 mA with digital signal based on HART® Protocol | ★ | ||
F | FOUNDATION™ Fieldbus Protocol | ★ | ||
W(2) | PROFIBUS® PA Protocol | ★ | ||
X(3) | Wireless (requires wireless options and engineered polymer housing) | ★ | ||
M(4) | Low-power 1–5 Vdc with digital signal based on HART Protocol | |||
Process connection size, material, extension length (high side) | ||||
Code | Process connection size | Material | Extension length | |
G0(5) | 2-in./DN 50/A | 316L SST | Flush mount only |
★ |
H0 (5) | 2-in./DN 50 | Alloy C-276 | Flush mount only | ★ | |
J0 | 2-in./DN 50 | Tantalum | Flush mount only | ★ | |
A0(5) | 3-in./DN 80 | 316L SST | Flush mount | ★ | |
A2(5) | 3-in./DN 80 | 316L SST | 2-in./50 mm | ★ | |
A4(5) | 3-in./DN 80 | 316L SST | 4-in./100 mm | ★ | |
A6(5) | 3-in./DN 80 | 316L SST | 6-in./150 mm | ★ | |
B0(5) | 4-in./DN 100 | 316L SST | Flush mount | ★ | |
B2(5) | 4-in./DN 100 | 316L SST | 2-in./50 mm | ★ | |
B4(5) | 4-in./DN 100 | 316L SST | 4-in./100 mm | ★ | |
B6(5) | 4-in./DN 100 | 316L SST | 6-in./150 mm | ★ | |
C0(5) | 3-in./DN 80 | Alloy C-276 | Flush mount | ★ | |
C2(5) | 3-in./DN 80 | Alloy C-276 | 2-in./50 mm | ★ | |
C4(5) | 3-in./DN 80 | Alloy C-276 | 4-in./100 mm | ★ | |
C6(5) | 3-in./DN 80 | Alloy C-276 | 6-in./150 mm | ★ | |
D0(5) | 4-in./DN 100 | Alloy C-276 | Flush mount | ★ | |
D2(5) | 4-in./DN 100 | Alloy C-276 | 2-in./50 mm | ★ | |
D4(5) | 4-in./DN 100 | Alloy C-276 | 4-in./100 mm | ★ | |
D6(5) | 4-in./DN 100 | Alloy C-276 | 6-in./150 mm | ★ | |
E0 | 3-in./DN 80 | Tantalum | Flush mount only | ★ | |
F0 | 4-in./DN 100 | Tantalum | Flush mount only | ★ | |
Mounting flange size, rating, material (high side) | |||||
Size | Rating | Material | |||
M | 2-in. | ANSI/ASME B16.5 Class 150 | CS | ★ | |
A | 3-in. | ANSI/ASME B16.5 Class 150 | CS | ★ | |
B | 4-in. | ANSI/ASME B16.5 Class 150 | CS | ★ | |
N | 2-in. | ANSI/ASME B16.5 Class 300 | CS | ★ | |
C | 3-in. | ANSI/ASME B16.5 Class 300 | CS | ★ | |
D | 4-in. | ANSI/ASME B16.5 Class 300 | CS | ★ | |
P | 2-in. | ANSI/ASME B16.5 Class 600 | CS | ★ | |
E | 3-in. | ANSI/ASME B16.5 Class 600 | CS | ★ | |
X(5) | 2-in. | ANSI/ASME B16.5 Class 150 | 316 SST | ★ | |
F(5) | 3-in. | ANSI/ASME B16.5 Class 150 | 316 SST | ★ | |
G(5) | 4-in. | ANSI/ASME B16.5 Class 150 | 316 SST | ★ | |
Y(5) | 2-in. | ANSI/ASME B16.5 Class 300 | 316 SST | ★ | |
H(5) | 3-in. | ANSI/ASME B16.5 Class 300 | 316 SST | ★ | |
J(5) | 4-in. | ANSI/ASME B16.5 Class 300 | 316 SST | ★ |
Z(5) | 2-in. | ANSI/ASME B16.5 Class 600 | 316 SST | ★ | |||
L(5) | 3-in. | ANSI/ASME B16.5 Class 600 | 316 SST | ★ | |||
Q | DN 50 | PN 10-40 per EN 1092-1 | CS | ★ | |||
R | DN 80 | PN 40 per EN 1092-1 | CS | ★ | |||
S | DN 100 | PN 40 per EN 1092-1 | CS | ★ | |||
V | DN 100 | PN 10/16 per EN 1092-1 | CS | ★ | |||
K(5) | DN 50 | PN 10-40 per EN 1092-1 | 316 SST | ★ | |||
T(5) | DN 80 | PN 40 per EN 1092-1 | 316 SST | ★ | |||
U(5) | DN 100 | PN 40 per EN 1092-1 | 316 SST | ★ | |||
W(5) | DN 100 | PN 10/16 per EN 1092-1 | 316 SST | ★ | |||
7(5) | 4 in. | ANSI/ASME B16.5 Class 600 | 316 SST | ★ | |||
1 | N/A | 10K per JIS B2238 | CS | ||||
2 | N/A | 20K per JIS B2238 | CS | ||||
3 | N/A | 40K per JIS B2238 | CS | ||||
4(5) | N/A | 10K per JIS B2238 | 316 SST | ||||
5(5) | N/A | 20K per JIS B2238 | 316 SST | ||||
6(5) | N/A | 40K per JIS B2238 | 316 SST | ||||
Seal fill fluid (high side) | Specific gravity | Temperature limits (ambient temperature of 70° F [21° C]) | |||||
D | Silicone 200 | 0.93 | –49 to 401 °F (–45 to 205 °C) | ★ | |||
F | Silicone 200 for vacuum applications | 0.93 | For use in vacuum applications below 14.7 psia (1 bar-a), refer to vapor pressure curves in Rosemount DP Level Fill Fluid Specification Technical Note. | ★ | |||
L | Dow Corning® 704 diffusion pump fluid | 1.07 | 32 to 401 °F (0 to 205 °C) | ★ | |||
C | D.C. Silicone 704 for vacuum applications | 1.07 | For use in vacuum applications below 14.7 psia (1 bar-a), refer to vapor pressure curves in Rosemount DP Level Fill Fluid Specification Technical Note. | ★ | |||
A | SYLTHERM™ XLT | 0.85 | –102 to 293 °F (–75 to 145 °C) | ★ | |||
H | Inert (halocarbon) | 1.85 | –49 to 320 °F (–45 to 160 °C) | ★ | |||
G | Glycerin and water | 1.13 | 5 to 203 °F (–15 to 95 °C) | ★ | |||
N | Neobee® M-20 | 0.92 | 5 to 401 °F (–15 to 205 °C) | ★ | |||
P | Propylene glycol and water | 1.02 | 5 to 203 F (–15 to 95 °C) | ★ | |||
Low pressure side | |||||||
Configuration | Flange adapter | Diaphragm material | Sensor fill fluid | ||||
11(5) | Gage | SST | 316L SST | Silicone | ★ | ||
21 | Differential | SST | 316L SST | Silicone | ★ |
22(5) | Differential | SST | Alloy C-276 | Silicone | ★ |
2A(6) | Differential | SST | 316L SST | Inert (halocarbon) | ★ |
2B(5) (6) | Differential | SST | Alloy C-276 | Inert (halocarbon) | ★ |
31(5) | Tuned-system assembly with remote seal | None | 316L SST | Silicone (requires option code S1) | ★ |
O-ring | |||||
A | Glass-filled PTFE | ★ | |||
Housing material | Conduit entry size | ||||
A | Aluminum | ½–14 NPT | ★ | ||
B | Aluminum | M20 x 1.5 | ★ | ||
E | Aluminum, ultra low copper | ½–14 NPT | |||
F | Aluminum, ultra low copper | M20 x 1.5 | |||
J | SST | ½–14 NPT | ★ | ||
K | SST | M20 x 1.5 | ★ | ||
P(7) | Engineered polymer | No conduit entries | ★ | ||
D(8) | Aluminum | G½ | |||
M(8) | SST | G½ | |||
Wireless options (requires wireless output code X and Engineered Polymer Housing code P) | |||||
Wireless transmit rate, operating frequency, and protocol | |||||
WA3 | User configurable transmit rate, 2.4 GHz WirelessHART | ★ | |||
Antenna and SmartPower | |||||
WP5 | Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately) | ★ | |||
Options (include with selected model number) | |||||
Extended product warranty | |||||
WR3 | 3-year limited warranty | ★ | |||
WR5 | 5-year limited warranty | ★ | |||
Plantweb™ control functionality(9) | |||||
A01 | FOUNDATION Fieldbus Control Function Block Suite | ★ | |||
Plantweb diagnostic functionality | |||||
DA0(20) | Loop Integrity HART Diagnostic | ★ | |||
D01(9) | FOUNDATION Fieldbus diagnostics suite | ★ | |||
Seal assemblies(10) | |||||
S1 | Assembled to One Rosemount 1199 Seal | ★ | |||
Product certifications | |||||
E8 | ATEX Flameproof and Dust Certification | ★ |
I1(11) | ATEX Intrinsic Safety and Dust | ★ |
IA | ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only | ★ |
N1 | ATEX Type n Certification and Dust | ★ |
K8 | ATEX Flameproof, Intrinsic Safety, Type n, and Dust (combination of E8, I1, and N1) | ★ |
E4(12) | TIIS Flameproof | ★ |
E5 | FM Explosion-proof, Dust Ignition-proof | ★ |
I5(13) | FM Intrinsically Safe, Nonincendive | ★ |
IE | FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only | ★ |
K5 | FM Explosion-proof, Dust Ignition-Proof, Intrinsically Safe, and Division 2 | ★ |
C6 | CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 | ★ |
I6(7) | CSA Intrinsic Safety | ★ |
K6 | CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1) | ★ |
E7 | IECEx Flameproof, Dust Ignition-proof | ★ |
I7 | IECEx Intrinsic Safety | ★ |
N7 | IECEx Type n Certification | ★ |
K7 | IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7, and E7) | ★ |
E2 | INMETRO Flameproof | ★ |
I2 | INMETRO Intrinsic Safety | ★ |
IB | INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only | ★ |
K2 | INMETRO Flameproof, Intrinsic Safety | ★ |
E3 | China Flameproof | ★ |
I3 | China Intrinsic Safety | ★ |
N3 | China Type n | ★ |
EM | Technical Regulations Customs Union (EAC) Flameproof | ★ |
IM | Technical Regulations Customs Union (EAC) Intrinsic Safety | ★ |
KM | Technical Regulations Customs Union (EAC) Flameproof and Intrinsic Safety | ★ |
KB | FM and CSA Explosion-proof, Dust Ignition Proof, Intrinsically Safe, and Division 2 (combination of K5 and C6) | ★ |
KD | FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8) | ★ |
EP(14) | Republic of Korea Flameproof | ★ |
IP(15) | Republic of Korea Intrinsic Safety | ★ |
KP(16) | Republic of Korea Flameproof, Intrinsic Safety | ★ |
Shipboard approvals(7) | ||
SBS | American Bureau of Shipping | ★ |
SBV(17) | Bureau Veritas (BV) | |
SDN | Det Norske Veritas | |
SLL(17) | Lloyds Register (LR) |
Bolting material | ||
L4 | Austenitic 316 SST bolts | ★ |
L5 | ASTM A 193, grade B7M bolts | ★ |
L6 | Alloy K-500 Bolts | ★ |
L8 | ASTM A 193 Class 2, grade B8M bolts | ★ |
Display and interface options | ||
M4(18) | LCD display with LOI | ★ |
M5 | LCD display | ★ |
Calibration certification | ||
Q4 | Calibration Certificate | ★ |
QP | Calibration Certificate and tamper evident seal | ★ |
QG(19) | Calibration Certificate and GOST Verification Certificate | ★ |
Material traceability certification | ||
Q8 | Material Traceability Certification per EN 10204 3.1 | ★ |
Quality certification for safety(20) | ||
QS | Prior-use certificate of FMEDA data | ★ |
QT | Safety certified to IEC 61508 with certificate of FMEDA | ★ |
Toolkit total system performance reports | ||
QZ | Seal system performance calculation report | ★ |
Conduit electrical connector(6) | ||
GE | M12, 4-pin, male connector (eurofast) | ★ |
GM | A size Mini, 4-pin, male connector (minifast) | ★ |
Configuration buttons | ||
D4(20) | Analog zero and span | ★ |
DZ(21) | Digital zero trim | ★ |
Transient protection(6)(22) | ||
T1 | Transient protection | ★ |
Software configuration(21) | ||
C1 |
Custom Software Configuration (For wired, see the Rosemount 3051 Configuration Data Sheet. For wireless, see the Rosemount 3051 Wireless Configuration Data Sheet.) |
★ |
Low power output | ||
C2 | 0.8–3.2 Vdc output with digital signal based on HART Protocol (available with output code M only) | |
Alarm levels(20) | ||
C4(23) | NAMUR alarm and saturation levels, high alarm | ★ |
CN(23) | NAMUR alarm and saturation levels, low alarm | ★ |
CR | Custom alarm and saturation signal levels, high alarm (requires C1 and Rosemount 3051 Configuration Data Sheet) | ★ | ||
CS | Custom alarm and saturation signal levels, low alarm (requires C1 and Rosemount 3051 Configuration Data Sheet) | ★ | ||
CT | Rosemount Standard low alarm | ★ | ||
Conduit plug | ||||
DO | 316 SST Conduit Plug | ★ | ||
Ground screw(6)(24) | ||||
V5 | External ground screw assembly | ★ | ||
Lower housing flushing connection options | ||||
Ring material | Number | Size (NPT) | ||
F1 | 316 SST | 1 | ¼–18 NPT | ★ |
F2 | 316 SST | 2 | ¼–18 NPT | ★ |
F3 | Alloy C-276 | 1 | ¼–18 NPT | ★ |
F4 | Alloy C-276 | 2 | ¼–18 NPT | ★ |
F7 | 316 SST | 1 | ½–14 NPT | ★ |
F8 | 316 SST | 2 | ½–14 NPT | ★ |
F9 | Alloy C-276 | 1 | ½–14 NPT | ★ |
F0 | Alloy C-276 | 2 | ½–14 NPT | ★ |
Lower housing intermediate gasket material | ||||
S0 | No gasket for lower housing | ★ | ||
SY(25) | Thermo-Tork® TN-9000 | ★ | ||
NACE certificate(26) | ||||
Q15 | Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials | ★ | ||
Q25 | Certificate of compliance to NACE MR0103 for wetted materials | ★ | ||
HART Revision configuration(1) (requires HART protocol output code A) | ||||
HR5 | Configured for HART Revision 5 | ★ | ||
HR7 | Configured for HART Revision 7 | ★ | ||
Typical model number: 3051L 2 A A0 D 21 A A F1 |
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Motor and Servo Drive.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate.
If needed, please contact us for specific prices.
OUR MAIN BRAND:
Contact Person: Ms. Harper
Tel: 86-13170829968
Fax: 86--25020661
