Name: D4E225-CC01-57 Industrial Centrifug Fan for ACS800 VFD Ebmpapst
Brand: Wisdomlong Technology CO.，LTD
SKU: D4E225-CC01-57
Price: 1.00 USD
Availability: InStock

Home Products Industrial Centrifugal Fan

D4E225-CC01-57 Industrial Centrifug Fan for ACS800 VFD Ebmpapst

Product Details:

Place of Origin:	Germany
Brand Name:	Ebmpapst
Certification:	CE
Model Number:	D4E225-CC01-57

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Ebmpapst	Product Type:	Industrial Centrifug Fan
Part Number:	D4E225-CC01-57	Place Of Origin:	Japan
Voltage::	230V	Use For::	ABB Inverter

D4E225-CC01-57 Industrial Centrifug Fan for ACS800 VFD Ebmpapst

Description of Industrial Centrifugal Fan D4E225-CC01-57

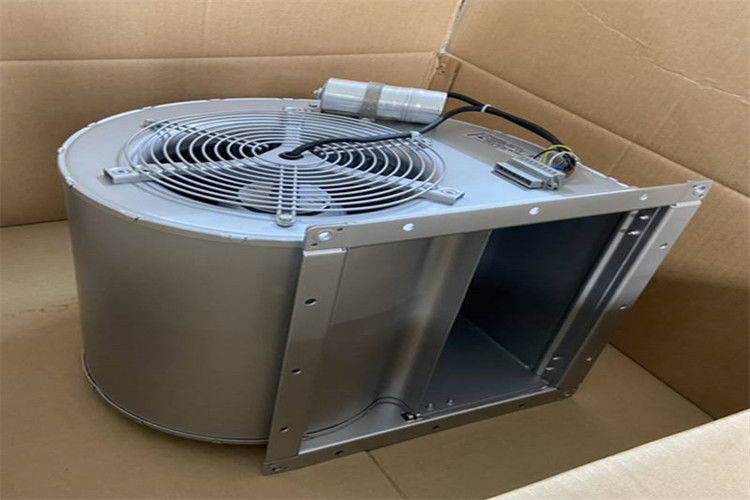

Spare ABB Centrifugal Cooling Fan assembly, complete with motor for ABB ACS800 Inverter Drive.

Type: D4E225-CC01-57 (Was D4E225-CC01-02).

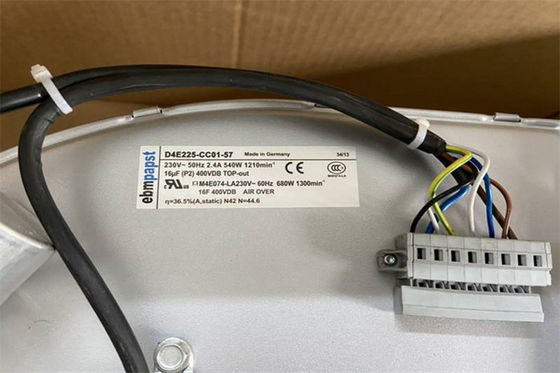

Specifications: 230V~ 50/60Hz 2.40/2.75A 540/625W 1210/1300min-1 400VDB

Motor:M4E074-LA 230V~ 50/60Hz

Description of D4E225-CC01-57

Voltage - Rated	230VAC
Size / Dimension	Rectangular/Rounded - 203mm L x 213mm H
Width	168.0mm
Air Flow	-
Static Pressure	0.803 in H2O (200.0 Pa)
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Noise	-
Power (Watts)	190W
RPM	2100 RPM
Termination	4 Wire Leads
Ingress Protection	IP44
Operating Temperature	-13 ~ 77°F (-25 ~ 25°C)
Approval Agency	CCC, CE, EAC
Current Rating (Amps)	0.840A

Cleaning

NOTE

Damage to the device during cleaning.

Malfunction possible

→Do not clean the device using a water jet or high-pressurewasher.

→Do not use any cleaners containing acids,bases or solvents.

→Do not use any pointed or sharp-edged objects to clean.
