Name: EBMPAPST Leadwires Blower D4E180-CA02-36 centrifugal fan 380/495W; 1250/1280RPM
Brand: Wisdomlong Technology CO.，LTD
SKU: D4E180-CA02-36
Price: 1.00 USD
Availability: InStock

Home Products Industrial Centrifugal Fan

EBMPAPST Leadwires Blower D4E180-CA02-36 centrifugal fan 380/495W; 1250/1280RPM

Product Details:

Place of Origin:	GERMANY
Brand Name:	EBMPAPST
Certification:	CE
Model Number:	D4E180-CA02-36

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	D4E180-CA02-36	Brand:	EBMPAPST
Condition:	NEW ORIGINAL	Code:	-
Weight:	5 Kg	Type:	Centrifugal Fan

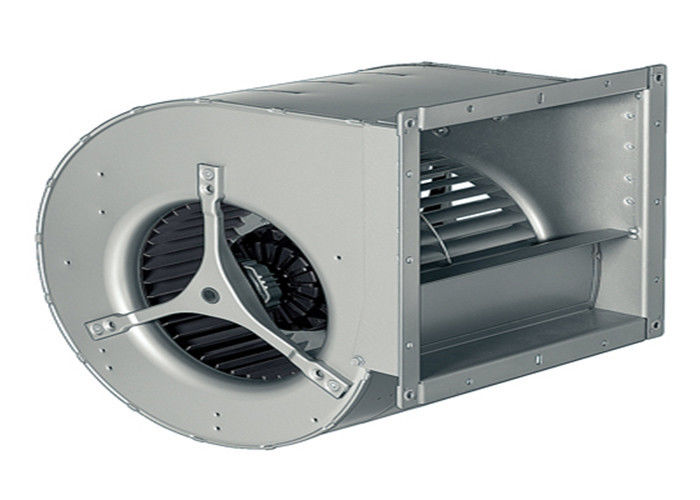

EBMPAPST Leadwires Blower D4E180-CA02-36 centrifugal fan 380/495W; 1250/1280RPM

Description

D4E180-CA02-36 model is centrifugal type of motor fans. They have forward-curved blades, dual inlet and casting with large flange. Material of housing is hot-galvanised sheet steel. Counter-clockwise and seen on rotor direction of rotation. Can be suited to any mounting position. Model has axial cable exit, ball bearings and insulation class B.

Technical characteristics:

Type of motor: M4E068-LA.
Number of phases: one.
Voltage (nominal): 230V.
Nominal frequency: 50-60 Hz.
Size: 180mm.
Data definition: RFA.
Standards: UL, CE.
Speed (min): 1250, 1170, 1280.
Power input: 380W, 540W, 295W.
Current: 1,68A; 2,4A; 2,16A.
Capacitor of motor: 10 μF.
Capacitor voltage: 400VDB.
Ambient temperature(maximum): 30 - 60 °C.
Leackage current: < 0,75mA.

Air Flow	665 CFM
Bearing Type	Ball
Blower Type	2 Inlet
Configuration	Scroll
Current Rating	2.16 A
Dimensions	7.1 (180)In. (mm)
Frequency	50/60 Hz
Material	Metal
Power Rating	380/495 W
Rotation	CCW
Series	D4E180 Series
Size	7.1 (180) In. (mm)
Speed	1250/1280 RPM
Static Pressure	0 Pa
Temperature, Operating, Maximum	60/65 C
Temperature, Operating, Minimum	-25/-25 C
Termination	Leadwires
Voltage Rating	230 VAC
Weight	10.24 kg

Spare for:

ACS800-104-0170-3,

ACS800-104-0210-3,

ACS800-104-0210-5,

ACS800-104-0210-7,

ACS800-104-0260-3,

ACS800-104-0260-5,

ACS800-104-0260-7,

ACS800-104-0320-3,

ACS800-104-0320-5,

ACS800-104-0320-7,

ACS800-104-0390-3,

ACS800-104-0400-5,

ACS800-104-0400-7,

ACS800-104-0440-7,

ACS800-104-0460-5,

ACS800-104-0510-3,

ACS800-104-0580-7,

ACS800-104-0610-5.

Features:

AC Dual Inlet Forward Curved Centrifugal Blower
Via a Bracket, the Integrated External-Rotor Motor Is Mounted on One Side of the Housing
Housing and Impeller of Galvanized Sheet-Steel
Forward Curved Impellers Are Directly Press-Fitted onto the Rotor of the External-Rotor Motor
Direction of Rotation Is CW as Seen From Suction Side
Insulation Class “B”
Maintenance-Free Ball Bearings

Description of Centrifugal fans

Centrifugal fans from ebm-papst are available with forward or backward curved blades. The

outstanding feature of the external rotor motors is their compact, flat design, which results from

integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll

housing, while centrifugal fans are shipped without scrolls.

Similiar Centrifugal fans for ABB Variable Frequency Inverter

Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02

Others:

RF2C-140/059 K147 SF

RF2C-140/059 K097 SF

RF2C-146/062 K124 SF

RF2C-160/062 K117 SF

RF2C-140/059 K147 I
RF2C-140/059 K097 I
RF2C-146/062 K124 I
RF2C-160/062 K117 I
RF2C-180/052 K000 I
RF2C-140/059 K147
RF2C-140/059 K097
RF2C-146/062 K124
RF2C-160/062 K117
RF2C-180/052 K000

Product Drawing


Packaging & Delivery

Packaging Details
Cartons

Delivery Time
Whithin 3-5 days
