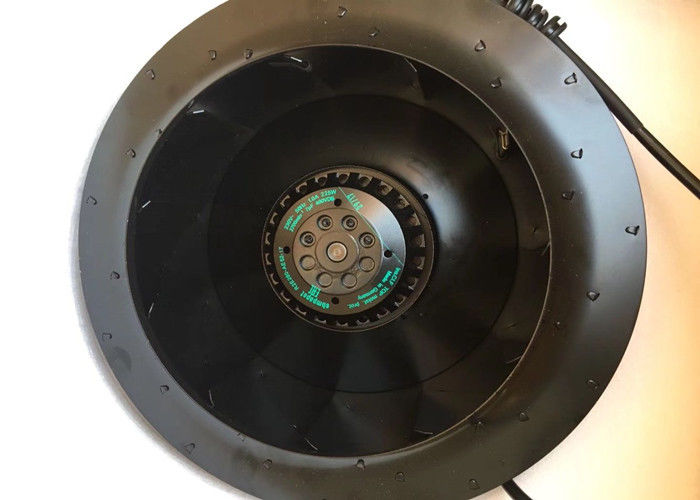

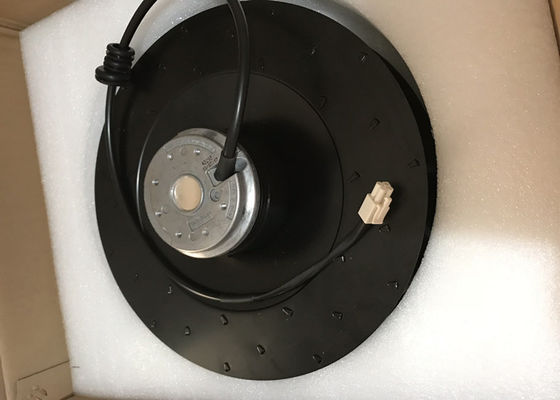

NEW EBMPAPST Centrifugal Cooling Fan R2E280-AE52-17 230V 50HZ 1.0A 225W 2700RPM in stock
Description
R2E280-AE52-17 is a centrifugal fan featuring backward curved blades are an ideal solution to a wide range of application requirements and are ideally suited for intake suction use. Additionally, ebm-papst centrifugal fan, specifically those used for intake suction using backward curved blades, do not require a scroll housing – increasing ease of use and versatility. Supply Voltage 230 V ac Operating Temperature -13 ~ 104°F (-25 ~ 40°C) Blower Type Centrifugal AC Operation Air Flow 2110m³/h Series R2E280 Width 280mm Depth 125mm Dimensions 280 (Dia.) x 125 Dmm Fan Speed 2700rpm Noise Level 76dB(A) Bearing Type Ball Direction of Curve Backward.
Specifications
Brand: Germany ebmpapst
Model : R2E280-AE52-17 metal impeller fan drive
Dimensions : Diameter 280 * 125MM Thickness
Voltage : 230V (50/60HZ)
Current : 1.00A
Power : 225W
Speed : 2700RPM
Air flow : 2110 m3 / h
Pressure : 750PA
Noise : 76DBA
Use of the environment : -25 ~ 60 °
Life span: 50,000 hours
Net weight : 3.0KG
| Technical description |
| Weight |
3.5 kg |
| Size |
280 mm |
| Surface of rotor |
Coated in black |
| Material of electronics housing |
Rotor: Coated in black |
| Material of impeller |
Sheet steel, coated in black |
| Direction of rotation |
Counterclockwise, viewed toward rotor |
| Number of blades |
11 |
| Direction of rotation |
IP 44; Depending on installation andposition as per EN 60034-5 |
| Insulation class |
"F" |
| Humidity class |
F1-2 |
| Mounting position |
Shaft horizontal or rotor on bottom; rotoron top on request |
| Condensate discharge holes |
Rotor-side |
| Operation mode |
S1 |
| Motor bearing |
Ball bearing |
| Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) |
< 0,75 mA |
| Motor protection |
wired internally |
| Protection class |
(if protective earth is connected by customer) |
| Approval |
CCC; EAC |
Spare for:
ACS800-104-0170-3,
ACS800-104-0210-3,
ACS800-104-0210-5,
ACS800-104-0210-7,
ACS800-104-0260-3,
ACS800-104-0260-5,
ACS800-104-0260-7,
ACS800-104-0320-3,
ACS800-104-0320-5,
ACS800-104-0320-7,
ACS800-104-0390-3,
ACS800-104-0400-5,
ACS800-104-0400-7,
ACS800-104-0440-7,
ACS800-104-0460-5,
ACS800-104-0510-3,
ACS800-104-0580-7,
ACS800-104-0610-5.
Manufacturer: ABB.
Similiar Centrifugal fans for ABB Variable Frequency Inverter
Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02
Description of Centrifugal fans
Centrifugal fans from ebm-papst are available with forward or backward curved blades. The
outstanding feature of the external rotor motors is their compact, flat design, which results from
integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll
housing, while centrifugal fans are shipped without scrolls.
All the facts at a glance:
– AC and EC centrifugal fans with forward-curved blades
– “RadiCal” AC and EC low-pressure fans
– “RadiFit” as EC system solution
– “RadiPac” and “RadiFit” EC medium-pressure fans
– Compact design with external rotor motor technology
– Comprehensive series for every application
– 100% speed-controlled through analogue or serial interface
– High efficiency through use of GreenTech EC technology
– Quiet operation thanks to optimised flow regulation and ingenious commutation of the EC motor
– Easy commissioning with components matched to each other: control/motor/fan
– Extensive range of accessories
Product Drawing
Packaging & Delivery
Packaging Details
Cartons
Delivery Time
Whithin 3-5 days
