ABB NEW AC Centrifugal Cooling Fan D4E225-CC01-57 for ACS800 VFD Inverter in stock
Description

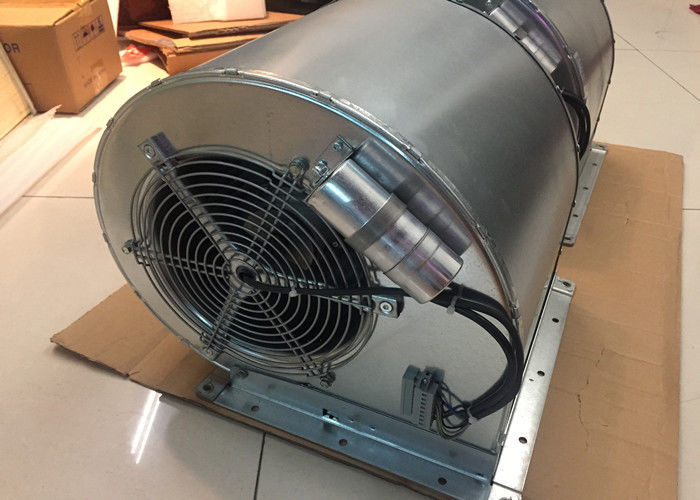

Spare ABB Centrifugal Cooling Fan assembly, complete with motor for ABB ACS800 Inverter Drive.
Type: D4E225-CC01-57 (Was D4E225-CC01-02).
Specifications: 230V~ 50/60Hz 2.40/2.75A 540/625W 1210/1300min-1 400VDB
Motor:M4E074-LA 230V~ 50/60Hz
Weight: 14.5kg in carton 60x30x30cm.
Spare for:
ACS800-104-0170-3,
ACS800-104-0210-3,
ACS800-104-0210-5,
ACS800-104-0210-7,
ACS800-104-0260-3,
ACS800-104-0260-5,
ACS800-104-0260-7,
ACS800-104-0320-3,
ACS800-104-0320-5,
ACS800-104-0320-7,
ACS800-104-0390-3,
ACS800-104-0400-5,
ACS800-104-0400-7,
ACS800-104-0440-7,
ACS800-104-0460-5,
ACS800-104-0510-3,
ACS800-104-0580-7,
ACS800-104-0610-5.
Manufacturer: ABB.
| Technical description |
| Weight |
12 kg |
| Motor size |
74 |
| Size |
225 mm |
| Impeller material |
Sheet steel, galvanized |
| Housing material |
Sheet steel, galvanized |
| Motor suspension |
Motor vibration-damped on both sides |
| Direction of rotation |
Counterclockwise, viewed toward rotor |
| Degree of protection |
IP22 |
| Insulation class |
"B" |
| Moisture (F) / Environmental (H) protection class |
F2-1 / H0+ |
| Max. permitted ambient temp. for motor (transport/storage) |
+ 80 °C |
| Min. permitted ambient temp. for motor (transport/storage) |
- 40 °C |
| Installation position |
Any |
| Condensation drainage holes |
None, open rotor |
| Mode |
S1 |
| Motor bearing |
Ball bearing |
| Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) |
< 0,75 mA |
| Motor protection |
Thermal overload protector (TOP) internally connected |
| Protection class |
I (with customer connection of protective earth) |
| Conformity with standards |
EN 60335-1 |
| Approval |
EAC / CCC |
Dimensions:
Weight: 15.000 kg
Width: 42.0 cm
Height: 38.0 cm
Depth: 18.0 cm
Similiar Centrifugal fans for ABB Variable Frequency Inverter
Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02
Description of Centrifugal fans
Centrifugal fans from ebm-papst are available with forward or backward curved blades. The
outstanding feature of the external rotor motors is their compact, flat design, which results from
integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll
housing, while centrifugal fans are shipped without scrolls.
All the facts at a glance:
– AC and EC centrifugal fans with forward-curved blades
– “RadiCal” AC and EC low-pressure fans
– “RadiFit” as EC system solution
– “RadiPac” and “RadiFit” EC medium-pressure fans
– Compact design with external rotor motor technology
– Comprehensive series for every application
– 100% speed-controlled through analogue or serial interface
– High efficiency through use of GreenTech EC technology
– Quiet operation thanks to optimised flow regulation and ingenious commutation of the EC motor
– Easy commissioning with components matched to each other: control/motor/fan
– Extensive range of accessories
Product Drawing
Packaging & Delivery
Packaging Details
Cartons
Delivery Time
Whithin 3-5 days
