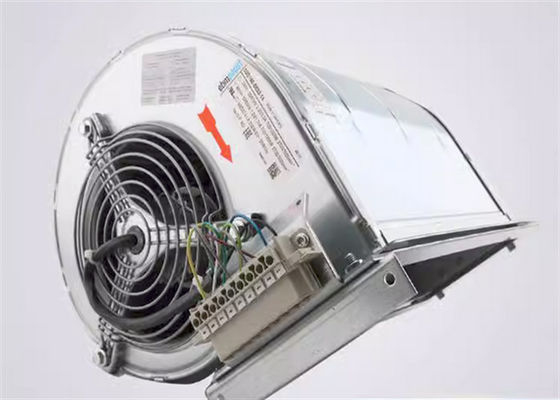

D2D160-BE02-11 Industrial Centrifugal Fan Ebmpapst 230 400V 2700RPM 700W

D2D160-BE02-11 Industrial Centrifugal Fan Ebmpapst 230 400V 2700RPM 700W

• D2D160-BE02-11
• DISCONTINUED BY MANUFACTURER
• CENTRIFUGAL FAN
• 230/400V
• 50 HZ
• 700 WATT
• 2700 RPM

Type D2E160-BE02-11

Motor M2D074-FA
Phase 1~
Nominal voltage [V] 380
Frequency [Hz] 50
Type of data definition ml
Valid for approval / standard CE
Speed [min-1] 2700
Power input [W] 700
Current draw [A] 1.8
Motor capacitor [μF] 10
Capacitor voltage [VDB] 400
Min. back pressure [Pa] 200
Max. ambient temperature [°C] 40
Air flow [m3/h] 1195
Back pressure [Pa] 200
Sound pressure level [dB(A)] 64

Cleaning

NOTE

Damage to the device during cleaning.

Malfunction possible

→Do not clean the device using a water jet or high-pressurewasher.

→Do not use any cleaners containing acids,bases or solvents.

→Do not use any pointed or sharp-edged objects to clean.
