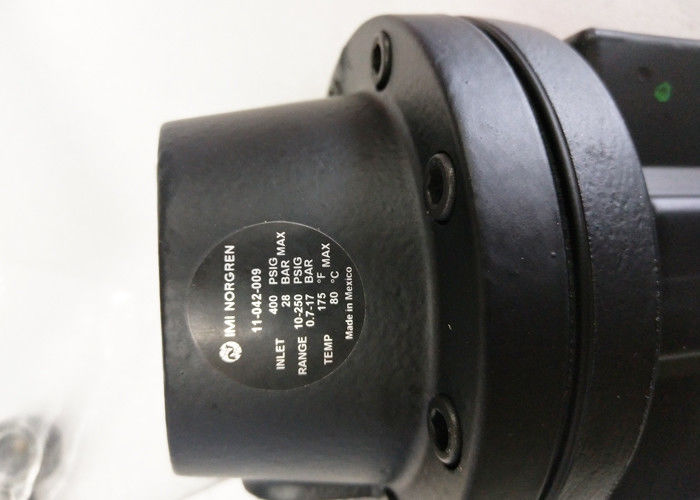

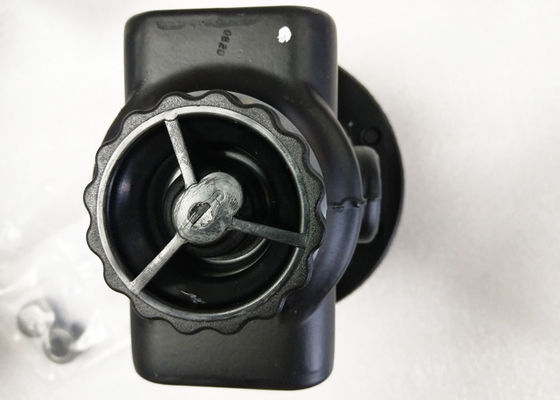

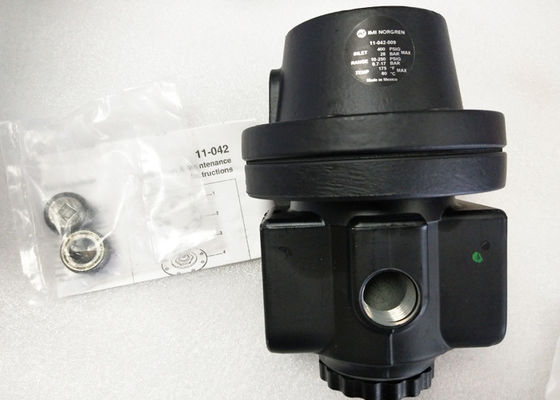

11-042-009 REGULATOR R24/R42 PILOT OPERATED 1-1/4 INCH NPT 11042009
Product Information Of : 11-042-009
|
Port Size
|
Model
|
Flow* scfm (dm3/s)
|
Weight lb (kg)
|
|
1/4"
|
11-042-001
|
120 (57)
|
2.8 (1.3)
|
|
3/8"
|
11-042-002
|
120 (57)
|
2.7 (1.2)
|
|
1/2"
|
11-042-003
|
120 (57)
|
2.6 (1.2)
|
|
3/4"
|
11-042-007
|
300 (142)
|
4.8 (2.2)
|
|
1"
|
11-042-008
|
300 (142)
|
4.6 (2.1)
|
|
1-1/4"
|
11-042-009
|
300 (142)
|
4.3 (2.0)
|
Technical :
一,Fluid: Compressed air
二,Inlet pressure range: 10 psig (0.7 bar) to 400 psig (27.6 bar) *
三, For best performance, inlet pressure should be at least 10 psig (0.7 bar) greater than the desired regulated pressure, but must not exceed the specified maximum.
四,Operating temperature: 0° to 175°F (-20° to 80°C)
五,Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).
六,Typical flow with a conventional pilot regulator at 100 psig (6.9 bar) inlet pressure, 90 psig (6.3 bar) set pressure, and a droop of 5 psig (0.35 bar) from set:
a, 1/2" ports: 120 scfm (57 dm3 /s)
b, 1" ports: 300 scfm (142 dm3 /s)
Warning - Feedback Pilot Regulators :
The feedback line must sense the pilot operated regulator outlet pressure and must be connected before turning on the air supply. If it is not connected, the pilot operated regulator outlet pressure will rapidly increase to the inlet pressure when the adjusting knob on the pilot operator is turned clockwise
