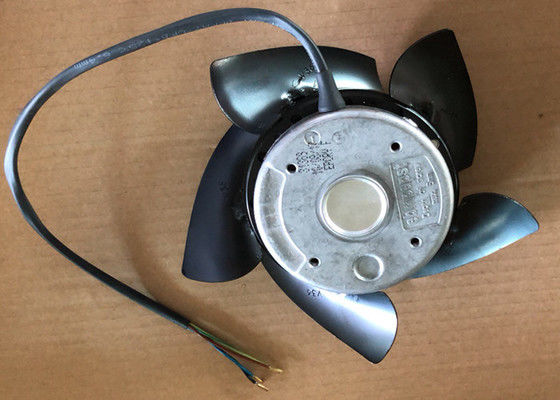

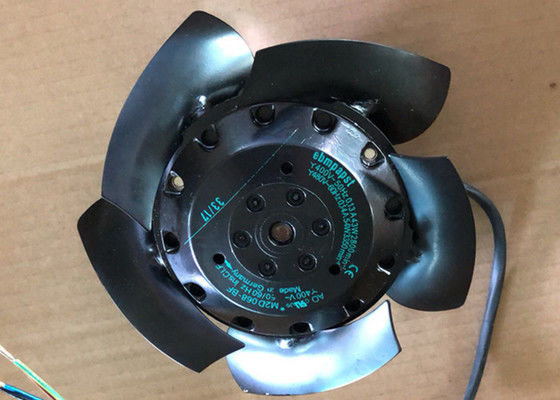

M2D068-BF R2D190-AC08-09 EBMPAPST AC Axial Fan 44W 400/480V Impeller for Siemens servo motor
Description
This Fan R2D190-AC08-09 is applied for Siemens 1PH710 series M2D068-BF spindle motor.
AC axial fans 2 poles
S-Range, Ø 300
- Material:sheet steel (coated in black)
- Direction of rotation:direction of air flow "V" counter-clockwise,direction of air flow "A" clockwise
- Type of protection:IP 44
- Option: also available with terminal box
AC axial fans 4 poles
S-Range, Ø 300
- Material:sheet steel (coated in black)
- Direction of rotation:direction of air flow "V" counter-clockwise,direction of air flow "A" clockwise Type of protection:IP 44
Specifications
| Motor Model: |
M2D068-BF |
| Fan Model: |
R2D190-AA04-19 |
| Brand: |
Ebmpapst |
| Impeller diameter : |
158.5mm |
| Motor speed : |
2800 min/phase |
| Operating frequency : |
50/60Hz |
| Operating voltage: |
1~400VAC/phase |
| Voltage range: |
AC400V-480V/phase |
| Operatubg current: |
0.15A |
| Input power: |
44W |
| Start capacitor: |
2.5uF/450V |
| The maximum amount of wind: |
990m3/h |
| Working temperature: |
-20~+60 centigrade degree |
| Maximum wind pressure: |
0~410 Pa |
| Service life: |
when 40 Centigrade degree, L10 life expectancy is 30000 hours |
| Noise Index: |
75 dB(A) |
| Lead the way: |
400mm long qualifying lap from the wind exposed end TR64 plug electrical connection. |
| Protect class : |
F class (155) IP44 |
| Material Material: |
Galvanized steel impeller connected to the metal outer rotor motor. |
| Product Certification : |
CCC CE UL |
