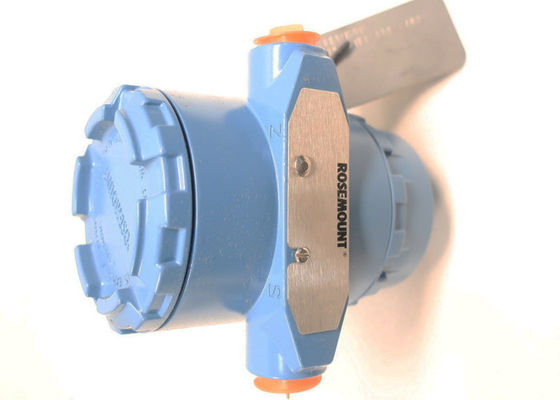

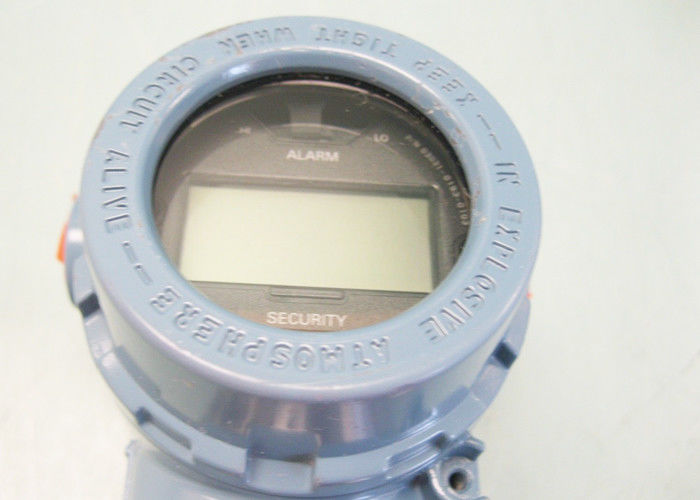

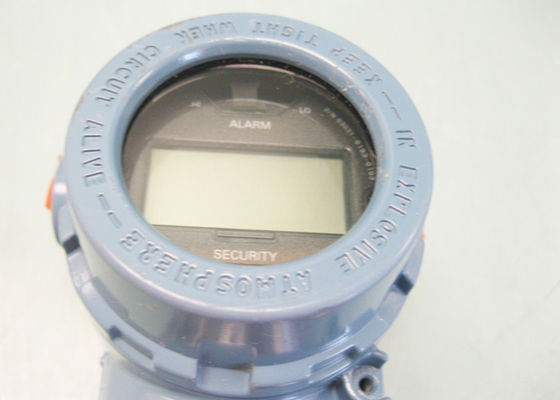

Name: Rosemount 3051CFC Compact Flow Pressure Temperature Transmitter
Brand: Wisdomlong Technology CO.，LTD
SKU: 3051CFCDCS060N065032AA1WCE5M5
Price: 1.00 USD
Availability: InStock

Home Products Pressure Temperature Transmitter

Rosemount 3051CFC Compact Flow Pressure Temperature Transmitter

Product Details:

Place of Origin:	Singapore
Brand Name:	ROSEMOUNT
Certification:	Does not supply
Model Number:	3051CFCDCS060N065032AA1WCE5M5

Payment & Shipping Terms:

Minimum Order Quantity:	1 ea
Price:	Negotiate
Packaging Details:	Does not supply
Delivery Time:	8 WEEKS
Payment Terms:	T/T,PAYONEER
Supply Ability:	30EA，8weeks

Contact Now

Detailed Product Description

BRAND:	EMERSON ROSEMOUNT	MODEL:	3051CFCDCS060N065032AA1WCE5M5
CATEGORY:	Compact Flow Meter	SUPPLY:	4–20 MA
Measurement Type:	Differential Pressure	Delivery Time:	8 Weeks
Weight:	Does Not Supply
Highlight:	Compact Pressure Temperature Transmitter , 20mA Pressure Temperature Transmitter , rosemount 3051CFC 4mA

3051CFCDCS060N065032AA1WCE5M5 Compact Flow Meter Rosemount 3051CFC

Product Information Of: 3051CFCDCS060N065032AA1WCE5M5

Brand	EMERSON ROSEMOUNT
Model	3051CFCDCS060N065032AA1WCE5M5
SUPPLY	0.65 beta ratio
SIZE	Does not supply
Weight	Does not supply

Rosemount 3051CFC Compact Flow Meters provide a quick, reliable installation between existing raised face flanges. Depending on your application needs, you can reduce energy loss with the Compact Annubar or minimize straight run requirements with the Conditioning Orifice.
■Up to 1.8 percent of flow rate accuracy.
■Available in ½- to 12-in. (15 to 300 mm) line sizes.
■Fully assembled and leak tested for out-of-the-box installation.
■The Loop Integrity Diagnostic continuously monitors the electrical loop to detect changes that compromise the integrity of the transmitted 4-20 mA output signal (Option Code DA0).
■LOI with straightforward menus and built-in configuration buttons (option code M4).

More options :

3051CG2A22A1AB4M5E5

3051CG3A22A1AB4M5E5

3051CG4A22A1AB4M5E5

3051CG5A22A1AB4M5E5

3051CG1A22A1AB4M5I5

3051CG2A22A1AB4M5I5

3051CG3A22A1AB4M5I5

3051CG4A22A1AB4M5I5

3051CD0A02A1AB1H2L4M5

3051CD1A02A1AB1H2L4M5

3051CD2A02A1AB1H2L4M5

3051CD3A02A1AB1H2L4M5

3051CD4A02A1AB1H2L4M5

3051CD5A02A1AB1H2L4M5

3051CD0A02A1AB3H2L4M5

3051CD1A02A1AB3H2L4M5

3051CD2A02A1AB3H2L4M5

3051CD3A02A1AB3H2L4M5

3051CG5A22A1AB4M5I5

MR-J2S-70B-PY135U504

MR-J2S-40B-PY135U504

MR-J2S-70B-FH168V003

MR-J2S-70B-S014

MR-J2S-70B-EE085

MR-J2S-100B-EE085

MR-J2S-70B-S041U737

MR-J2S-200A-PM070

MR-J2S-200A-S011

MR-J2S-200B-PY096

MR-J2S-200B-PY179

MR-J2S-200B-QR141U633

MR-J2S-200A-EJ220

MR-J2S-200A-EJ012

MR-J2S-200B-T004

Rosemount 3051CFA Annubar Flow Meter Information:

Model	Product description
3051CFC	Compact flow meter
Measurement type
D	Differential pressure	★
Primary element technology
A	Annubar averaging pitot tube	★
C	Conditioning orifice plate	★
P	Orifice plate	★
Material type
S	316 SST	★
Line size
005(1)	½-in. (15 mm)	★
010(1)	1-in. (25 mm)	★
015(1)	1½-in. (40 mm)	★
020	2-in. (50 mm)	★
030	3-in. (80 mm)	★
040	4-in. (100 mm)	★
060	6-in. (150 mm)	★
080	8-in. (200 mm)	★

100(2)	10-in. (250 mm)		★
120(2)	12-in. (300 mm)		★
Primary element type
N000	Rosemount Annubar sensor size 1		★
N040	0.40 beta ratio		★
N050	0.50 beta ratio
N065(3)	0.65 beta ratio		★
Temperature measurement
0	No temperature sensor		★
R	Remote thermowell and RTD
Transmitter connection platform
3	Direct-mount		★
7	Remote-mount, NPT connections		★
Differential pressure range
1	0 to 25 in H₂O (0 to 62,16 mbar)		★
2	0 to 250 in H₂O (0 to 621,60 mbar)		★
3	0 to 1000 in H₂O (0 to 2,48 bar)		★
Transmitter output
A(4)	4–20 mA with digital signal based on HART^® Protocol		★
F	FOUNDATION™ Fieldbus Protocol		★
W (5)	PROFIBUS^® PA Protocol		★
X(6)	Wireless (requires wireless options and engineered polymer housing)		★
M(7)	Low-power 1–5 Vdc with digital signal based on HART Protocol
Transmitter housing material		Conduit entry size
A	Aluminum	½–14 NPT	★
B	Aluminum	M20 x 1.5	★
E	Aluminum, ultra low copper	½–14 NPT
F	Aluminum, ultra low copper	M20 x 1.5
J	SST	½–14 NPT	★
K	SST	M20 x 1.5	★
P(8)	Engineered polymer	No conduit entries	★
D(9)	Aluminum	G½
M(9)	SST	G½
Transmitter performance class
1	Up to ±1.65% flow rate accuracy, 8:1 flow turndown, 5-year stability		★

Wireless options (requires wireless output code X and Engineered Polymer Housing code P)
Wireless transmit rate, operating frequency, and protocol
WA3	User configurable transmit rate, 2.4 GHz WirelessHART	★
Antenna and SmartPower
WP5	Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately)	★
Extended product warranty
WR3	3-year limited warranty	★
WR5	5-year limited warranty	★
Installation accessories
AB	ANSI alignment ring (Class 150) (only required for 10-in. (250 mm) and 12-in. (300 mm) line sizes)	★
AC	ANSI alignment ring (Class 300) (only required for 10-in. (250 mm) and 12-in. (300 mm) line sizes)	★
AD	ANSI alignment ring (Class 600) (only required for 10-in. (250 mm) and 12-in. (300 mm) line sizes)	★
DG	DIN alignment ring (PN16)	★
DH	DIN alignment ring (PN40)	★
DJ	DIN alignment ring (PN100)	★
JB	JIS alignment ring (10K)
JR	JIS alignment ring (20K)
JS	JIS alignment ring (40K)
Remote adapters
FE	Flange adapters 316 SST (½-in NPT)	★
High temperature application
HT	Graphite valve packing (T_max = 850 °F)
Flow calibration(10)
WC	Flow calibration, 3 pt, conditioning orifice option C (all pipe schedules)
WD(11)	Flow calibration, 10 pt, conditioning option C (all schedules), Annubar option A (schedule 40)
Pressure testing
P1	Hydrostatic testing with certificate
Special cleaning
P2(12)	Cleaning for special services
PA	Cleaning per ASTM G93 level D (section 11.4)
Special inspection
QC1	Visual & dimensional inspection with certificate	★
QC7	Inspection and performance certificate	★
Transmitter calibration certification
Q4	Calibration certificate for transmitter	★

Quality certification for safety(13)
QS	Prior-use certificate of FMEDA data	★
QT	Safety certified to IEC 61508 with certificate of FMEDA	★
Material traceability certification
Q8	Material Traceability Certification per EN 10204:2004 3.1	★
Code conformance
J2	ANSI/ASME B31.1
J3	ANSI/ASME B31.3
J4	ANSI/ASME B31.8
Materials conformance(14)
J5	NACE MR-0175/ISO 15156
Country certification
J1	Canadian Registration
Product certifications
E8	ATEX Flameproof, Dust	★
I1(15)	ATEX Intrinsic Safety and Dust	★
IA	ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
N1	ATEX Type n and Dust	★
K8	ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1, and N1)	★
E5	FM Explosion-proof, Dust Ignition-proof	★
I5(16)	FM Intrinsically Safe, Nonincendive	★
IE	FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
K5	FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of E5 and I5)	★
C6	CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2	★
I6(8)	CSA Intrinsically Safe	★
K6	CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)	★
E7	IECEx Flameproof, Dust Ignition-proof	★
I7	IECEx Intrinsic Safety	★
N7	IECEx Type n	★
K7	IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7, and E7)	★
E2	INMETRO Flameproof	★
I2	INMETRO Intrinsic Safety	★
IB	INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
K2	INMETRO Flameproof, Intrinsic Safety	★
E3	China Flameproof	★
I3	China Intrinsic Safety	★

KB	FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of K5 and C6)	★
KD	CSA, FM, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8)	★
Sensor fill fluid and O-ring options
L1(17)	Inert sensor fill fluid	★
L2	Graphite-filled (PTFE) O-ring	★
LA(17)	Inert sensor fill fluid and graphite-filled (PTFE) O-ring	★
Shipboard approvals(17)
SBS	American Bureau of Shipping	★
SLL(18)	Lloyds Register (LR)
Display and interface options
M4(19)	LCD display with LOI	★
M5	LCD display	★
Transient protection(17)(20)
T1	Transient terminal block	★
Manifold for remote mount option
F2	3-valve manifold, SST	★
F6	5-Valve Manifold, SST	★
Plantweb^™ control functionality(21)
A01	FOUNDATION Fieldbus Control Function Block Suite	★
Plantweb diagnostic functionality
DA0(13)	Loop Integrity HART Diagnostic	★
D01(21)	FOUNDATION Fieldbus Diagnostic Suite	★
Low power output
C2	0.8–3.2 Vdc output with digital signal based on HART Protocol (available with output code M only)
Alarm levels(13)
C4(22)	NAMUR alarm and saturation levels, high alarm	★
CN(22)	NAMUR alarm and saturation levels, low alarm	★
CR	Custom alarm and saturation signal levels, high alarm	★
CS	Custom alarm and saturation signal levels, low alarm	★
CT	Rosemount standard low alarm	★
Ground screw(17)(23)
V5	External ground screw assembly	★
Configuration buttons
D4(13)	Analog zero and span	★
DZ(24)	Digital zero trim	★

HART Revision Configuration (requires HART Protocol output code A)(4)
HR5	Configured for HART Revision 5	★
HR7	Configured for HART Revision 7	★
Typical model number: 3051CFC D C S 060 N 065 0 3 2 A A 1 WC E5 M5
