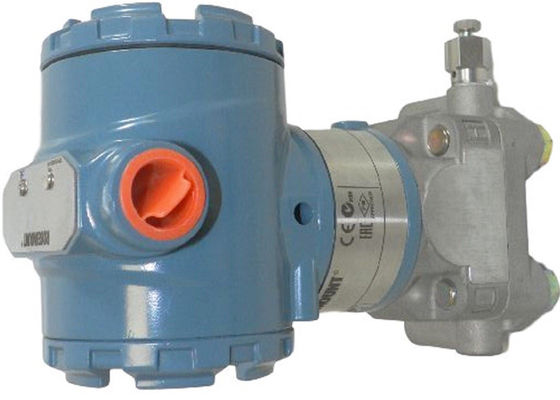

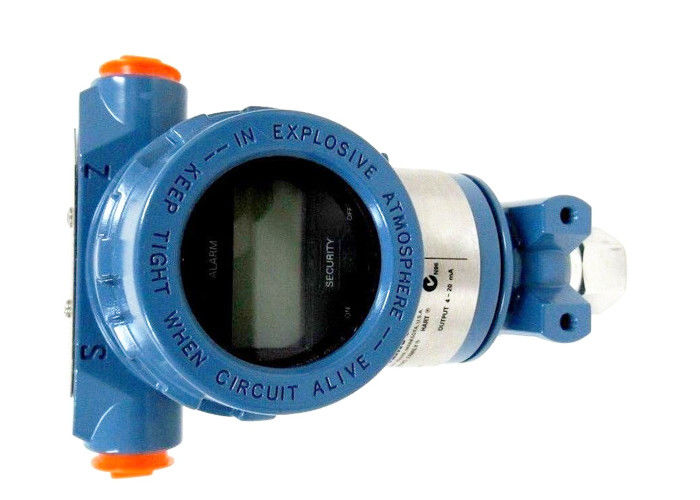

Name: 3051TG5F2A21AB4 Rosemount 3051t Pressure Transmitter In Line New In Box
Brand: Wisdomlong Technology CO.，LTD
SKU: 3051TG5F2A21AB4
Price: 1.00 USD
Availability: InStock

Home Products Pressure Temperature Transmitter

3051TG5F2A21AB4 Rosemount 3051t Pressure Transmitter In Line New In Box

Product Details:

Place of Origin:	Singapore
Brand Name:	ROSEMOUNT
Certification:	Does not supply
Model Number:	3051TG5F2A21AB4

Payment & Shipping Terms:

Minimum Order Quantity:	1 ea
Price:	Negotiate
Packaging Details:	Does not supply
Delivery Time:	8 WEEKS
Payment Terms:	T/T,PAYONEER
Supply Ability:	20EA，8weeks

Contact Now

Detailed Product Description

BRAND:	EMERSON ROSEMOUNT	MODEL:	3051TG5F2A21AB4
CATEGORY:	In-Line Pressure Transmitter	SUPPLY:	Does Not Supply
Delivery Time:	6 Weeks	Weight:	Does Not Supply
Highlight:	ISO15156 rosemount 3051t pressure transmitter , 3051TG5F2A21AB4 rosemount 3051t pressure transmitter , 30psi in line pressure transmitter

3051TG5F2A21AB4 In-Line Pressure Transmitter Rosemount 3051T

Product Information Of : 3051TG5F2A21AB4

Brand	EMERSON ROSEMOUNT
Model	3051TG5F2A21AB4
SUPPLY	Does not supply
SIZE	No
Weight	5KG

(1) 3051TG lower range limit varies with atmospheric pressure.
(2) Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103
(3) Not available with low-power Option Code M.
(4) Not available with fieldbus (output code F) or Profibus protocols (output code W).
(5) Local zero and span adjustments are standard unless Option Code J1 or J3 is specified.
(6) NAMUR-Compliant operation is pre-set at the factory and cannot be changed to standard operation in the field.
(7) The V5 option is not needed with T1 option; external ground screw assembly is included with the T1 option.

More options:

SGDA-02AS

SGDA-02ASP

SGDA-02BP

SGDA-02BS

SGDA-02VP

SGDA-03BP

SGDA-03BP+SGMP-03B312

SGDA-03BPY122

SGDA-03SP

SGDA-04AH

SGDA-04AP

SGDA-04APP

SGDA-04AS

SGDA-04AS+电机SGM-04A3NT12

SGDA-04ASP

MR-J2S-200A-S007

MR-J2S-200B-S009V613

MR-J2S-200B-RS238

MR-J2S-200B-S126

MR-J2S-200A-EG011

MR-J2S-200A-EG055

MR-J2S-350B-S041703

MR-J2S-350CP-S186

MR-J2S-350CP-S084

MR-J2S-350B-EG

Rosemount 3051T In-Line Pressure Transmitter Information :

Model	Transmitter type
3051T	In-line pressure transmitter
Pressure type
G	Gage		★
A(1)	Absolute		★
Pressure range
	Gage (Rosemount 3051TG)(2)	Absolute (Rosemount 3051TA)
1	–14.7 to 30 psi (–1,01 to 2,06 bar)	0 to 30 psia (0 to 2,06 bar)	★
2	–14.7 to 150 psi (–1,01 to 10,34 bar)	0 to 150 psia (0 to 10,34 bar)	★
3	–14.7 to 800 psi (–1,01 to 55,15 bar)	0 to 800 psia (0 to 55,15 bar)	★
4	–14.7 to 4000 psi (–1,01 to 275,79 bar)	0 to 4000 psia (0 to 275,79 bar)	★
5	–14.7 to 10000 psi (–1,01 to 689,47 bar)	0 to 10000 psia (0 to 689,47 bar)	★
6(3)	–14.7 to 20000 psi (–1,01 to 1378,95 bar)	0 to 20000 psia (0 to 1378,95 bar)
Transmitter output
A(4)	4–20 mA with digital signal based on HART^® Protocol		★
F	FOUNDATION™ Fieldbus Protocol		★
W(5)	PROFIBUS^® PA Protocol		★

X(6)	Wireless (requires wireless options and engineered polymer housing)		★
M(7)	Low-power 1–5 Vdc with digital signal based on HART Protocol
Process connection style
2B	½–14 NPT female (range 1–5 only)		★
2C(8)	G½ A EN837-1 male (range 1–4 only)		★
2F(9)	Coned and threaded, compatible with autoclave Type F-250-C (range 5–6 only)
61(10)(11)	Non-threaded Instrument flange (range 1–4 only)
Isolating diaphragm(12)		Process connection wetted parts material
2	316L SST	316L SST	★
3	Alloy C-276	Alloy C-276	★
7	Gold-plated 316 SST	316L SST
Sensor fill fluid
1	Silicone		★
2(10)	Inert		★
Housing material		Conduit entry size
A	Aluminum	½–14 NPT	★
B	Aluminum	M20 x 1.5	★
E	Aluminum, ultra low copper	½–14 NPT
F	Aluminum, ultra low copper	M20 x 1.5
J	SST	½–14 NPT	★
K	SST	M20 x 1.5	★
P(13)	Engineered polymer	No conduit entries	★
D(14)	Aluminum	G½
M(14)	SST	G½
Wireless options (requires wireless output code X and engineered polymer housing code P)
Wireless transmit rate, operating frequency, and protocol
WA3	User configurable transmit rate, 2.4GHz WirelessHART		★
Antenna and SmartPower
WP5	Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately)		★
Options (include with selected model number)
Extended product warranty
WR3	3-year limited warranty		★
WR5	5-year limited warranty		★
Plantweb^™ control functionality
A01	FOUNDATION Fieldbus control function block suite		★

Plantweb diagnostic functionality
DA0	Loop Integrity HART diagnostic	★
D01	FOUNDATION Fieldbus diagnostics suite	★
Integral assembly(15)
S5	Assemble to Rosemount 306 integral manifold	★
Diaphragm seal assemblies(15)
S1	Assemble to one Rosemount 1199 seal	★
Mounting bracket(16)
B4	Bracket for 2-in. pipe or panel mounting, all SST	★
Product certifications
E8	ATEX Flameproof and Dust Certification	★
I1(17)	ATEX Intrinsic Safety and Dust	★
IA	ATEX Intrinsic Safety for FISCO; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
N1	ATEX Type n Certification and Dust	★
K8	ATEX Flame-proof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)	★
E4(18)	TIIS Flameproof	★
E5	FM Explosion-proof, Dust Ignition-proof	★
I5(19)	FM Intrinsically Safe, Nonincendive	★
IE	FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
K5	FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2	★
C6	CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2	★
E6	CSA Explosion-proof, Dust Ignition-proof, Division 2	★
I6(13)	CSA Intrinsic Safety	★
K6	CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)	★
E7	IECEx Flameproof, Dust Ignition-proof	★
I7	IECEx Intrinsic Safety	★
N7	IECEx Type n Certification	★
K7	IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7, and E7)	★
E2	INMETRO Flameproof	★
I2	INMETRO Intrinsic Safety	★
IB	INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
K2	INMETRO Flameproof, Intrinsic Safety	★
E3	China Flameproof	★
I3	China Intrinsic Safety	★
N3	China Type n	★
EM	Technical Regulations Customs Union (EAC) Flameproof	★

IM	Technical Regulations Customs Union (EAC) Intrinsic Safety	★
KM	Technical Regulations Customs Union (EAC) Flameproof and Intrinsic Safety	★
KB	FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of K5 and C6)	★
KD	FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8)	★
EP(20)	Republic of Korea Flameproof
IP(21)	Republic of Korea Intrinsic Safety
KP(22)	Republic of Korea Flameproof, Intrinsic Safety
Drinking water approval(23)
DW	NSF drinking water approval	★
Shipboard approvals(10)
SBS	American Bureau of Shipping	★
SBV(24)	Bureau Veritas (BV)	★
SDN	Det Norske Veritas	★
SLL(24)	Lloyds Register (LR)	★
Custody transfer
C5	Measurement Canada Accuracy Approval (limited availability depending on transmitter type and range. Contact an Emerson representative.)	★
Calibration certification
Q4	Calibration certificate	★
QG	Calibration certificate and GOST verification certificate	★
QP	Calibration certification and tamper evident seal	★
Material traceability certification
Q8	Material traceability certification per EN 10204 3.1	★
Quality certification for safety(25)
QS	Prior-use certificate of FMEDA Data	★
QT	Safety certified to IEC 61508 with certificate of FMEDA	★
Configuration buttons
D4(25)	Analog zero and span	★
DZ(26)	Digital zero trim	★
Display and interface options
M4(27)	LCD display with LOI	★
M5	LCD display	★
Wireless stainless steel sensor module(13)
WSM	Wireless SST sensor module	★
Conduit plug(10)(28)
DO	316 SST conduit plug	★

Transient terminal block(10)(29)
T1	Transient protection terminal block	★
Software configuration(26)
C1	Custom Software Configuration (For wired, see the Rosemount 3051 Configuration Data Sheet. For wireless, see the Rosemount 3051 Wireless Configuration Data Sheet.)	★
Low power output
C2	0.8–3.2 Vdc output with digital signal based on HART Protocol (available with output code M only)
Alarm levels(25)
C4(30)	Analog output levels compliant with NAMUR recommendation NE 43, alarm high	★
CN(30)	Analog output levels compliant with NAMUR recommendation NE 43, low alarm	★
CR	Custom alarm and saturation signal levels, high alarm (requires C1 and Rosemount 3051 Configuration Data Sheet)	★
CS	Custom alarm and saturation signal levels, low alarm (requires C1 and Rosemount 3051 Configuration Data Sheet)	★
CT	Rosemount standard low alarm	★
Pressure testing
P1	Hydrostatic testing with certificate
Cleaning process area(31)
P2	Cleaning for special service
P3	Cleaning for <1 ppm chlorine/fluorine
Ground screw(10)(32)
V5	External ground screw assembly	★
Surface finish
Q16	Surface finish certification for sanitary remote seals	★
Toolkit total system performance reports
QZ	Remote seal system performance calculation report	★
Conduit electrical connector(10)
GE	M12, 4-pin, male connector (eurofast)	★
GM	A size mini, 4-pin, male connector (minifast)	★
NACE certificate(33)
Q15	Certificate of Compliance to NACE MR0175/ISO15156 for wetted materials	★
Q25	Certificate of Compliance to NACE MR0103 for wetted materials	★
Cold temperature(34)
BR5(35)	–58 °F (–50 °C) cold temperature	★
BR6(36)	–76 °F (–60 °C) cold temperature	★
HART Revision configuration (requires HART output code A)(4)
HR5	Configured for HART Revision 5	★

HR7	Configured for HART Revision 7									★
Typical model number: 3051T		G	5	F	2A	2	1	A	B4
